8-28 | CHASSIS ELECTRICAL
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

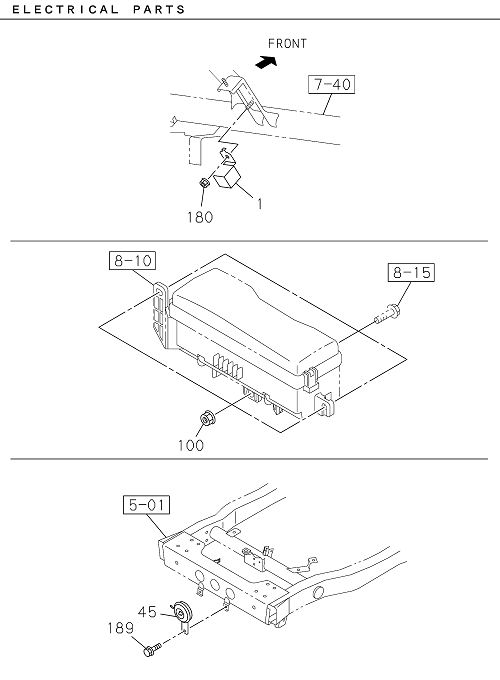

| 180 | I0-91180 106-0 | NUT FLASHER UNIT | 1 | 2204- | TRAGA | M6 FLANGE | ||
| 531 | I8-97173 037-1 | RELAY MAIN | 1 | 2204- | TRAGA | 12V | ||
| 1 | I7-43700 235-A | UNIT FLASHER | 1 | 2204- | TRAGA | |||
| 100 | I7-05108 010-A | NUT RELAY BOX COVER | 3 | 2204- | TRAGA | M8 FLANGE | ||
| 11 | I8-97173 037-1 | RELAY DIMMER | 1 | 2204- | TRAGA | 12V | ||
| 11 | I6-97173 037-0 | RELAY DIMMER | 1 | 2204- | TRAGA | (IADG) 12V | ||
| 189 | I8-98141 255-0 | BOLT HORN | 1 | 2204- | TRAGA | M8X18.5 W/PL WASHER | ||
| 45 | I8-97696 485-A | HORN LOW NOTE | 1 | 2204- | TRAGA | |||
| 666 | I6-97173 037-0 | RELAY STARTER | 1 | 2204- | TRAGA | (IADG) 12V | ||
| 531 | I6-97173 037-0 | RELAY MAIN | 1 | 2204- | TRAGA | (IADG) 12V | ||
| 666 | I8-97173 037-1 | RELAY STARTER | 1 | 2204- | TRAGA | 12V |
