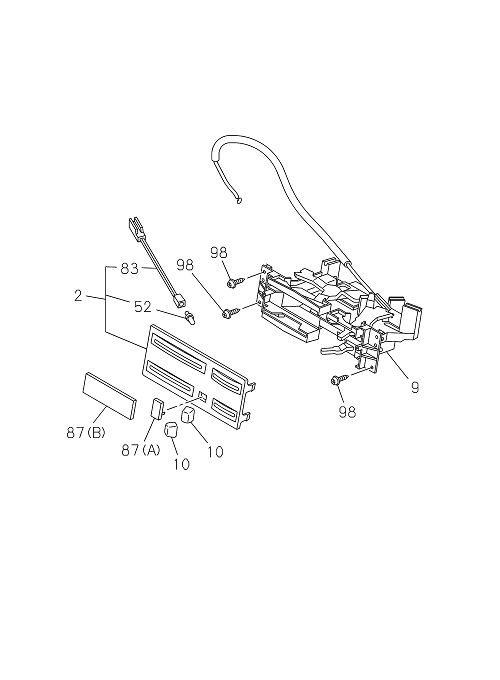

8-65 | CONTROL LEVER HEATER AND AIR CON
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 52 | I8-97100 290-0 | BULB PANEL ILLUMINATION | 1 | 2204- | TRAGA | 14V 140MA | ||
| 87 | I8-97065 448-2 | CAP A/C SWITCH | 1 | 2204- | TRAGA | (A) | ||
| 098 | I0-72180 516-0 | SCREW; CONT PANEL | 3 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 002 | I8-97048 330-2 | PANEL ASM; CONT,ILLUMINATION | 1 | 2204- | TRAGA | |||
| 10 | I8-97114 430-0 | KNOB CONT LEVER | 2 | 2204- | TRAGA | |||
| 010 | I8-97114 430-0 | KNOB; CONT LEVER | 2 | 2204- | TRAGA | |||
| 9 | I8-98259 355-0 | LEVER ASM HTR & A/C CONT | 1 | 2204- | TRAGA | |||
| 087 | I8-97071 228-0 | CAP; A/C SWITCH | 1 | 2204- | TRAGA | (B) | ||
| 009 | I8-98259 355-0 | LEVER ASM; HTR & A/C CONT | 1 | 2204- | TRAGA | |||
| 83 | I8-97308 566-0 | HARNESS CONT PANEL | 1 | 2204- | TRAGA | |||
| 087 | I8-97065 448-2 | CAP; A/C SWITCH | 1 | 2204- | TRAGA | (A) | ||
| 2 | I8-97048 330-2 | PANEL ASM CONT,ILLUMINATION | 1 | 2204- | TRAGA | |||
| 98 | I0-72180 516-0 | SCREW CONT PANEL | 3 | 2204- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 87 | I8-97071 228-0 | CAP A/C SWITCH | 1 | 2204- | TRAGA | (B) | ||
| 083 | I8-97308 566-0 | HARNESS; CONT PANEL | 1 | 2204- | TRAGA | |||
| 052 | I8-97100 290-0 | BULB; PANEL ILLUMINATION | 1 | 2204- | TRAGA | 14V 140MA |
