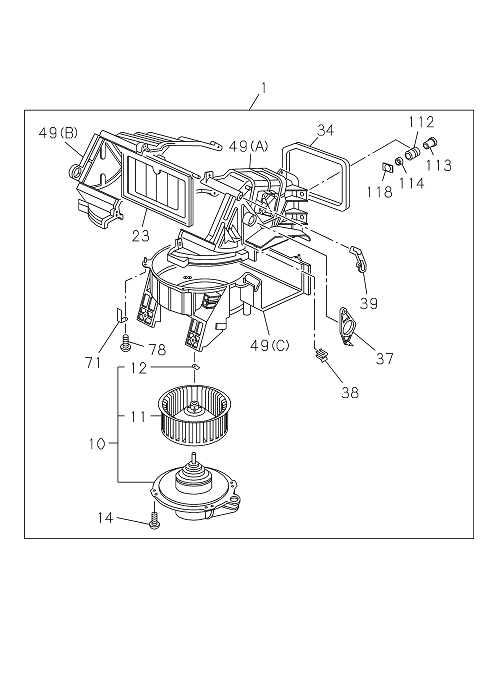

8-73 | BLOWER UNIT
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 118 | I8-97107 979-0 | BRACKET BUSHING | 2 | 2204- | TRAGA | |||
| 12 | I8-94243 962-0 | RING SNAP,FAN MOTOR | 1 | 2204- | TRAGA | |||
| 49 | I8-97089 698-4 | CASE BLOWER UNIT | 1 | 2204- | TRAGA | (B) | ||
| 23 | I8-97096 640-3 | SHUTTER BLOWER UNIT | 1 | 2204- | TRAGA | |||
| 38 | I8-94337 654-0 | CLIP BLOWER UNIT | 1 | 2204- | TRAGA | |||
| 49 | I8-97089 699-3 | CASE BLOWER UNIT | 1 | 2204- | TRAGA | (A) | ||
| 34 | I8-97085 612-1 | LINING BLOWER UNIT | 1 | 2204- | TRAGA | |||
| 39 | I8-97085 609-3 | LEVER SHUTTER,BLOWER UNIT | 1 | 2204- | TRAGA | |||
| 14 | I9-09829 324-1 | SCREW COVER TO CASE | 4 | 2204- | TRAGA | M5X20 | ||
| 49 | I8-97085 606-0 | CASE BLOWER UNIT | 1 | 2204- | TRAGA | (C) | ||
| 1 | I8-97288 164-0 | BLOWER ASM | 1 | 2204- | TRAGA | |||
| 11 | I8-97089 700-0 | IMPELLER FAN MOTOR | 1 | 2204- | TRAGA | |||
| 37 | I8-97085 610-2 | LEVER MODE LEVER | 1 | 2204- | TRAGA | |||
| 112 | I8-97096 641-0 | ISOLATOR CASE | 2 | 2204- | TRAGA | |||
| 113 | I8-97096 642-0 | BUSHING ISOLATOR | 2 | 2204- | TRAGA | |||
| 78 | I9-09829 324-1 | SCREW CASE TO CASE | 8 | 2204- | TRAGA | M4X16 | ||
| 71 | I8-94158 260-0 | CLIP HARNESS | 1 | 2204- | TRAGA | |||
| 10 | I8-97211 952-0 | MOTOR ASM FAN,BLOWER UNIT | 1 | 2204- | TRAGA | |||
| 114 | I0-91180 208-0 | NUT ISOLATOR | 2 | 2204- | TRAGA | M8 FLANGE |
