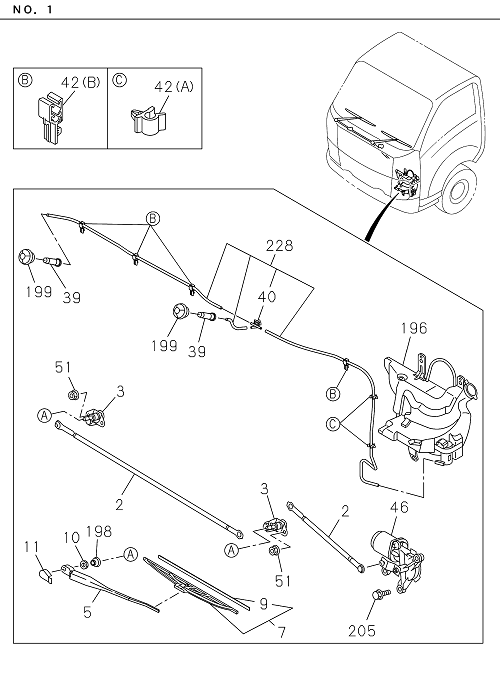

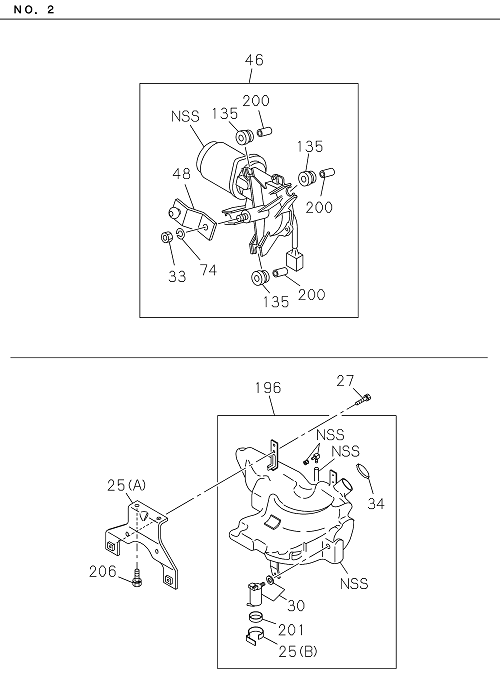

8-80 | WINDSHIELD WIPER AND WASHER
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 201 | I8-97352 826-0 | LINING; WIPER MOTOR | 1 | 2204- | TRAGA | |||
| 9 | I8-97495 739-0 | RUBBER FRT WIPER BLADE | 1 | 2204- | R | TRAGA | ||
| 002 | I8-97495 745-0 | LINK; FRT WIPER | 1 | 2204- | TRAGA | PASSENGER SIDE | ||
| 3 | I8-97495 743-0 | PIVOT ASM FRT WIPER | 1 | 2204- | TRAGA | PASSENGER SIDE | ||
| 007 | I6-97495 748-0 | BLADE; WIPER | 1 | 2204- | R | TRAGA | (IADG) | |
| 42 | I8-94279 819-0 | CLIP WASHER HOSE | 4 | 2204- | TRAGA | (B) | ||
| 25 | I8-97855 023-2 | BRACKET WASHER TANK | 1 | 2204- | TRAGA | (A) | ||
| 030 | I8-97855 138-0 | MOTOR ASM; FRT WASHER TANK | 1 | 2204- | TRAGA | |||
| 009 | I8-97495 739-0 | RUBBER; FRT WIPER BLADE | 1 | 2204- | R | TRAGA | ||
| 33 | I8-97855 157-0 | NUT MOTOR TO ARM | 1 | 2204- | TRAGA | M8 | ||
| 198 | I8-98032 683-0 | COVER; PIVOT,WIPER | 2 | 2204- | TRAGA | |||
| 199 | I8-98079 030-0 | COVER; NOZZLE,WIPER | 2 | 2204- | TRAGA | |||
| 2 | I8-97495 745-0 | LINK FRT WIPER | 1 | 2204- | TRAGA | PASSENGER SIDE | ||
| 228 | I8-98259 498-A | HOSE ASM WASHER | 1 | 2204- | TRAGA | |||
| 51 | I8-97581 233-0 | NUT WIPER MOTOR LINK | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 7 | I6-97495 749-0 | BLADE WIPER | 1 | 2204- | L | TRAGA | (IADG) | |
| 48 | I8-97218 924-0 | ARM WIPER MOTOR | 1 | 2204- | TRAGA | |||
| 007 | I8-97495 749-0 | BLADE; WIPER | 1 | 2204- | L | TRAGA | ||
| 135 | I8-97855 159-0 | RUBBER; CUSHION,WIPER MOTOR | 3 | 2204- | TRAGA | |||
| 205 | I8-94148 420-0 | BOLT WIPER MOTOR | 3 | 2204- | TRAGA | M6X28 W/PL WASHER | ||
| 27 | I8-94310 730-0 | BOLT WASHER TANK | 3 | 2204- | TRAGA | M8X16 W/LK&PL WASHER | ||
| 5 | I8-97495 741-0 | ARM WIPER | 1 | 2204- | R | TRAGA | ||
| 200 | I8-97855 160-0 | COLLAR; WIPER MOTOR | 3 | 2204- | TRAGA | |||
| 003 | I8-97495 743-0 | PIVOT ASM; FRT WIPER | 1 | 2204- | TRAGA | PASSENGER SIDE | ||
| 002 | I8-97495 746-0 | LINK; FRT WIPER | 1 | 2204- | TRAGA | DRIVER SIDE | ||
| 39 | I8-98029 139-1 | NOZZLE WINDSHIELD WASHER | 2 | 2204- | TRAGA | |||
| 74 | I8-97162 101-0 | WASHER ARM TO MOTOR | 1 | 2204- | TRAGA | ID=8 | ||
| 3 | I8-97495 744-0 | PIVOT ASM FRT WIPER | 1 | 2204- | TRAGA | DRIVER SIDE | ||
| 200 | I8-97855 160-0 | COLLAR WIPER MOTOR | 3 | 2204- | TRAGA | |||
| 135 | I8-97855 159-0 | RUBBER CUSHION,WIPER MOTOR | 3 | 2204- | TRAGA | |||
| 46 | I8-97361 373-3 | MOTOR ASM FRT WINDSHIELD WIPER | 1 | 2204- | TRAGA | |||
| 199 | I8-98079 030-0 | COVER NOZZLE,WIPER | 2 | 2204- | TRAGA | |||
| 005 | I8-97495 742-0 | ARM; WIPER | 1 | 2204- | L | TRAGA | ||
| 2 | I8-97495 746-0 | LINK FRT WIPER | 1 | 2204- | TRAGA | DRIVER SIDE | ||
| 40 | I8-97495 731-A | JOINT WASHER HOSE | 1 | 2204- | TRAGA | |||
| 025 | I8-97855 023-2 | BRACKET; WASHER TANK | 1 | 2204- | TRAGA | (A) | ||
| 30 | I8-97855 138-0 | MOTOR ASM FRT WASHER TANK | 1 | 2204- | TRAGA | |||
| 7 | I8-97495 748-0 | BLADE WIPER | 1 | 2204- | R | TRAGA | ||
| 34 | I8-97855 140-0 | CAP WASHER TANK | 1 | 2204- | TRAGA | |||
| 206 | I0-28650 616-0 | BOLT; BRKT,WASHER TANK | 2 | 2204- | TRAGA | M6X16 FLANGE | ||
| 206 | I0-28650 616-0 | BOLT BRKT,WASHER TANK | 2 | 2204- | TRAGA | M6X16 FLANGE | ||
| 7 | I6-97495 748-0 | BLADE WIPER | 1 | 2204- | R | TRAGA | (IADG) | |
| 007 | I6-97495 749-0 | BLADE; WIPER | 1 | 2204- | L | TRAGA | (IADG) | |
| 033 | I8-97855 157-0 | NUT; MOTOR TO ARM | 1 | 2204- | TRAGA | M8 | ||
| 5 | I8-97495 742-0 | ARM WIPER | 1 | 2204- | L | TRAGA | ||
| 048 | I8-97218 924-0 | ARM; WIPER MOTOR | 1 | 2204- | TRAGA | |||
| 228 | I8-98259 498-A | HOSE ASM; WASHER | 1 | 2204- | TRAGA | |||
| 046 | I8-97361 373-3 | MOTOR ASM; FRT WINDSHIELD WIPER | 1 | 2204- | TRAGA | |||
| 25 | I8-97855 226-0 | BRACKET WASHER TANK | 1 | 2204- | TRAGA | (B) | ||
| 198 | I8-98032 683-0 | COVER PIVOT,WIPER | 2 | 2204- | TRAGA | |||
| 040 | I8-97495 731-A | JOINT; WASHER HOSE | 1 | 2204- | TRAGA | |||
| 205 | I8-94148 420-0 | BOLT; WIPER MOTOR | 3 | 2204- | TRAGA | M6X28 W/PL WASHER | ||
| 042 | I8-94279 819-0 | CLIP; WASHER HOSE | 4 | 2204- | TRAGA | (B) | ||
| 025 | I8-97855 226-0 | BRACKET; WASHER TANK | 1 | 2204- | TRAGA | (B) | ||
| 201 | I8-97352 826-0 | LINING WIPER MOTOR | 1 | 2204- | TRAGA | |||
| 009 | I8-97495 740-0 | RUBBER; FRT WIPER BLADE | 1 | 2204- | L | TRAGA | ||
| 074 | I8-97162 101-0 | WASHER; ARM TO MOTOR | 1 | 2204- | TRAGA | ID=8 | ||
| 027 | I8-94310 730-0 | BOLT; WASHER TANK | 3 | 2204- | TRAGA | M8X16 W/LK&PL WASHER | ||
| 11 | I8-94282 851-0 | COVER WIPER ARM | 2 | 2204- | TRAGA | BLACK | ||
| 010 | I0-91110 508-0 | NUT; WIPER ARM TO WIPER PIVOT | 2 | 2204- | TRAGA | M8 | ||
| 7 | I8-97495 749-0 | BLADE WIPER | 1 | 2204- | L | TRAGA | ||
| 034 | I8-97855 140-0 | CAP; WASHER TANK | 1 | 2204- | TRAGA | |||
| 051 | I8-97581 233-0 | NUT; WIPER MOTOR LINK | 4 | 2204- | TRAGA | M8 FLANGE | ||
| 9 | I8-97495 740-0 | RUBBER FRT WIPER BLADE | 1 | 2204- | L | TRAGA | ||
| 196 | I8-97855 016-A | TANK; WASHER | 1 | 2204- | TRAGA | |||
| 007 | I8-97495 748-0 | BLADE; WIPER | 1 | 2204- | R | TRAGA | ||
| 039 | I8-98029 139-1 | NOZZLE; WINDSHIELD WASHER | 2 | 2204- | TRAGA | |||
| 42 | I8-97134 154-0 | CLIP WASHER HOSE | 2 | 2204- | TRAGA | (A) | ||
| 005 | I8-97495 741-0 | ARM; WIPER | 1 | 2204- | R | TRAGA | ||
| 011 | I8-94282 851-0 | COVER; WIPER ARM | 2 | 2204- | TRAGA | BLACK | ||
| 196 | I8-97855 016-A | TANK WASHER | 1 | 2204- | TRAGA | |||
| 003 | I8-97495 744-0 | PIVOT ASM; FRT WIPER | 1 | 2204- | TRAGA | DRIVER SIDE | ||
| 042 | I8-97134 154-0 | CLIP; WASHER HOSE | 2 | 2204- | TRAGA | (A) | ||
| 10 | I0-91110 508-0 | NUT WIPER ARM TO WIPER PIVOT | 2 | 2204- | TRAGA | M8 |
