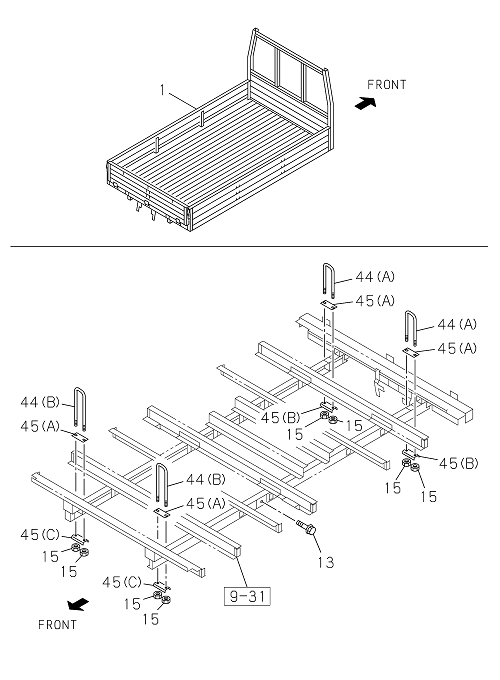

9-30 | REAR BODY ASM AND MOUNTING
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 44 | I8-98306 371-A | U-BOLT FRAME TO RR BODY | 2 | 2204- | TRAGA | (A) TRAGA FLAT BED | ||
| 1 | I8-97469 499-B | BODY ASM REAR | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 45 | I8-98348 659-A | PLATE U-BOLT | 2 | 2204- | TRAGA | (C) TRAGA FLAT BED | ||
| 045 | I8-98348 659-A | PLATE; U-BOLT | 2 | 2204- | TRAGA | (C) TRAGA FLAT BED | ||
| 045 | I8-98306 457-A | PLATE; U-BOLT | 2 | 2204- | TRAGA | (B) TRAGA FLAT BED | ||
| 013 | I8-98090 287-1 | BOLT; RR BODY MTG | 2 | 2204- | TRAGA | M12X42 FLANGE; TRAGA FLAT BED | ||
| 15 | I9-09130 414-0 | NUT RR BODY MTG | 8 | 2204- | TRAGA | M14 TRAGA FLAT BED | ||
| 044 | I8-98308 490-A | U-BOLT; FRAME TO RR BODY | 2 | 2204- | TRAGA | (B) TRAGA FLAT BED | ||
| 13 | I8-98090 287-1 | BOLT RR BODY MTG | 2 | 2204- | TRAGA | M12X42 FLANGE TRAGA FLAT BED | ||
| 001 | I8-97469 499-B | BODY ASM; REAR | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 45 | I8-98306 455-A | PLATE U-BOLT | 4 | 2204- | TRAGA | (A) TRAGA FLAT BED | ||
| 045 | I8-98306 455-A | PLATE; U-BOLT | 4 | 2204- | TRAGA | (A) TRAGA FLAT BED | ||
| 044 | I8-98306 371-A | U-BOLT; FRAME TO RR BODY | 2 | 2204- | TRAGA | (A) TRAGA FLAT BED | ||
| 44 | I8-98308 490-A | U-BOLT FRAME TO RR BODY | 2 | 2204- | TRAGA | (B) TRAGA FLAT BED | ||
| 015 | I9-09130 414-0 | NUT; RR BODY MTG | 8 | 2204- | TRAGA | M14; TRAGA FLAT BED | ||
| 45 | I8-98306 457-A | PLATE U-BOLT | 2 | 2204- | TRAGA | (B) TRAGA FLAT BED |
