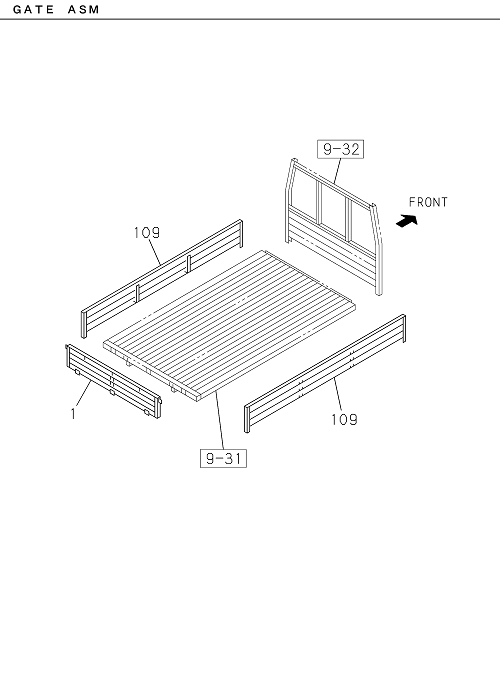

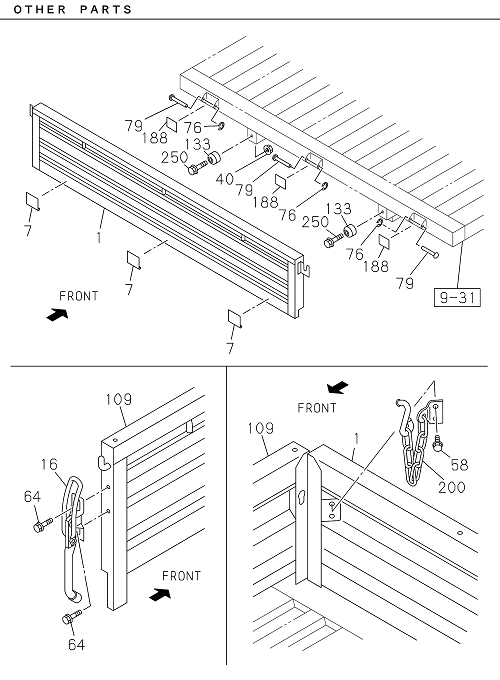

9-33 | REAR BODY GATE AND SIDE GUARD
TRAGA
TRAGA E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 250 | I8-94197 198-1 | BOLT STOPPER | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 133 | I8-97648 920-A | STOPPER TAIL GATE LINK,RR BODY | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 007 | I8-98283 002-A | HINGE ASM; RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 076 | I0-91805 506-0 | RING; SNAP,GATE HINGE PIN | 3 | 2204- | TRAGA | ID=6; TRAGA FLAT BED | ||
| 200 | I8-97558 130-A | CHAIN; REAR GATE | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 016 | I8-98258 034-A | LOCK; RR GATE | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 109 | I8-98258 030-A | PANEL; SIDE | 1 | 2204- | L | TRAGA | TRAGA FLAT BED | |
| 109 | I8-98258 030-A | PANEL SIDE | 1 | 2204- | L | TRAGA | TRAGA FLAT BED | |
| 188 | I8-98283 004-A | PLATE; HINGE UPR,RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 76 | I0-91805 506-0 | RING SNAP,GATE HINGE PIN | 3 | 2204- | TRAGA | ID=6 TRAGA FLAT BED | ||
| 109 | I8-98258 029-A | PANEL; SIDE | 1 | 2204- | R | TRAGA | TRAGA FLAT BED | |
| 79 | I8-98258 245-A | PIN SIDE & RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 64 | I0-28050 816-0 | BOLT LOCK | 4 | 2204- | TRAGA | M8X16 FLANGE | ||
| 7 | I8-98283 002-A | HINGE ASM RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 079 | I8-98258 245-A | PIN; SIDE & RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 58 | I0-28050 816-0 | BOLT CHAIN TO RR BODY | 4 | 2204- | TRAGA | M8X16 FLANGE | ||
| 200 | I8-97558 130-A | CHAIN REAR GATE | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 016 | I8-97654 568-A | LOCK; RR GATE | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 133 | I8-97648 920-A | STOPPER; TAIL GATE LINK,RR BODY | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 40 | I9-09114 086-0 | NUT STOPPER RUBBER | 2 | 2204- | TRAGA | M6 TRAGA FLAT BED | ||
| 109 | I8-98258 029-A | PANEL SIDE | 1 | 2204- | R | TRAGA | TRAGA FLAT BED | |
| 188 | I8-98283 004-A | PLATE HINGE UPR,RR GATE | 3 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 1 | I8-98258 033-A | GATE ASM RR | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 001 | I8-98258 033-A | GATE ASM; RR | 1 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 250 | I8-94197 198-1 | BOLT; STOPPER | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 16 | I8-97654 568-A | LOCK RR GATE | 2 | 2204- | TRAGA | TRAGA FLAT BED | ||
| 064 | I0-28050 816-0 | BOLT; LOCK | 4 | 2204- | TRAGA | M8X16 FLANGE | ||
| 058 | I0-28050 816-0 | BOLT; CHAIN TO RR BODY | 4 | 2204- | TRAGA | M8X16 FLANGE | ||
| 040 | I9-09114 086-0 | NUT; STOPPER RUBBER | 2 | 2204- | TRAGA | M6; TRAGA FLAT BED |
