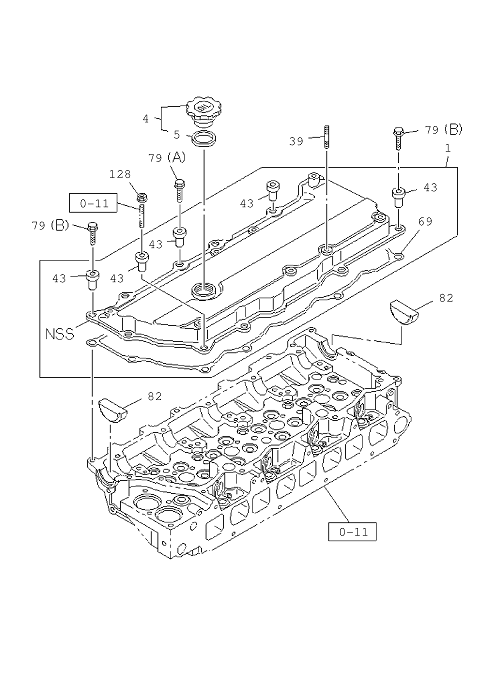

0-10 | CYLINDER HEAD COVER
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97331 361-2 | COVER; CYL HD | 1 | 1111-2112 | A | |||
| 82 | I8-98163 813-0 | PLUG; CYL HD COVER | 2 | 1111- | A | |||
| 39 | I0-41010 625-0 | STUD; COVER,HD | 1 | 1111-1111 | A | M6X25 L=34 | ||
| 1 | I8-97846 577-0 | COVER; CYL HD | 1 | 2201- | A | |||
| 4 | I8-94133 207-5 | CAP; OIL FILLER | 1 | 1111- | A | |||
| 79 | I0-28650 835-0 | BOLT; COVER | 2 | 1111- | A | (A) M8X35 FLANGE | ||
| 79 | I1-09044 072-1 | BOLT; COVER | 7 | 1111- | A | (B) M8X65 FLANGE | ||
| 69 | I8-97331 359-1 | GASKET; HD TO COVER | 1 | 1111- | A | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 128 | I0-91180 108-0 | NUT; COVER,CYL HEAD COVER | 2 | 1111- | A | M8 FLANGE | ||
| 5 | I8-94123 623-1 | GASKET; OIL FILLER | 1 | 1111- | A | ID=32OD=40 | ||
| 39 | I0-41010 620-0 | STUD; COVER,HD | 2 | 1111- | A | M6X20 L=28 | ||
| 43 | I8-94395 684-0 | RUBBER; MTG,HD COVER,OUTER | 11 | 1111- | A |
