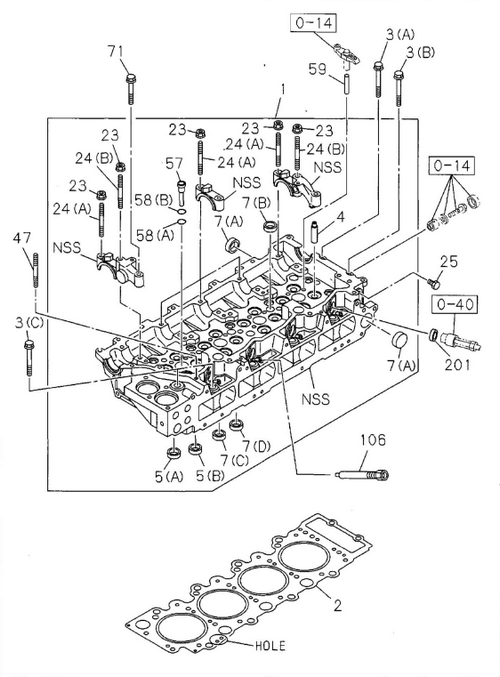

0-11 | CYLINDER HEAD
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I8-94322 512-2 | STUD; CM/SHF BRKT | 2 | 1111- | A | (B) M8X54 L=79 | ||
| 2 | I8-98288 502-0 | GASKET; CYL HD | 1 | 1506- | A | T=1.52 5 1-HOLE | ||
| 106 | I8-94392 236-0 | PLUG; GLOW PLUG HOLE | 4 | 1111- | A | |||
| 2 | I8-98288 503-0 | GASKET; CYL HD | 1 | 1111-1505 | A | T=1.575 2-HOLE | ||
| 25 | I8-98003 416-0 | PLUG; CYL HD | 1 | 1111- | A | M8X10 | ||
| 250 | I8-94393 196-0 | CAP | 3 | 1111- | A | |||
| 182 | I0-28050 812-A | BOLT; CASE | 2 | 1111- | A | (A) M8X12 FLANGE | ||
| 201 | I1-09639 034-0 | GASKET; SLEEVE,INJ PUMP | 4 | 1111- | A | OD=3 0 | ||
| 248 | I8-94390 858-1 | CONNECTOR | 1 | 1111- | A | |||
| 7 | I8-97096 821-0 | CUP; SEALING,CYL HEAD | 5 | 1111- | A | (A) OD=32 | ||
| 23 | I0-91180 208-0 | NUT; CAM BRKT | 10 | 1111- | A | M8 FLANGE IDN | ||
| 3 | I8-94399 554-0 | BOLT; CYL HD TO BLOCK | 1 | 1111- | A | (A) M10X73 | ||
| 7 | I5-11129 006-0 | CUP; SEALING,CYL HEAD | 5 | 1111- | A | (C) OD=16 | ||
| 2 | I8-98288 503-0 | GASKET; CYL HD | 1 | 1506- | A | T=1.575 2-HOLE | ||
| 47 | I0-49140 860-0 | STUD; CYL HD | 2 | 1111- | A | M8X60 L=72 | ||
| 5 | I8-98028 874-0 | SEAT; VLV INSERT | 8 | 1111- | A | (A) INLET ID=32 OD=3 8 | ||
| 3 | I8-94399 555-0 | BOLT; CYL HD TO BLOCK | 1 | 1111- | A | (B) M10X43 | ||
| 3 | I8-97077 638-0 | BOLT; CYL HD TO BLOCK | 18 | 1111-1503 | A | (C) M14X115 W/FLANGE | ||
| 2 | I8-98288 502-0 | GASKET; CYL HD | 1 | 1111-1505 | A | T=1.52 5 1-HOLE | ||
| 266 | I8-98018 462-0 | SLEEVE ASM; NOZZLE HOLDER | 4 | 1111- | A | |||
| 272 | I8-94395 627-1 | BRACKET; CAM,RR | 1 | 1111- | A | |||
| 122 | I8-97331 360-1 | GASKET; COVER | 1 | 1111- | A | |||
| 59 | I8-97381 603-1 | GUIDE; BRIDGE | 8 | 1111- | A | |||
| 7 | I1-09600 016-0 | CUP; SEALING,CYL HEAD | 4 | 1111- | A | (B) OD=2 5 | ||
| 2 | I8-98288 501-0 | GASKET; CYL HD | 1 | 1506- | A | T=1 .475 NON-HOLE | ||
| 24 | I8-94322 513-2 | STUD; CM/SHF BRKT | 8 | 1111- | A | (A) M8X41 L= 6 6 | ||
| 13 | I0-28151 020-0 | BOLT; HANGER | 2 | 1111- | A | M10X2 0 FLANGE | ||
| 1 | I8-98170 620-0 | HEAD ASM; CYL | 1 | 1111- | A | |||
| 7 | I9-11129 128-0 | CUP; SEALING,CYL HEAD | 7 | 1111- | A | (D) OD=2 0 | ||
| 247 | I8-97331 362-1 | CASE; CYL HEAD,C/H COVER | 1 | 1111- | A | |||
| 5 | I8-98028 875-0 | SEAT; VLV INSERT | 8 | 1111- | A | (B) EXHAUST ID=31 OD=3 8 | ||
| 4 | I8-97376 719-2 | GUIDE; VLV | 16 | 1111- | A | L=57 | ||
| 58 | I8-97604 916-0 | GASKET; SLEEVE,NOZZLE HOLDER | 4 | 1111- | A | ID=26.4 | ||
| 182 | I0-28050 845-0 | BOLT; CASE | 4 | 1111- | A | (B) M8X45 FLANGE | ||
| 14 | I8-94397 286-0 | STUD; EXH MANIF | 2 | 1111- | A | M10X60 L=75 | ||
| 2 | I8-98288 501-0 | GASKET; CYL HD | 1 | 1111-1505 | A | T=1 .475 NON-HOLE | ||
| 249 | I8-94391 310-0 | GASKET; CONNECTOR | 1 | 1111- | A | |||
| 71 | I0-28050 835-0 | BOLT; CAM BRKT | 2 | 1111- | A | M8X3 5 FLANGE | ||
| 3 | I8-98260 005-0 | BOLT; CYL HD TO BLOCK | 18 | 1504- | A | (C) M14X115 W/FLANGE | ||
| 270 | I8-94395 626-2 | BRACKET; CAM,FRONT | 1 | 1111- | A | |||
| 168 | I8-97383 001-1 | HANGER; ENG,FRT | 1 | 1111- | A |
