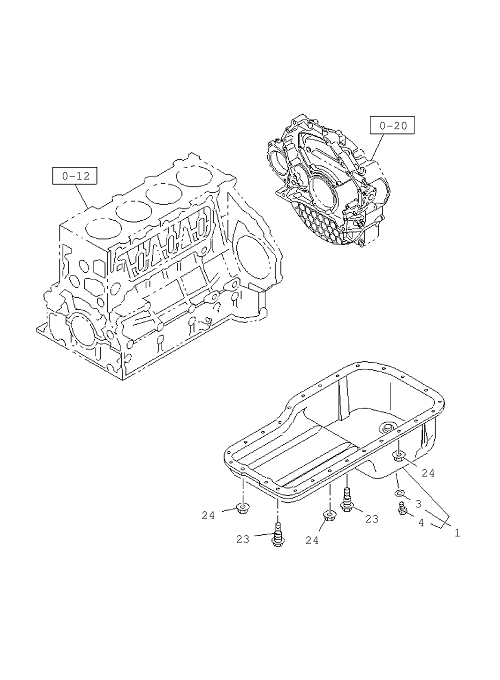

0-13 | OIL PAN AND LEVEL GAUGE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 4 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 1111- | A | M14X14 IDN | ||
| 2 | I8-98245 516-0 | GAUGE; OIL LEVEL | 1 | 1111-1812 | A | |||
| 193 | I1-09707 158-0 | CLIP; HOSE,GUIDE TUBE | 2 | 1111- | A | ID=17 | ||
| 192 | I8-97620 319-A | HOSE; GUIDE TUBE | 1 | 1111- | A | |||
| 1 | I8-98191 050-0 | PAN ASM; OIL | 1 | 1111- | A | |||
| 2 | I8-97519 307-0 | GAUGE; OIL LEVEL FTR90 | 1 | 1901- | A | |||
| 10 | I0-28050 612-0 | BOLT; GUIDE TUBE | 1 | 1111- | A | (A) M6X12 FLANGE | ||
| 24 | I8-97581 234-0 | NUT; OIL PAN | 7 | 1111- | A | M8 W/LK WASHER IDN | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1111- | A | I D=14.2 OD=24 | ||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1111- | A | ID=11 | ||
| 4 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 1111- | A | M14X14 IDN | ||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1111- | A | ID=11 | ||
| 192 | I8-97620 319-A | HOSE; GUIDE TUBE | 1 | 1111- | A | |||
| 23 | I8-97047 005-0 | BOLT; OIL PAN | 18 | 1111- | A | M8X14 | ||
| 49 | I0-91180 108-0 | NUT; GUIDE TUBE | 1 | 1111- | A | M8 FLANGE | ||
| 3 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 1111- | A | I D=14.2 OD=24 | ||
| 10 | I0-28650 820-0 | BOLT; GUIDE TUBE | 1 | 1111- | A | (B) M8X20 FLANGE IDN | ||
| 8 | I8-98179 498-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1111- | A | (B) | ||
| 23 | I8-97047 004-1 | BOLT; OIL PAN | 1 | 1111- | A | M8X14 | ||
| 8 | I8-98009 115-1 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1111- | A | (A) |
