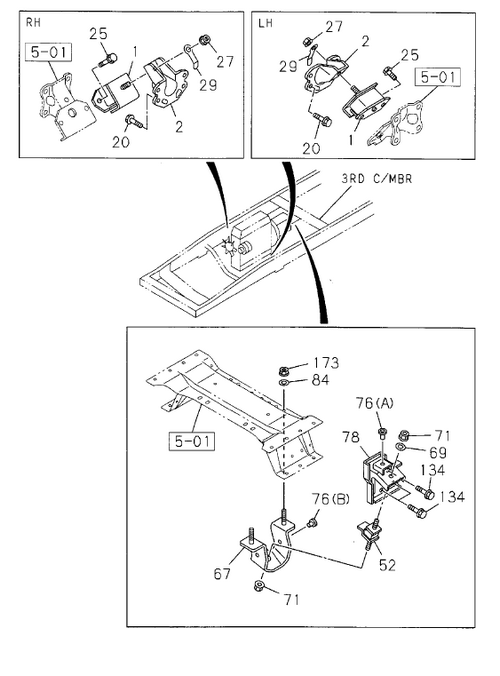

| 27 |
I0-91180 212-0 |
|
NUT; CUSHION RUBBER TO ENG FOOT |
2 |
1111- |
|
A |
M12 FLANGE |
| 67 |
I8-98055 142-0 |
|
BRACKET; SUPPORTING MTG,RR |
2 |
1111- |
|
A |
|
| 173 |
I7-05110 010-A |
|
NUT; ENG MTG RR TO FRAME |
4 |
1111- |
|
A |
M10 FLANGE |
| 71 |
I0-91180 110-0 |
|
NUT; SUPPORT RUBBER TO BRKT |
4 |
1111- |
|
A |
M10 FLANGE |
| 20 |
I0-28161 030-0 |
|
BOLT; ENG FOOT |
8 |
1111- |
|
A |
M10X30 FLANGE |
| 78 |
I8-98180 441-1 |
|
BRACKET; ENG MTG,RR |
1 |
1111- |
|
A |
|
| 25 |
I0-28651 235-0 |
|
BOLT; CUSHION RUBBER TO BRKT |
4 |
1111- |
|
A |
M12X35 FLANGE |
| 84 |
I0-91614 810-0 |
|
WASHER; PL,ENG MTG RR TO FRAME |
4 |
1111- |
|
A |
ID=10.5 OD=32 |
| 78 |
I8-98180 442-1 |
|
BRACKET; ENG MTG,RR |
1 |
1111- |
|
A |
|
| 173 |
I7-05110 010-A |
|
NUT; ENG MTG RR TO FRAME |
4 |
1111- |
|
A |
M10 FLANGE |
| 134 |
I0-28751 435-0 |
|
BOLT; SUPPORT BRKT |
8 |
1111- |
|
A |
M14X35 FLANGE |
| 69 |
I1-09503 045-0 |
|
WASHER; PL,SUPPORT RUBBER TO BRKT |
2 |
1111- |
|
A |
ID=10.5 OD=22 T=4 |
| 1 |
I1-53215 184-0 |
|
RUBBER; ENG FOOT,FRT |
2 |
1111- |
|
A |
|
| 76 |
I8-94111 904-0 |
|
STOPPER; ENG MTG RUBBER |
2 |
1111- |
|
A |
(A) |
| 52 |
I8-97039 277-0 |
|
RUBBER; CUSHION,ENG MTG,RR |
2 |
1111- |
|
A |
|
| 29 |
I8-98010 312-0 |
|
PLATE; LK,CUSHION RUBBER,FRT |
2 |
1111- |
|
A |
|
| 76 |
I8-97039 947-1 |
|
STOPPER; ENG MTG RUBBER |
4 |
1111- |
|
A |
(B) |
| 52 |
I6-97039 277-0 |
|
RUBBER; CUSHION,ENG MTG,RR |
2 |
1107- |
|
A |
|
| 2 |
I8-97376 076-1 |
|
FOOT; ENG |
2 |
1111- |
|
A |
|
