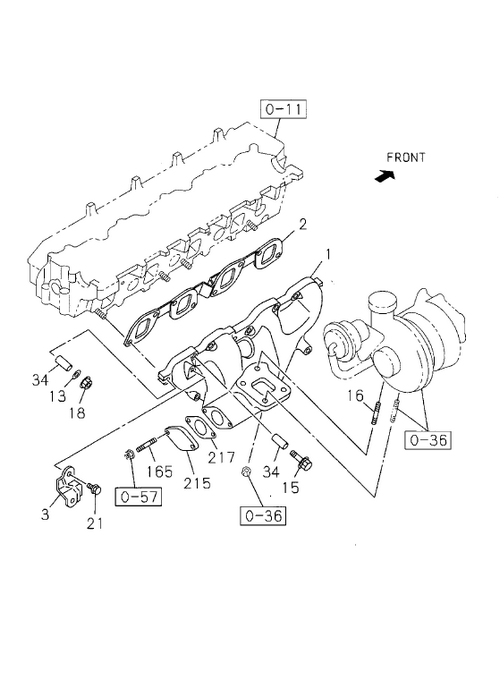

0-27 | EXHAUST MANIFOLD
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 16 | I9-04731 025-0 | STUD; EXH PIPE TO MANIF | 2 | 1111- | A | M10X25 L=40 | ||
| 215 | I8-98170 965-0 | PLATE; BOSS,EXH MANIF | 1 | 1111- | A | |||
| 1 | I8-98027 968-1 | MANIFOLD; EXHAUST | 1 | 1111- | A | |||
| 217 | I8-94340 670-0 | GASKET; EXH MANIF TO PLATE | 1 | 1111- | A | |||
| 165 | I8-94105 162-1 | STUD; EGR PIPE | 2 | 1111- | A | M8X45 L=57 | ||
| 15 | I8-97061 543-0 | BOLT; EXH MANIF | 6 | 1111- | A | M10X60 | ||
| 21 | I8-97108 669-0 | BOLT; HEAT PROTECTOR | 2 | 1111- | A | M6X12 FLANGE | ||
| 34 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 8 | 1111- | A | L=28 | ||
| 2 | I8-97146 499-A | GASKET; EXH MANIF TO HD | 1 | 1111- | A | (IADG) | ||
| 18 | I0-91110 510-0 | NUT; EXH MANIF | 2 | 1111- | A | M10 | ||
| 13 | I1-09556 015-0 | WASHER; LK,EXH MANIF | 2 | 1111- | A | T=2.2 | ||
| 2 | I8-97146 499-2 | GASKET; EXH MANIF TO HD | 1 | 1111- | A | |||
| 3 | I8-97039 753-1 | PROTECTOR; HEAT,EXH MANIF | 1 | 1111- | A |
