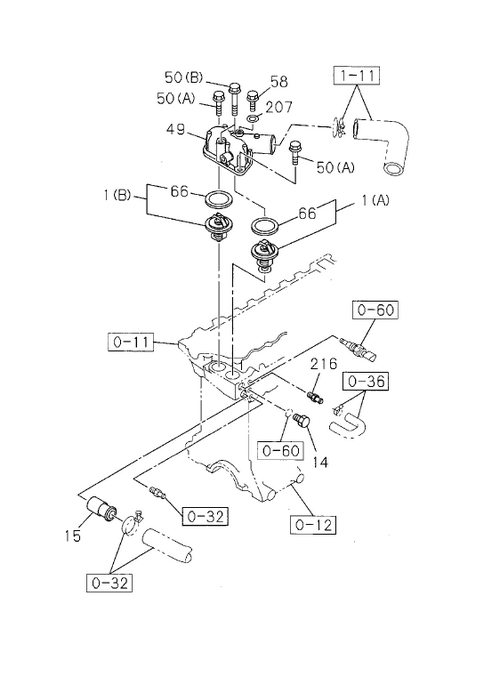

0-31 | THERMOSTAT AND HOUSING
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 50 | I0-28650 825-0 | BOLT; OUTLET PIPE | 2 | 1111- | A | (A) M8X25 FLANGE IDN | ||
| 58 | I8-97021 211-1 | PLUG; WATER OUTLET PIPE | 1 | 1111- | A | M8X16 | ||
| 14 | I9-09661 005-0 | PLUG; SW | 1 | 1111- | A | M16X8 PLUG | ||
| 1 | I8-97300 787-3 | THERMOSTAT | 1 | 1111- | A | (B) 85BC | ||
| 216 | I8-97358 699-0 | PIPE ASM; WATER,TURBOCHARGER RETURN | 1 | 1111- | A | |||
| 1 | I8-97300 790-3 | THERMOSTAT | 1 | 1111- | A | (A) 82BC | ||
| 207 | I1-09630 082-0 | GASKET | 1 | 1111- | A | ID=8.2 OD=13.2 | ||
| 1 | I8-97300 787-3 | THERMOSTAT | 1 | 1111- | A | (B) 85BC | ||
| 15 | I8-94342 574-0 | PIPE; BYPASS | 1 | 1111- | A | |||
| 49 | I8-97329 914-0 | PIPE; WATER OUTLET | 1 | 1111- | A | |||
| 66 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 1111- | A | |||
| 50 | I1-09044 072-1 | BOLT; OUTLET PIPE | 2 | 1111- | A | (B) M8X65 FLANGE | ||
| 1 | I8-97300 790-3 | THERMOSTAT | 1 | 1111- | A | (A) 82BC |
