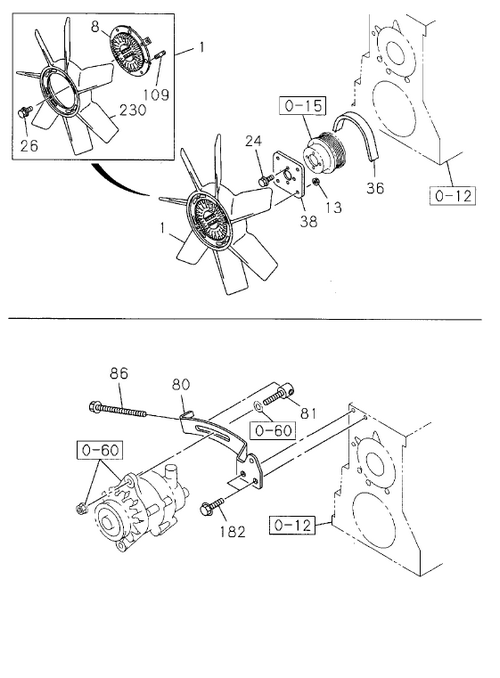

0-33 | FAN AND FAN BELT
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98190 148-1 | FAN; COOLING | 1 | 1111- | A | OD=510 | ||
| 13 | I0-91180 108-0 | NUT; COOLING FAN | 4 | 1111- | A | M8 FLANGE | ||
| 38 | I8-97108 643-0 | SPACER; FAN | 1 | 1111- | A | |||
| 230 | I8-98190 058-0 | FAN; COOLING | 1 | 1111- | A | |||
| 1 | I8-98190 148-1 | FAN; COOLING | 1 | 1111- | A | OD=510 | ||
| 81 | I1-13674 160-0 | PIECE; SLIDING | 1 | 1111- | A | M12X45 | ||
| 24 | I0-28080 818-0 | BOLT; FAN | 4 | 1111- | A | M8X18 FLANGE | ||
| 8 | I8-98019 743-0 | CLUTCH; COOLING FAN | 1 | 1111- | A | |||
| 80 | I8-98054 181-0 | PLATE; ADJ | 1 | 1111- | A | |||
| 36 | I8-98020 247-A | BELT; COOLING FAN | 1 | 1111- | A | L=1086 | ||
| 26 | I8-94389 764-0 | BOLT; FAN TO CLU | 4 | 1111- | A | |||
| 1 | I8-98190 148-1 | FAN; COOLING | 1 | 1111- | A | OD=510 | ||
| 109 | I8-97049 577-1 | STUD; FAN CLU | 4 | 1111- | A | M8X13.5 L=22 | ||
| 182 | I0-28650 835-0 | BOLT; BRKT | 2 | 1111- | A | M8X35 FLANGE | ||
| 1 | I8-98190 148-1 | FAN; COOLING | 1 | 1111- | A | OD=510 | ||
| 36 | I8-98020 247-A | BELT; COOLING FAN | 1 | 1111- | A | L=1086 | ||
| 86 | I1-09009 113-1 | BOLT; ADJ | 1 | 1111- | A | M10X135 |
