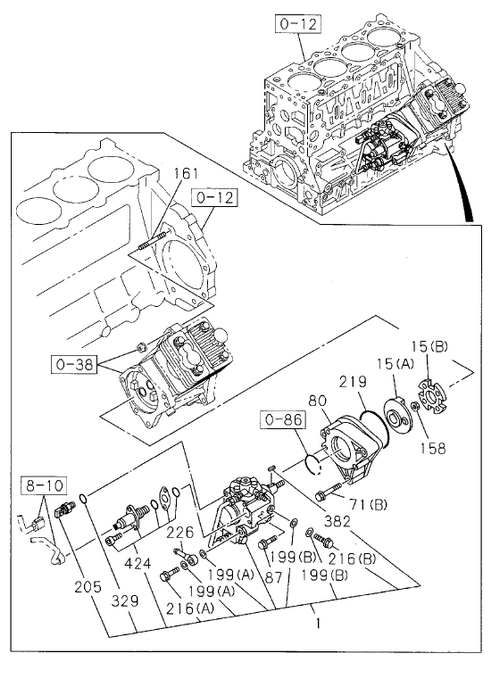

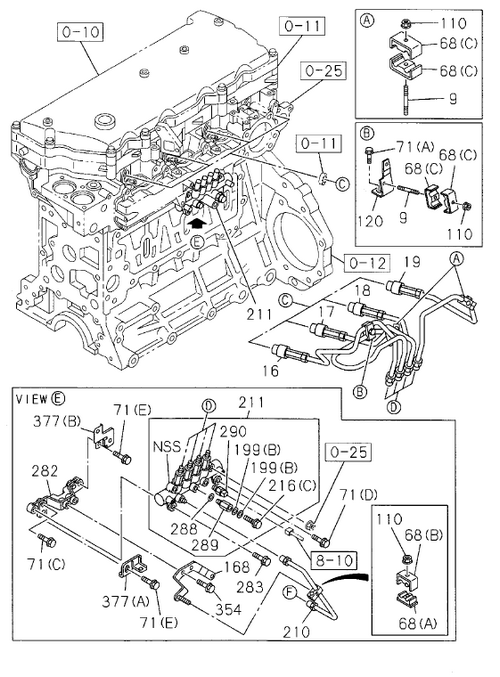

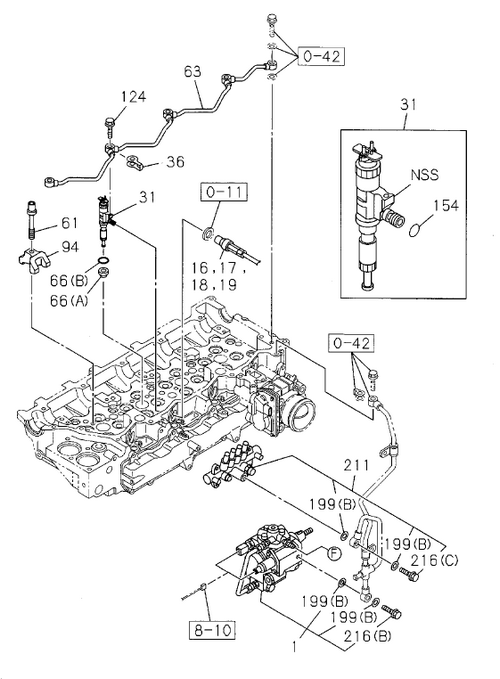

0-40 | FUEL INJECTION SYSTEM
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 17 | I8-98271 203-0 | PIPE; INJ NO.2 | 1 | 1111- | A | |||
| 71 | I0-28050 840-0 | BOLT; BRKT | 1 | 1111- | A | (C) M8X40 FLANGE | ||
| 424 | I8-98145 501-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1111- | A | |||
| 124 | I1-09675 037-1 | BOLT; EYE LEAK OFF PIPE | 4 | 1111- | A | M8X18 EYE BOLT | ||
| 168 | I8-98072 403-0 | BRACKET; FUEL PIPE | 1 | 1111- | A | |||
| 290 | I8-98119 790-0 | SENSOR; PRESS | 1 | 1111- | A | |||
| 18 | I8-98271 204-0 | PIPE; INJ NO.3 | 1 | 1111- | A | |||
| 71 | I0-28051 060-0 | BOLT; BRKT | 3 | 1111- | A | (B) M10X60 FLANGE | ||
| 289 | I8-98032 549-0 | LIMITER; FUEL PRESS | 1 | 1111- | A | |||
| 87 | I0-28650 840-0 | BOLT; PUMP | 2 | 1111- | A | M8X40 FLANGE | ||
| 68 | I8-97330 119-3 | CLIP; INJ PIPE | 1 | 1111- | A | (B) | ||
| 382 | I8-97375 384-0 | KEY; DRIVE SHAFT | 1 | 1111-1201 | A | |||
| 18 | I8-98271 204-0 | PIPE; INJ NO.3 | 1 | 1111- | A | |||
| 226 | I8-98126 332-0 | PIPE; FUEL | 1 | 1111- | A | |||
| 205 | I8-98023 581-0 | SENSOR; FUEL TEMP | 1 | 1111- | A | |||
| 68 | I8-97330 119-3 | CLIP; FUEL PIPE FRR90 | 1 | 1111- | A | (B) | ||
| 71 | I0-28050 850-0 | BOLT; BRKT | 1 | 1111- | A | (D) M8X50 FLANGE | ||
| 288 | I1-15641 046-0 | GASKET | 1 | 1111- | A | ID=11 OD=16.3 | ||
| 377 | I8-97379 783-1 | BRACKET; HARNESS | 1 | 1111- | A | (B) | ||
| 120 | I8-98001 041-0 | BRACKET; INJ PIPE | 1 | 1111- | A | |||
| 19 | I8-98271 205-0 | PIPE; INJ NO.4 | 1 | 1111- | A | |||
| 424 | I8-98145 501-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1111- | A | |||
| 36 | I8-98065 992-0 | GASKET; RETURN PIPE,NOZZLE HOLDER | 4 | 1111- | A | |||
| 15 | I8-97306 054-0 | COUPLING ASM; INJ PUMP | 1 | 1111- | A | (A) | ||
| 1 | I8-97386 557-6 | PUMP ASM; INJ | 1 | 1111- | A | |||
| 424 | I8-98145 501-1 | OVERHAUL KIT; SUPPLY PUMP | 1 | 1111- | A | |||
| 377 | I8-97310 438-1 | BRACKET; HARNESS | 1 | 1111- | A | (A) | ||
| 68 | I8-97330 118-3 | CLIP; INJ PIPE | 1 | 1111- | A | (A) | ||
| 211 | I8-98011 888-2 | RAIL ASM; COMMON | 1 | 1111- | A | |||
| 354 | I0-28050 816-0 | BOLT; FUEL PIPE | 2 | 1111- | A | |||
| 80 | I8-98061 699-0 | BRACKET; PUMP | 1 | 1111- | A | |||
| 94 | I8-98028 999-1 | BRACKET; INJ NOZZLE | 4 | 1111- | A | |||
| 66 | I8-98079 248-0 | GASKET; INJ NOZZLE | 4 | 1111- | A | (A) ID=9.2 T=8.1 | ||
| 219 | I1-09623 593-0 | GASKET | 1 | 1111- | A | ID=94.6 | ||
| 17 | I8-98271 203-0 | PIPE; INJ NO.2 | 1 | 1111- | A | |||
| 87 | I0-28650 830-0 | BOLT; PUMP | 3 | 1111- | A | M8X30 FLANGE | ||
| 158 | I0-91180 114-0 | NUT; INJ PUMP | 1 | 1111- | A | M14 FLANGE | ||
| 63 | I8-97306 081-0 | PIPE; FUEL,NOZZLE LEAK OFF | 1 | 1111- | A | |||
| 329 | I9-09566 110-0 | GASKET; SENSOR,FUEL TEMP | 1 | 1111-1201 | A | ID=9.8 OD=11.7 | ||
| 199 | I8-97602 218-0 | GASKET; EYE BOLT | 4 | 1111- | A | (B) | ||
| 68 | I8-97330 118-3 | CLIP; FUEL PIPE FRR90 | 1 | 1111- | A | (A) | ||
| 61 | I8-98008 895-0 | BOLT; CLAMP NOZZLE HOLDER | 4 | 1111- | A | |||
| 210 | I8-97376 779-0 | PIPE; INJ,C/R | 1 | 1111- | A | |||
| 382 | I8-98161 995-0 | KEY; DRIVE SHAFT | 1 | 1202- | A | |||
| 19 | I8-98271 205-0 | PIPE; INJ NO.4 | 1 | 1111- | A | |||
| 16 | I8-98271 202-0 | PIPE; INJ NO.1 | 1 | 1111- | A | |||
| 31 | I8-98160 061-3 | NOZZLE ASM; INJ | 4 | 1111- | A | |||
| 199 | I1-15619 507-0 | GASKET; EYE BOLT | 2 | 1111- | A | (A) | ||
| 283 | I0-28050 825-0 | BOLT; COMMON RAIL | 1 | 1111- | A | M8X25 FLANGE | ||
| 110 | I0-91180 106-0 | NUT; CLIP | 4 | 1111- | A | M6 FLANGE | ||
| 9 | I8-97203 278-0 | STUD; CLIP | 1 | 1111- | A | M6X35 L=43 | ||
| 216 | I8-97351 388-0 | BOLT; EYE | 1 | 1111- | A | (B) | ||
| 282 | I8-98157 115-0 | BRACKET; COMMON RAIL | 1 | 1111- | A | |||
| 154 | I0-95690 111-0 | GASKET; CONNECTOR | 4 | 1111- | A | ID=11.0 | ||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 1111- | A | (C) | ||
| 71 | I0-28050 610-0 | BOLT; BRKT | 2 | 1111- | A | (E) M6X10 FLANGE | ||
| 15 | I8-97306 059-1 | COUPLING ASM; INJ PUMP | 1 | 1111- | A | (B) SEE FIG-NO 0-87 FOR COMPONENT. | ||
| 161 | I8-97363 237-0 | STUD; INJ PUMP | 2 | 1111- | A | M10X46.5 L=58.5 | ||
| 161 | I8-97363 237-0 | STUD; INJ PUMP | 2 | 1111- | A | M10X46.5 L=58.5 | ||
| 216 | I5-15759 003-0 | BOLT; EYE | 1 | 1111- | A | (A) | ||
| 66 | I8-94173 412-0 | GASKET; INJ NOZZLE | 4 | 1111- | A | (B) ID=23.3 | ||
| 9 | I0-41010 630-0 | STUD; CLIP | 2 | 1111- | A | M6X30 L=38 | ||
| 16 | I8-98271 202-0 | PIPE; INJ NO.1 | 1 | 1111- | A | |||
| 68 | I8-98039 293-0 | CLIP; INJ PIPE | 6 | 1111- | A | (C) | ||
| 445 | I8-98204 986-0 | SCREW; FILTER,INLET | 1 | 1111- | A | |||
| 71 | I0-28050 816-0 | BOLT; BRKT | 1 | 1111- | A | (A) M8X16 FLANGE | ||
| 216 | I8-98035 828-0 | BOLT; EYE | 1 | 1111- | A | (C) |
