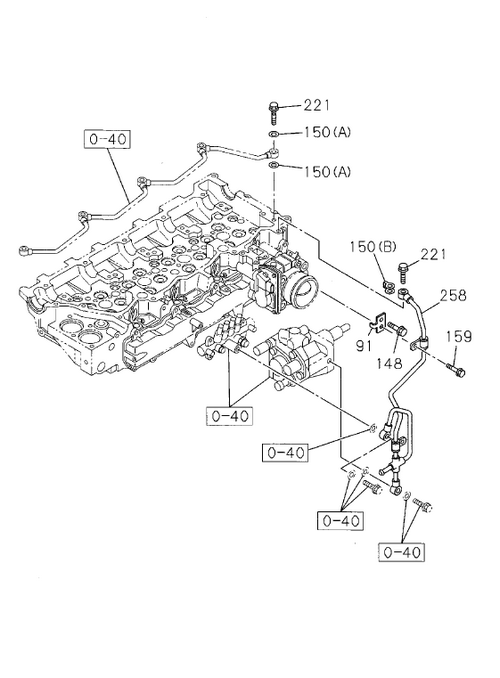

0-42 | FUEL PUMP AND PIPE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 150 | I1-09630 083-0 | GASKET; FUEL PIPE | 2 | 1111- | A | (A) ID=10.2 OD=15.2 | ||
| 221 | I8-94396 711-0 | BOLT; FUEL PIPE | 2 | 1111- | A | M10X21 FLANGE | ||
| 258 | I8-98055 815-1 | PIPE ASM; FUEL,LEAK OFF | 1 | 1111- | A | |||
| 159 | I0-28050 616-0 | BOLT; CLIP | 1 | 1111- | A | M6X16 FLANGE IDN | ||
| 150 | I8-98079 755-0 | GASKET; FUEL PIPE | 1 | 1111- | A | (B) ID=10.2 OD=17 | ||
| 148 | I0-28050 612-0 | BOLT; BRKT | 1 | 1111- | A | M6X12 FLANGE | ||
| 159 | I0-28050 612-0 | BOLT; CLIP | 1 | 1111- | A | M6X12 FLANGE | ||
| 91 | I8-98033 979-0 | BRACKET; FUEL PIPE TO INL MANIF | 1 | 1111- | A |
