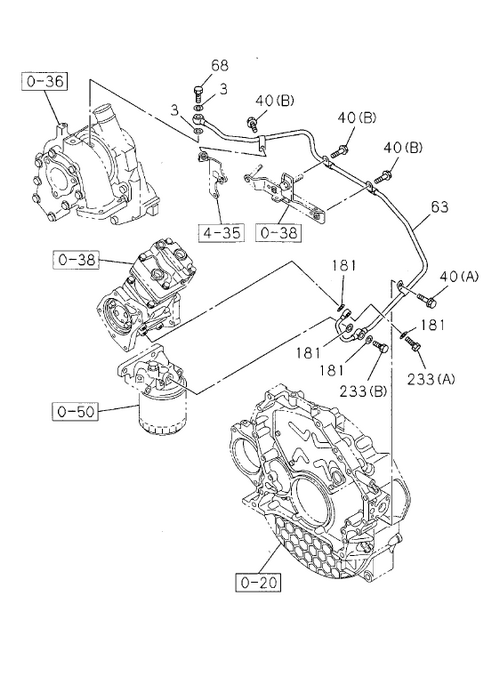

0-52 | OIL AND VACUUM PIPING; ENGINE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 63 | I8-98069 427-0 | PIPE; OIL,TURBOCHARGER FEED | 1 | 1111- | A | |||
| 233 | I8-98037 823-0 | BOLT; EYE | 1 | 1111- | A | (B) M10X28 | ||
| 233 | I1-09675 028-0 | BOLT; EYE | 1 | 1111- | A | (A) M10X22 | ||
| 181 | I1-09630 083-0 | GASKET | 4 | 1111- | A | ID=10.2 OD=15.2 | ||
| 40 | I0-28050 812-A | BOLT; OIL PIPE | 1 | 1111- | A | (A) M8X12 FLANGE | ||
| 68 | I8-98037 825-0 | BOLT; EYE,OIL PIPE,TURBOCHARGER SIDE | 1 | 1111- | A | M10X26 | ||
| 40 | I0-28050 820-0 | BOLT; OIL PIPE | 3 | 1111- | A | (B) M8X20 FLANGE | ||
| 3 | I9-09571 410-0 | GASKET; EYE BOLT,OIL PIPE | 2 | 1111- | A | ID=10.2 OD=16.0 |
