0-60 | ENGINE ELECTRICAL CONTROL PARTS
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 26 | I0-28151 070-0 | BOLT; GEN BRKT | 2 | 1111- | A | (B) M10X70 FLANGE | ||

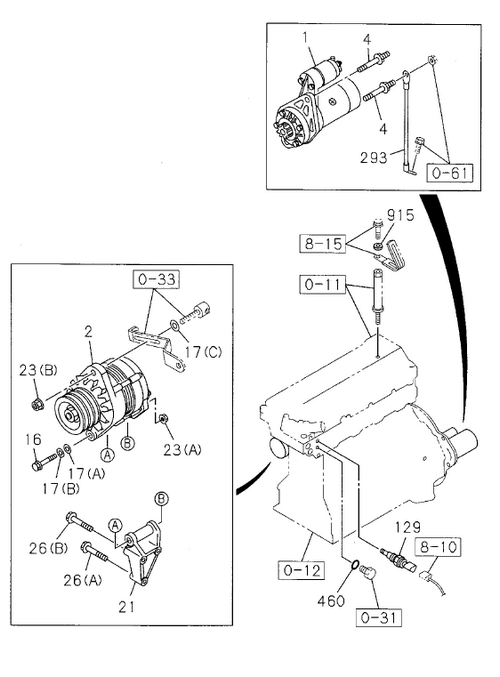

| 2 | I8-98013 455-2 | GENERATOR ASM | 1 | 1111- | A | 24V 50A NIKKO | ||
| 897 | I8-98260 912-1 | DRM | 1 | 1111- | A | |||
| 21 | I8-97381 404-0 | BRACKET; GEN | 1 | 1111- | A | |||
| 748 | I0-28650 616-0 | BOLT; CONT UNIT | 2 | 1111- | A | |||
| 10 | I8-97264 947-0 | RELAY; STARTER | 1 | 1111- | A | (A) 24V 50A | ||
| 23 | I0-91180 112-0 | NUT; GEN | 1 | 1111- | A | (B) M12 FLANGE IDN | ||
| 1 | I6-98009 043-0 | STARTER ASM | 1 | 1203- | A | 24V 4.5KW | ||
| 460 | I1-09630 086-0 | GASKET; PLUG | 1 | 1111- | A | ID=16.2 | ||
| 23 | I7-05014 012-A | NUT; GEN | 1 | 1111- | A | (A) M14 | ||
| 593 | I0-91180 106-0 | NUT; BRKT | 4 | 1111- | A | M6 FLANGE | ||

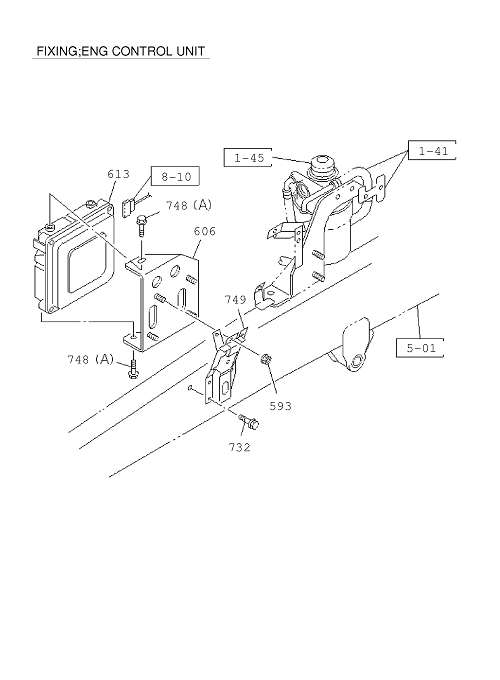

| 613 | I8-98188 698-0 | CONTROL UNIT; ENG | 1 | 1111- | A | |||
| 293 | I8-98176 541-A | CABLE; STARTER EARTH | 1 | 1111- | A | IDN | ||
| 17 | I0-91610 712-0 | WASHER; PL,GEN | 1 | 1111- | A | (C) ID=12.5 OD=32 | ||
| 897 | I8-98260 912-1 | CONTROL UNIT; DRM FTR | 1 | 1402- | A | |||
| 17 | I0-91610 514-0 | WASHER; PL,GEN | 1 | 1111- | A | (B) ID=15 | ||
| 2 | I6-98013 455-0 | GENERATOR ASM | 1 | 1111- | A | |||
| 606 | I1-53194 675-0 | BRACKET; CONT UNIT | 1 | 1111- | A | |||
| 26 | I0-28151 050-0 | BOLT; GEN BRKT | 1 | 1111- | A | (A) M10X50 FLANGE | ||
| 748 | I0-28050 612-0 | BOLT; CONT UNIT | 3 | 1111- | A | |||
| 16 | I1-09000 133-1 | BOLT; GEN | 1 | 1111- | A | M14X135 | ||
| 1 | I8-98009 043-2 | STARTER ASM | 1 | 1111- | A | 24V 4.5KW HITACHI | ||
| 293 | I8-98176 541-A | CABLE; STARTER EARTH | 1 | 1111- | A | IDN | ||
| 17 | I0-91510 514-0 | WASHER; PL,GEN | 1 | 1111- | A | (A) I D=14.2 | ||
| 17 | I0-91610 712-0 | WASHER; PL,GEN | 1 | 1111- | A | (C) ID=12.5 OD=32 | ||
| 749 | I1-53194 596-3 | STAY; CONT UNIT | 1 | 1111- | A | |||
| 4 | I8-98029 095-0 | BOLT; STARTER | 2 | 1111- | A | M10X15,M14X82 L=110 | ||
| 1 | I8-98245 260-1 | STARTER ASM | 1 | 1208- | A | 24V 4.5KW HITACHI | ||
| 732 | I0-28651 030-0 | BOLT; BRKT | 3 | 1111- | A | M10X30 FLANGE | ||
| 23 | I7-05014 012-A | NUT; GEN | 1 | 1111- | A | (A) M14 | ||
| 10 | I8-98167 173-0 | RELAY; STARTER | 1 | 1111- | A | (B) 24V 10A | ||
| 129 | I8-98260 257-0 | SENSOR; GLOW PLUG,THERMO | 1 | 1111- | A |
