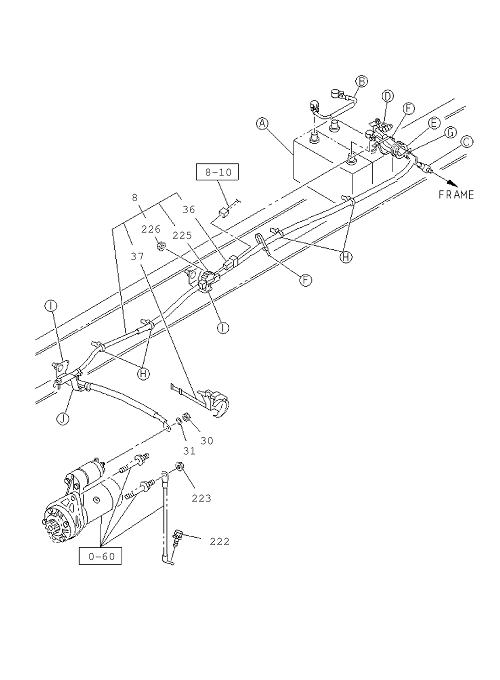

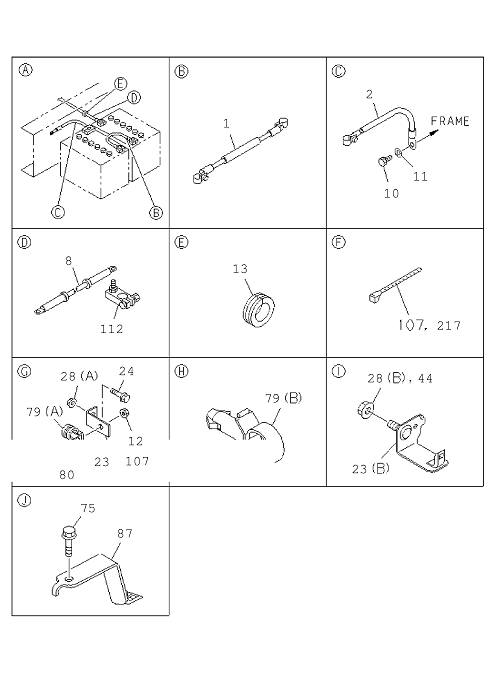

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-98025 412-A | CABLE; BATTERY | 1 | 1111- | A | L=280 IDN | ||
| 24 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 1 | 1111- | A | M8X30 FLANGE | ||
| 1 | I7-42502 223-A | CABLE; BATTERY | 1 | 2010- | A | L=280 IDN | ||
| 79 | I1-09709 291-0 | CLIP; BATTERY CABLE | 3 | 1111- | A | WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(5 (B) ID=13-18 L=18 | ||
| 11 | I1-09503 265-0 | WASHER; BATTERY CABLE EARTH | 1 | 1111- | A | ID=10.5 | ||
| 8 | I8-98187 933-A | CABLE; BATTERY,STARTER | 1 | 1111- | A | IDN | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1111- | A | M10X25 W/LK&PL WASHER | ||
| 23 | I8-98091 358-0 | BRACKET; CABLE CLIP TO FRAME | 2 | 1111- | A | (B) | ||
| 44 | I7-05110 010-A | NUT; BRKT | 1 | 1111- | A | M10 FLANGE | ||
| 2 | I8-98035 647-A | CABLE; BATTERY | 1 | 1111- | A | L=280 IDN | ||
| 217 | I5-09707 030-1 | CLIP; BAND,CABLE | 1 | 1111- | A | L=250 IDN | ||
| 87 | I8-98126 428-0 | BRACKET; HARNESS | 1 | 1111- | A | |||
| 75 | I0-28650 820-0 | BOLT; BRKT | 1 | 1111- | A | M8X20 FLANGE IDN | ||
| 226 | I8-94424 179-0 | NUT; FUSIBLE LINK | 1 | 1111- | A | M6 W/LK WASHER | ||
| 79 | I1-09700 109-1 | CLIP; BATTERY CABLE | 1 | 1111- | A | (A) ID=19 L=24 H=21 | ||
| 2 | I8-98035 647-A | CABLE; BATTERY | 1 | 1111- | A | L=280 IDN | ||
| 225 | I8-98029 689-0 | BLOCK; TERMINAL | 1 | 1111- | A | |||
| 79 | I1-09709 287-0 | CLIP; BATTERY CABLE | 1 | 1111- | A | WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(5 (B) ID=5-12 L=18 | ||
| 79 | I1-09709 289-0 | CLIP; BATTERY CABLE | 1 | 1111- | A | WHEEL BASE 6000MM(60W) (B) ID=5-12 L=26 | ||
| 112 | I8-97365 771-0 | TERMINAL; BATTERY | 1 | 1111- | A | |||
| 28 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1111- | A | (B) M10 FLANGE | ||
| 37 | I8-98042 507-0 | CAP; TERMINAL,BATTERY CABLE | 1 | 1111- | A | |||
| 30 | I0-91110 508-0 | NUT; CABLE,STARTER TO BATTERY | 1 | 1111- | A | M8 IDN | ||
| 44 | I7-05110 010-A | NUT; BRKT | 1 | 1111- | A | M10 FLANGE | ||
| 8 | I8-98187 933-A | CABLE; BATTERY,STARTER | 1 | 1111- | A | IDN | ||
| 80 | I0-28650 825-0 | BOLT; BATTERY CABLE CLIP | 1 | 1111- | A | M8X25 FLANGE IDN | ||
| 107 | I5-09707 031-1 | CLIP; BAND | 1 | 1111- | A | L=140 IDN | ||
| 23 | I1-47475 304-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 1111- | A | (A) L=55 | ||
| 13 | I1-09891 003-0 | GROMMET; BATTERY CABLE | 1 | 1111- | A | WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM ID=32 OD=40 T=18 | ||
| 31 | I0-91510 508-0 | WASHER; LK,CABLE,STARTER TO BATTERY | 1 | 1111- | A | ID=8.2 | ||
| 79 | I1-09709 293-0 | CLIP; BATTERY CABLE | 3 | 1111- | A | WHEEL BASE 6000MM(60W) (B) ID=13-18 L=26 | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 1111- | A | M10X25 W/LK&PL WASHER | ||
| 36 | I8-97615 498-1 | FUSIBLE LINK; BATTERY | 1 | 1111- | A | |||
| 13 | I1-09332 112-0 | GROMMET; BATTERY CABLE | 1 | 1111- | A | WHEEL BASE 6000MM(60W) ID=32 OD=40 T=23 | ||
| 12 | I0-91180 108-0 | NUT; BATTERY CABLE CLIP | 1 | 1111- | A | M8 FLANGE | ||
| 28 | I0-91180 108-0 | NUT; BRKT TO FRAME | 1 | 1111- | A | (A) M8 FLANGE | ||
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1111- | A | M10X25 W/LK&PL WASHER | ||
| 10 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 1111- | A | M10X25 W/LK&PL WASHER | ||
| 223 | I7-05110 010-A | NUT; EARTH CABLE | 1 | 1111- | A | M10 FLANGE | ||
| 28 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 1111- | A | (B) M10 FLANGE |
