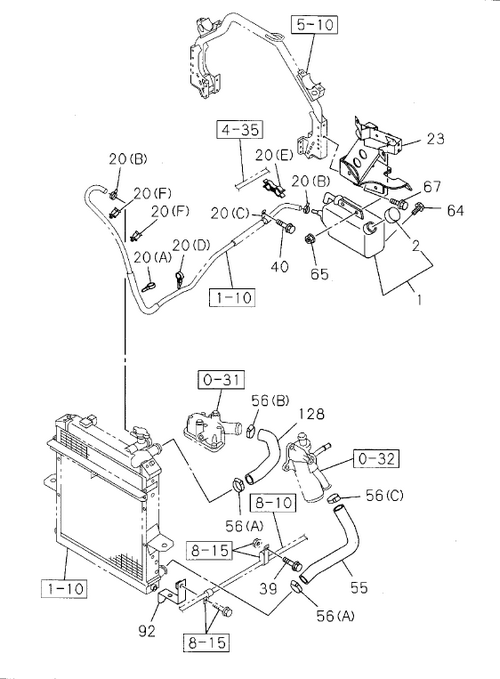

1-11 | RADIATOR HOSE AND SUB TANK
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 20 | I9-09917 430-0 | CLIP; HOSE,RAD | 1 | 1111- | A | (A) ID=20 L=50 | ||
| 20 | I0-95235 235-0 | CLIP; HOSE,RAD | 2 | 1111- | A | (C) ID=13 L=20 | ||
| 56 | I1-09704 057-0 | CLIP; WATER HOSE,RAD | 1 | 1111- | A | (B) ID=52 | ||
| 64 | I1-09030 093-0 | BOLT; BRKT,SUB TANK | 1 | 1111- | A | M8X25 W/LK&PL WASHER | ||
| 55 | I8-98010 573-2 | HOSE; WATER,RAD OUTLET | 1 | 1111- | A | |||
| 20 | I8-97375 638-0 | CLIP; HOSE,RAD | 2 | 1111- | A | (B) ID=11.5 | ||
| 39 | I0-28650 820-0 | BOLT; BRKT FIX | 1 | 1111- | A | |||
| 23 | I8-98049 965-4 | BRACKET; RESERVE TANK | 1 | 1111- | A | |||
| 20 | I9-09917 430-0 | CLIP; HOSE,RAD | 1 | 1111- | A | (A) ID=20 L=50 | ||
| 128 | I6-98010 572-0 | HOSE; WATER, RAD INLET | 1 | 1108- | A | |||
| 20 | I0-95235 235-0 | CLIP; HOSE,RAD | 1 | 1111- | A | (C) ID=13 L=20 | ||
| 56 | I8-98133 957-0 | CLIP; WATER HOSE,RAD | 1 | 1111- | A | (C) ID=62 | ||
| 40 | I0-28650 820-0 | BOLT; CLIP | 2 | 1111- | A | M8X20 FLANGE IDN | ||
| 55 | I6-98010 573-0 | HOSE; WATER, RAD OUTLET | 1 | 1108- | A | |||
| 65 | I0-91180 108-0 | NUT; BRKT,SUB TANK | 3 | 1111- | A | M8 FLANGE | ||
| 56 | I8-98133 956-0 | CLIP; WATER HOSE,RAD | 2 | 1111- | A | (A) ID=48 | ||
| 128 | I8-98010 572-1 | HOSE; WATER,RAD INL | 1 | 1111- | A | |||
| 20 | I8-98029 256-0 | CLIP; HOSE,RAD | 3 | 1111- | A | (F) ID=12 | ||
| 20 | I9-09917 427-0 | CLIP; HOSE,RAD | 1 | 1111- | A | (D) ID=14 L=44 | ||
| 40 | I0-28650 820-0 | BOLT; CLIP | 1 | 1111- | A | M8X20 FLANGE IDN | ||
| 1 | I8-98171 757-0 | TANK; SURGE,RAD | 1 | 1111- | A | |||
| 2 | I8-98178 074-0 | CAP; SURGE TANK | 1 | 1111- | A | |||
| 67 | I0-28650 820-0 | BOLT; BRKT | 3 | 1111- | A | M8X20 FLANGE IDN | ||
| 20 | I8-94314 293-0 | CLIP; HOSE,RAD | 1 | 1111- | A | (E) ID=11.5 & 14.5 |
