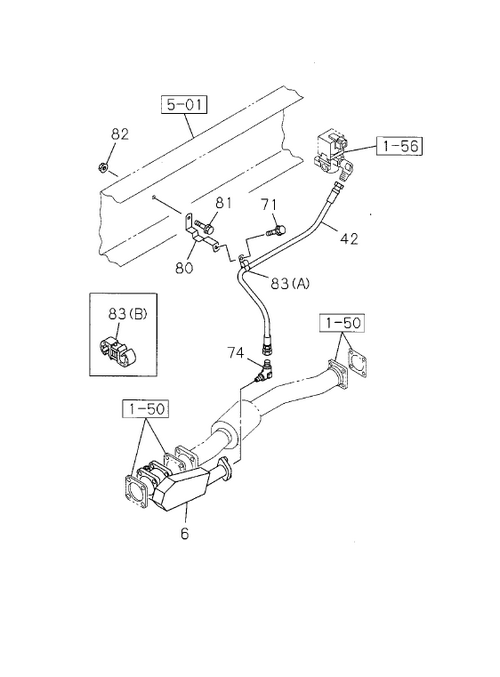

1-55 | EXHAUST BRAKE VALVE AND CONTROL CYLINDER
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 42 | I1-09363 957-0 | HOSE; FLEX,EXH BRK | 1 | 1111- | A | L=520 | ||
| 83 | I0-95235 265-0 | CLIP; FLEX HOSE | 1 | 1111- | A | ID=13 L=32 | ||
| 77 | I0-91180 108-0 | NUT; CLIP | 1 | 1111- | A | M8 FLANGE | ||
| 81 | I0-28650 830-0 | BOLT; HOSE BRKT | 1 | 1111- | A | M8X3 0 FLANGE | ||
| 80 | I1-82698 395-0 | BRACKET; FLEX HOSE | 1 | 1111- | A | |||
| 74 | I1-09650 430-0 | CONNECTOR; EXH BRK VLV | 1 | 1111- | A | M12 & PT1/4 ELBOW | ||
| 71 | I0-28650 825-0 | BOLT; CLIP | 1 | 1111- | A | M8X25 FLANGE IDN | ||
| 6 | I8-97489 690-0 | VALVE; EXH BRAKE | 1 | 1111- | A | |||
| 82 | I0-91180 108-0 | NUT; HOSE BRKT | 1 | 1111- | A | M8 FLANGE |
