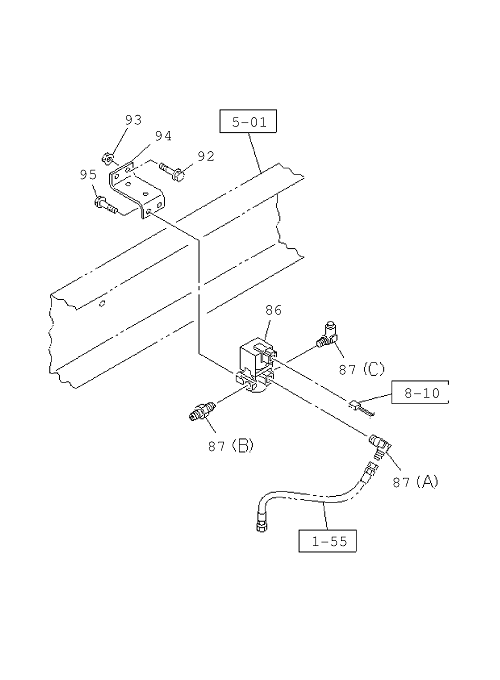

1-56 | EXHAUST BRAKE SYSTEM
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 93 | I0-91180 108-0 | NUT; MAG VLV | 2 | 1111- | A | M8 FLANGE | ||
| 92 | I0-28650 830-0 | BOLT; MAG VLV | 2 | 1111- | A | M8X3 0 FLANGE | ||
| 94 | I1-47471 374-1 | BRACKET; MAG VLV,EXH BRAKE | 1 | 1111- | A | |||
| 95 | I0-28650 820-0 | BOLT; BRKT, MAG VLV,EXH BRAKE | 2 | 1111- | A | M8X2 0 FLANGE IDN | ||
| 94 | I1-47471 374-1 | BRACKET; MAG VLV,EXH BRAKE | 1 | 1111- | A | |||
| 87 | I1-09660 956-0 | CONNECTOR | 1 | 1111- | A | (C) DIN8 & R1/4 ELBOW | ||
| 87 | I1-09660 963-0 | CONNECTOR | 1 | 1111- | A | (B) DIN8 R1/4 STRAIGHT | ||
| 86 | I1-82563 871-2 | VALVE; MAG, EXH BRK | 1 | 1111- | A | |||
| 87 | I1-09650 430-0 | CONNECTOR | 1 | 1111- | A | (A) M12 & PT1/4 ELBOW |
