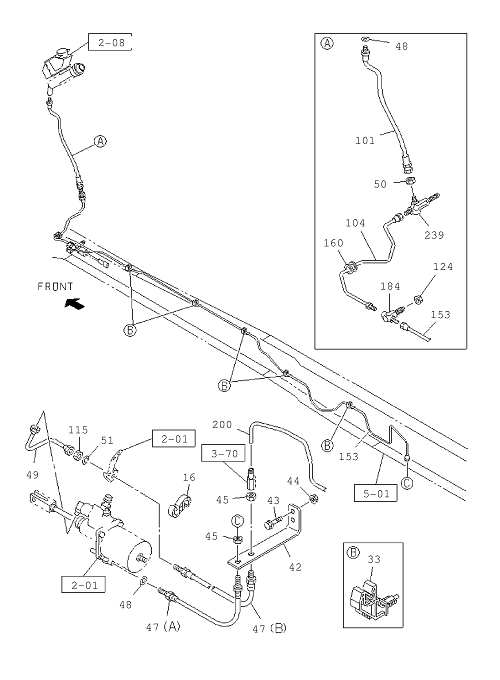

| 239 |
I1-09654 059-2 |
|
UNION; CLU HOSE |
1 |
1111- |
|
A |
M12 2WAY |
| 153 |
I1-47428 744-0 |
|
PIPE ASM; CLU,UNION TO FLEX |
1 |
1111- |
|
A |
L=2684 SERVICED BY L=2900 |
| 200 |
I1-87411 006-0 |
|
TUBE; NYLON |
1 |
1111- |
|
A |
SERVICED BY L=2000 OD=8 |
| 124 |
I0-91111 512-0 |
|
NUT; PIPE UNION |
1 |
1111- |
|
A |
M12 |
| 115 |
I9-09840 280-0 |
|
NUT; FLEX HOSE,CLU CONT |
1 |
1111- |
|
A |
M12 |
| 44 |
I0-91180 108-0 |
|
NUT; BRKT,FLEX HOSE,CLU BOOSTER |
2 |
1111- |
|
A |
M8 FLANGE |
| 42 |
I8-98180 225-0 |
|
BRACKET; FLEX HOSE,CLU CONT |
1 |
1111- |
|
A |
|
| 47 |
I1-09363 720-0 |
|
HOSE; FLEX,CLU CONT |
1 |
1111- |
|
A |
(B) L=500 |
| 50 |
I0-91111 512-0 |
|
NUT; UNION |
1 |
1111- |
|
A |
M12 |
| 101 |
I8-98072 346-A |
|
HOSE; FLEX,OIL PIPE TO OIL PIPE |
1 |
1111- |
|
A |
L=440 |
| 48 |
I9-09571 410-0 |
|
GASKET; FLEX HOSE,CLU CONT |
2 |
1111- |
|
A |
ID=10.2 OD=16.0 |
| 49 |
I1-49117 400-A |
|
PIPE; AIR,FLEX HOSE TO CLU BOOSTER |
1 |
1111- |
|
A |
L=204 |
| 184 |
I8-98150 865-0 |
|
UNION; FLEX HOSE |
1 |
1111- |
|
A |
|
| 49 |
I1-49117 400-A |
|
PIPE; AIR,FLEX HOSE TO CLU BOOSTER |
1 |
1111- |
|
A |
L=204 |
| 101 |
I8-98072 346-A |
|
HOSE; FLEX,OIL PIPE TO OIL PIPE |
1 |
1111- |
|
A |
L=440 |
| 104 |
I8-98114 452-0 |
|
PIPE; OIL,FLEX HOSE TO CONNECTOR |
1 |
1111- |
|
A |
L=554 IDN |
| 51 |
I0-91510 812-0 |
|
WASHER; LK |
1 |
1111- |
|
A |
ID=12.2 |
| 160 |
I9-09956 256-2 |
|
GROMMET; OIL PIPE |
1 |
1111- |
|
A |
ID=28 OD=35 T=17 |
| 16 |
I1-09709 278-1 |
|
CLIP; FLEX HOSE |
1 |
1111- |
|
A |
ID=10 & 12 |
| 47 |
I8-98180 367-0 |
|
HOSE; FLEX,CLU CONT |
1 |
1111- |
|
A |
(A) L=440 |
| 45 |
I9-09840 280-0 |
|
NUT; FLEX HOSE,CLU CONT |
2 |
1111- |
|
A |
M12 |
| 33 |
I1-09701 247-1 |
|
CLIP; OIL PIPE |
3 |
1111- |
|
A |
ID=6.35 |
| 43 |
I0-28650 830-0 |
|
BOLT; BRKT,FLEX HOSE,CLU BOOSTER |
2 |
1111- |
|
A |
M8X30 FLANGE |
| 104 |
I8-98114 452-A |
|
PIPE; OIL,FLEX HOSE TO CONNECTOR |
1 |
1112- |
|
L=554 |
|
