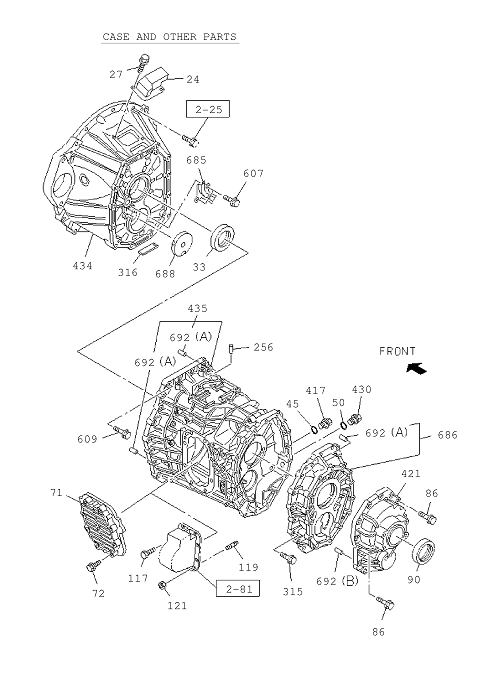

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 117 | I0-28151 040-0 | BOLT; PTO FIX | 2 | 1205- | A | TRANSMISSION SIDE PTO VAR5 GEAR=3 6/16(C5L) PTO CONTROL<SV6> M10X40 FLANGE | ||
| 688 | I8-98309 860-0 | NOZZLE; OIL,COUNTER | 1 | 1111- | A | |||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1111-1203 | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> M10 FLANGE | ||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1111-1203 | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> M10 FLANGE | ||
| 117 | I0-28151 040-0 | BOLT; PTO FIX | 2 | 1111-1203 | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> M10X40 FLANGE | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1111- | A | OD=6 L=12 | ||

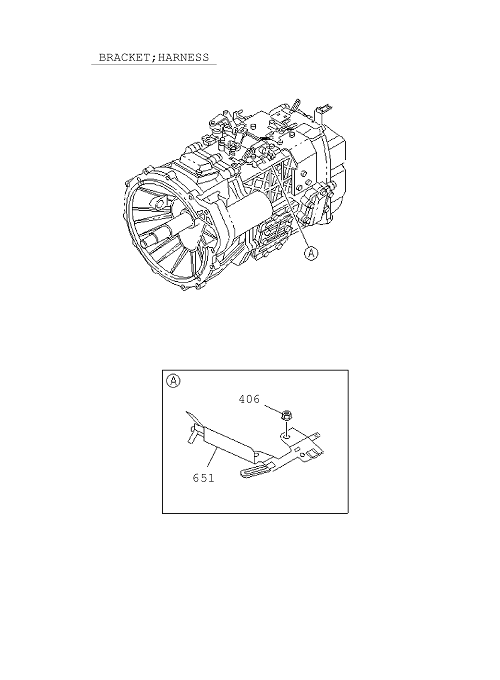

| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 1111- | A | |||
| 692 | I9-11229 058-1 | PIN; DOWEL | 4 | 1111- | A | (A) OD=11 L=8 | ||
| 71 | I8-98122 318-0 | COVER; SIDE,TRANS CASE | 1 | 1111-1203 | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CON L<SV6> | ||
| 119 | I0-44011 035-0 | STUD; PTO FIX | 6 | 1205- | A | TRANSMISSION SIDE PTO VAR5 GEAR=3 6/16(C5L) PTO CONTROL<SV6> M10X35 L=50 | ||
| 421 | I8-98004 790-1 | COVER; RR,TRANS | 1 | 1111- | A | |||
| 71 | I8-98122 318-0 | COVER; SIDE,TRANS CASE | 1 | 1204-1204 | A | |||
| 86 | I8-98045 397-0 | BOLT; RR COVER | 14 | 1111- | A | M10X40 FLANGE | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 1111- | A | |||
| 434 | I8-98004 507-2 | HOUSING; CLU | 1 | 1111- | A | |||
| 50 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 1111- | A | ID=17 | ||
| 45 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 1111- | A | ID=17 | ||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 1111- | A | |||
| 72 | I1-09044 081-0 | BOLT; SIDE COVER | 8 | 1111- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CON L<SV6 > M10X50 FLANGE | ||
| 71 | I8-98122 318-0 | COVER; SIDE,TRANS CASE | 1 | 1205- | A | EXC. TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L), CONTROL<SV6> | ||
| 119 | I0-44011 035-0 | STUD; PTO FIX | 6 | 1111-1203 | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> M10X35 L=50 | ||
| 315 | I0-28050 840-0 | BOLT; CASE | 18 | 1111- | A | M8X40 FLANGE | ||
| 607 | I0-28050 816-0 | BOLT; COVER | 2 | 1111- | A | M8X16 FLANGE | ||
| 435 | I8-98236 421-1 | CASE; TRANS | 1 | 1111- | A | |||
| 33 | I8-97377 947-0 | SEAL; OIL,FRT COVER,T/M | 1 | 1111- | A | |||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1205- | A | TRANSMISSION SIDE PTO VAR5 GEAR=3 6/16(C5L) PTO CONTROL<SV6> M10 FLANGE | ||
| 609 | I0-28050 840-0 | BOLT; HSG TO CASE | 22 | 1111- | A | M8X40 FLANGE | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 1111- | A | OD=6 L=12 | ||
| 686 | I8-97388 873-1 | CASE; RR,TRANS | 1 | 1111- | A | |||
| 406 | I0-91180 108-0 | NUT; BRKT | 2 | 1111- | A | M8 FLANGE | ||
| 90 | I8-97377 948-0 | SEAL; OIL,RR COVER | 1 | 1111- | A | NOK | ||

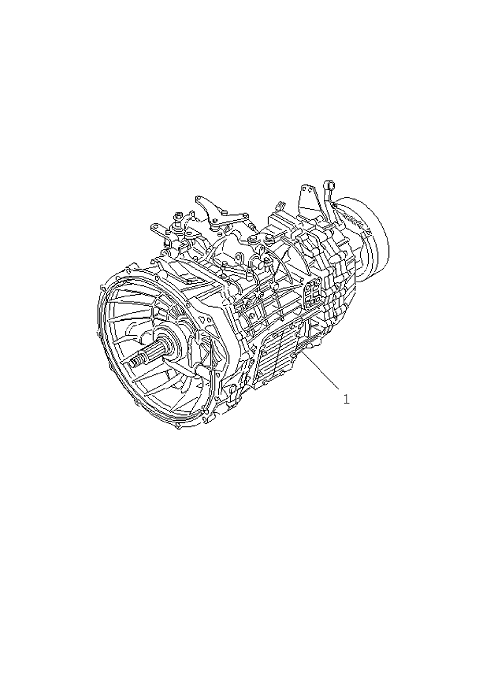

| 1 | I8-98187 633-0 | TRANSMISSION ASM; MANUAL | 1 | 1111- | A | EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),PTO CON L<SV6> | ||
| 688 | I8-98309 860-0 | NOZZLE;OIL,COUNTER FRONT | 1 | 1509- | A | |||
| 685 | I8-98018 864-1 | COVER; OIL PORT | 1 | 1111- | A | |||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER,TRANS | 1 | 1111- | A | M20X10.5 | ||
| 24 | I1-31131 041-0 | COVER; CHECK HOLE,DUST | 1 | 1111- | A | |||
| 27 | I0-28050 812-A | BOLT; COVER TO CLU HSG | 2 | 1111- | A | M8X12 FLANGE | ||
| 692 | I9-11319 065-3 | PIN; DOWEL | 2 | 1111- | A | (B) OD=14 L=10 | ||
| 1 | I8-98187 633-0 | TRANSMISSION ASM; MANUAL | 1 | 1111- | A | TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> | ||
| 121 | I7-05110 010-A | NUT; PTO FIX | 6 | 1205- | A | TRANSMISSION SIDE PTO VAR5 GEAR=3 6/16(C5L) PTO CONTROL<SV6> M10 FLANGE |
