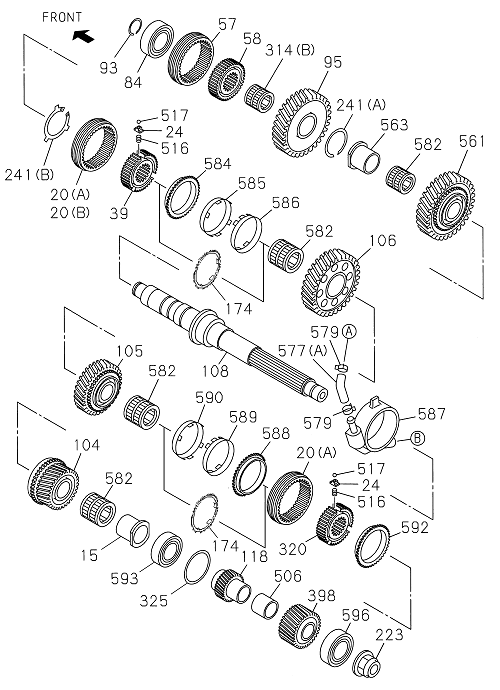

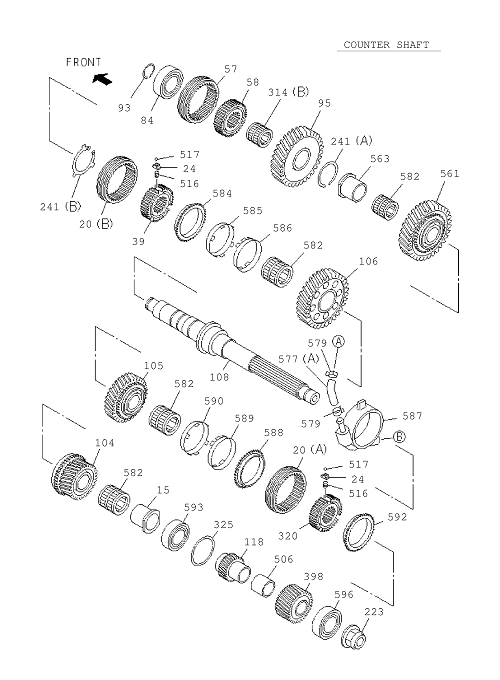

2-26 | MANUAL TRANSMISSION GEAR
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 516 | I8-98032 197-0 | SPRING; SYNCHRO,INDEX | 9 | 1111- | A | |||
| 84 | I8-97377 957-1 | BEARING; COUNTER SHAFT,FRT | 1 | 1111- | A | |||
| 563 | I8-98146 345-0 | COLLAR; 1ST GEAR | 1 | 1111- | A | |||
| 82 | I8-98245 057-0 | SHAFT; MAIN,TRANS | 1 | 1111- | A | Z=19-26 | ||
| 325 | I8-98009 377-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.50 | ||
| 595 | I8-98022 221-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.26 | ||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 7 | 1206- | A | ID=16 | ||
| 573 | I8-98044 683-0 | PUMP ASM; OIL | 1 | 1111-1205 | A | |||
| 582 | I8-97253 110-0 | BEARING; NEEDLE,COUNTER GEAR | 4 | 1111- | A | |||
| 593 | I8-97377 976-0 | BEARING; COUNTER MIDDLE | 1 | 1111- | A | |||
| 241 | I8-97254 743-0 | RING; SNAP | 1 | 1111- | A | (A) ID=46.5 T=1.8 | ||
| 594 | I8-98005 633-0 | WASHER; THRUST,REV IDLE | 1 | 1111- | A | |||
| 595 | I8-97377 987-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.62 | ||
| 36 | I8-98168 499-0 | GEAR; 3RD, MAINSHAFT | 1 | 1111- | A | Z=29 | ||
| 105 | I8-98168 501-0 | GEAR; 3RD,COUNTER | 1 | 1111- | A | Z=35 | ||
| 561 | I8-98000 330-0 | GEAR; LOW,COUNTER | 1 | 1111- | A | Z=44 | ||
| 108 | I8-98223 607-0 | SHAFT; COUNTER | 1 | 1111- | A | Z=27-42-26 | ||
| 581 | I8-97377 956-0 | CLUTCH; DOG,5TH GEAR | 1 | 1111-2003 | A | |||
| 77 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 1204- | A | Z=46 | ||
| 39 | I8-98075 732-0 | HUB; CLU,LOW & 2ND | 1 | 1111- | A | Z=45 | ||
| 580 | I8-97377 953-0 | BEARING; MAINSHAFT RR | 1 | 1111- | A | |||
| 15 | I8-98146 345-0 | COLLAR; 4TH GEAR | 1 | 1111- | A | |||
| 571 | I8-97377 951-0 | RING; SNAP,BRG | 1 | 1111- | A | |||
| 325 | I8-98022 219-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.20 | ||
| 592 | I8-97241 306-1 | RING; BLOCK,4TH | 1 | 1111- | A | Z=45 | ||
| 595 | I8-97377 990-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.80 | ||
| 595 | I8-98022 222-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.32 | ||
| 314 | I1-09811 017-0 | BEARING; NEEDLE,REV GEAR | 2 | 1111- | A | (A) KOYO | ||
| 325 | I8-98009 375-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.38 | ||
| 400 | I8-97377 977-0 | BEARING; OUTPUT SHAFT RR | 1 | 1111- | A | |||
| 584 | I8-98223 605-0 | RING; BLOCK,2ND | 1 | 1210- | A | Z=45 | ||
| 223 | I8-98005 894-0 | NUT; COUNTER SHAFT END | 1 | 1111- | A | M3 4 FLANGE | ||
| 24 | I8-97241 313-1 | BLOCK; INDEX,SYN | 9 | 1111- | A | |||
| 325 | I8-98009 376-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.44 | ||
| 58 | I8-98005 296-0 | HUB; CLU,REV | 1 | 1111- | A | Z=45-2 7 | ||
| 178 | I8-97253 099-1 | BEARING; NEEDLE,MAINSHAFT | 1 | 1111- | A | |||
| 588 | I8-97241 306-1 | RING; BLOCK,3RD | 1 | 1111- | A | Z=45 | ||
| 386 | I9-08150 408-0 | PIN; REV SHAFT | 1 | 1111- | A | |||
| 174 | I8-98315 823-2 | SYNCHRONIZER ASM;2ND | 2 | 1509- | A | |||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 7 | 1206- | A | ID=16 | ||
| 106 | I8-98140 884-0 | GEAR; 2ND,COUNTER | 1 | 1111- | A | Z=44 | ||
| 39 | I8-98309 852-0 | HUB; CLU,LOW & 2ND | 1 | 1502- | A | z=45 | ||
| 18 | I8-97256 855-0 | RING; SNAP,CLU HUB | 1 | 1111- | A | ID=35.7 T=1.8 | ||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 1204- | A | Z=29 | ||
| 588 | I8-98223 605-0 | RING; BLOCK,3RD | 1 | 1210- | A | Z=45 | ||
| 108 | I8-98223 607-0 | SHAFT; COUNTER | 1 | 1111- | A | Z=27-42-26 | ||
| 320 | I8-98309 859-0 | HUB; CLU,4TH & 3RD | 1 | 1502- | A | z=45 | ||
| 398 | I8-97380 568-0 | GEAR; COUNTER | 1 | 1111- | A | Z=22 | ||
| 595 | I8-98009 379-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.38 | ||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 1111-1203 | A | Z=29 | ||
| 587 | I8-97377 959-0 | CASE; PUMP,COUNTER | 1 | 1111-1205 | A | |||
| 104 | I8-98198 297-0 | GEAR; 4TH,COUNTER | 1 | 1111-1203 | A | Z=29 | ||
| 325 | I8-97377 997-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.74 | ||
| 320 | I8-98075 733-0 | HUB; CLU,4TH & 3RD | 1 | 1111- | A | |||
| 325 | I8-97377 996-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.68 | ||
| 587 | I8-98212 196-0 | CASE; PUMP,COUNTER | 1 | 1206- | A | |||
| 325 | I8-97377 998-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.80 | ||
| 581 | I8-98137 255-1 | CLUTCH; DOG,5TH GEAR | 1 | 2004- | A | |||
| 84 | I8-97377 957-1 | BEARING; COUNTER SHAFT,FRT FVR34 | 1 | 1111- | A | |||
| 595 | I8-98352 508-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.44 | ||
| 325 | I8-97377 995-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1. 62 | ||
| 573 | I8-98212 241-0 | PUMP ASM; OIL | 1 | 1206- | A | |||
| 57 | I8-94421 871-1 | SLEEVE; REV | 1 | 1111- | A | Z=45 | ||
| 475 | I8-98101 505-0 | BEARING; 6TH | 1 | 1111- | A | COLLAR OD=-49.999 | ||
| 314 | I8-97253 111-0 | BEARING; NEEDLE,REV GEAR | 1 | 1111- | A | (B) NSK | ||
| 506 | I8-97377 965-0 | COLLAR; 6TH,COUNTER | 1 | 1111- | A | |||
| 590 | I8-97241 312-1 | RING; INSIDE,3RD | 1 | 1111- | A | |||
| 325 | I8-98009 373-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.26 | ||
| 586 | I8-97241 312-1 | RING; INSIDE,2ND | 1 | 1111- | A | |||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 10 | 1111-1205 | A | ID=16 | ||
| 20 | I8-98034 769-0 | SLEEVE | 1 | 1111- | A | (B) | ||
| 131 | I9-09571 410-0 | GASKET; REV SHAFT | 2 | 1111- | A | ID=10.2 OD=16.0 | ||
| 521 | I0-28050 812-A | BOLT | 1 | 1111- | A | M8X12 FLANGE | ||
| 294 | I8-97380 571-0 | SHAFT; OUTPUT | 1 | 1111- | A | |||
| 118 | I8-98005 292-1 | GEAR; 6TH,COUNTER | 1 | 1111- | A | Z=17 | ||
| 326 | I8-98014 738-0 | BOLT; REV SHAFT | 1 | 1111- | A | (B) M10X50 | ||
| 596 | I8-97377 968-0 | BEARING; ROOLER,COUNTER END | 1 | 1111- | A | |||
| 595 | I8-97377 989-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.74 | ||
| 577 | I8-98033 981-0 | HOSE; OIL PUMP | 4 | 1111-1205 | A | (A) | ||
| 77 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 1111-1203 | A | Z=46 | ||
| 11 | I8-97241 306-1 | RING; BLOCK,5TH & 6TH | 2 | 1111- | A | Z=45 | ||
| 595 | I8-97377 985-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.50 | ||
| 260 | I8-98014 140-0 | NUT; MAINSHAFT END | 1 | 1111- | A | M3 6 FLANGE | ||
| 20 | I8-98258 279-0 | SLEEVE | 2 | 1111- | A | (A) Z=45 | ||
| 424 | I8-98125 318-0 | COLLAR; 6TH GEAR | 1 | 1111- | A | |||
| 573 | I8-98044 683-0 | PUMP ASM; OIL | 1 | 1111-1205 | A | |||
| 80 | I8-97377 978-1 | GEAR; SPD DRIVE FVR34 | 1 | 1111- | A | Z=5 | ||
| 584 | I8-98034 770-0 | RING; BLOCK,2ND | 1 | 1111- | A | Z=45 | ||
| 82 | I8-98245 057-0 | SHAFT; MAIN,TRANS | 1 | 1111- | A | Z=19-26 | ||
| 578 | I8-98009 345-0 | SCREEN; OIL PUMP | 2 | 1111- | A | |||
| 326 | I0-29261 050-0 | BOLT; REV SHAFT | 1 | 1111- | A | (A) M10X50 FLANGE | ||
| 132 | I8-98009 372-0 | SHAFT; REV | 1 | 1111- | A | |||
| 589 | I8-97241 309-1 | RING; OUTSIDE,3RD | 1 | 1111- | A | |||
| 80 | I8-97377 978-0 | GEAR; SPD DRIVE | 1 | 1111- | A | Z=5 | ||
| 595 | I8-97377 991-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.86 | ||
| 586 | I8-98223 606-0 | RING; INSIDE,2ND | 1 | 1210- | A | |||
| 93 | I8-97377 958-0 | RING; SNAP,COUNTER FRT BRG | 1 | 1111- | A | |||
| 595 | I8-97377 986-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.56 | ||
| 108 | I8-98303 643-0 | SHAFT;COUNTER | 1 | 1502- | A | z=27-42-26 | ||
| 298 | I1-09623 380-0 | GASKET; MAINSHAFT | 1 | 1111- | A | ID=4 7 T=5 | ||
| 468 | I8-98075 734-0 | HUB; CLU,5TH & 6TH | 1 | 1111- | A | |||
| 299 | I8-97377 970-0 | BEARING; OUTPUT SHAFT FRT | 1 | 1111- | A | |||
| 241 | I8-98009 391-0 | RING; SNAP | 1 | 1111- | A | (B) ID=96 T=2.5 | ||
| 585 | I8-97241 309-1 | RING; OUTSIDE,2ND | 1 | 1111- | A | |||
| 325 | I8-97377 994-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.56 | ||
| 579 | I8-98030 682-0 | CLAMP; HOSE | 10 | 1111-1205 | A | ID=16 | ||
| 473 | I8-97377 950-0 | BEARING; INPUT SHAFT | 1 | 1111- | A | |||
| 95 | I8-98005 229-0 | GEAR; REV,COUNTER | 1 | 1111- | A | Z=44 | ||
| 135 | I8-98005 601-1 | GEAR; REV IDLER | 1 | 1111- | A | Z=2 7 | ||
| 572 | I8-98168 500-0 | GEAR; 4TH,INPUT | 1 | 1111- | A | Z=3 7 | ||
| 595 | I8-97377 988-0 | SHIM; OUTPUT SHAFT | 1 | 1111- | A | T=1.68 | ||
| 590 | I8-98223 606-0 | RING; INSIDE,3RD | 1 | 1210- | A | |||
| 325 | I8-98022 218-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.14 | ||
| 577 | I8-98033 981-0 | HOSE; OIL PUMP | 2 | 1206- | A | (A) | ||
| 517 | I8-97252 935-0 | BALL; SYNCHRO,INDEX | 9 | 1111- | A | |||
| 77 | I8-98137 256-0 | GEAR; 6TH,MAINSHAFT | 1 | 1204- | A | Z=46 | ||
| 325 | I8-98009 374-0 | SHIM; COUNTER SHAFT BRG | 1 | 1111- | A | T=1.32 | ||
| 577 | I8-98033 982-0 | HOSE; OIL PUMP | 2 | 1111- | A | (B) | ||
| 475 | I8-98142 265-0 | BEARING; 6TH | 1 | 1111- | A | COLLAR OD=50.000- |
