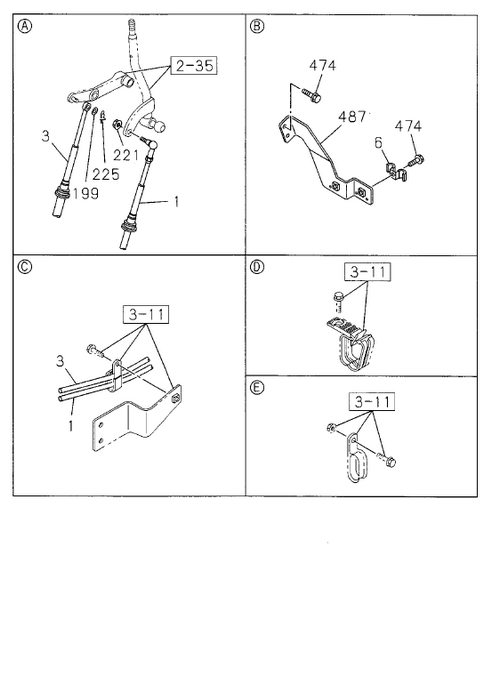

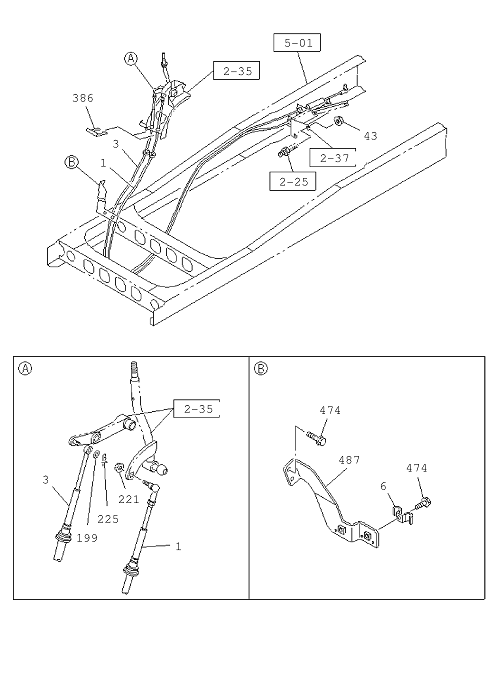

2-36 | MANUAL TRANSMISSION CONT LINK AND CABLE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 43 | I7-05110 010-A | NUT; BRKT | 2 | 1111- | A | M10 FLANGE | ||
| 1 | I8-98169 839-A | CABLE; SHIFT,TRANS CONT FRR90 | 1 | 1405- | A | TRACTOR HEAD | ||
| 221 | I1-09440 062-1 | NUT; SHIFT WIRE TO LEVER | 1 | 1111- | A | M8 FLANGE | ||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1111- | A | L=2 7.7 | ||
| 3 | I8-98041 387-A | CABLE; SELECT,TRANS CONT | 1 | 1111- | A | L=3155 | ||
| 3 | I8-98041 387-A | CABLE; SELECT,TRANS CONT FTR90 | 1 | 1405- | A | |||
| 6 | I1-09700 739-0 | CLIP; CABLE | 1 | 1111- | A | ID=11 & 11 L=17.5 & 17.5 | ||
| 386 | I1-09700 966-1 | CLIP; CONT CABLE & TUBE | 2 | 1111- | A | |||
| 474 | I0-51640 825-0 | BOLT; BRKT | 3 | 1111- | A | |||
| 1 | I8-98041 381-A | CABLE; SHIFT,TRANS CONT FTR90 | 1 | 1405- | A | |||
| 225 | I8-94157 841-0 | PIN; SELECT CABLE | 1 | 1111- | A | L=2 7.7 | ||
| 487 | I8-98183 009-0 | BRACKET; CONT CABLE | 1 | 1111- | A | |||
| 1 | I8-98041 381-A | CABLE; SHIFT,TRANS CONT | 1 | 1111- | A | L=3090 | ||
| 3 | I8-98041 384-A | CABLE; SELECT,TRANS CONT FRR90 | 1 | 1405- | A | TRACTOR HEAD | ||
| 199 | I0-91614 508-0 | WASHER; PL,SELECT | 1 | 1111- | A | ID=8.4 OD=16 | ||
| 43 | I7-05110 010-A | NUT; BRKT | 2 | 1111- | A | M10 FLANGE |
