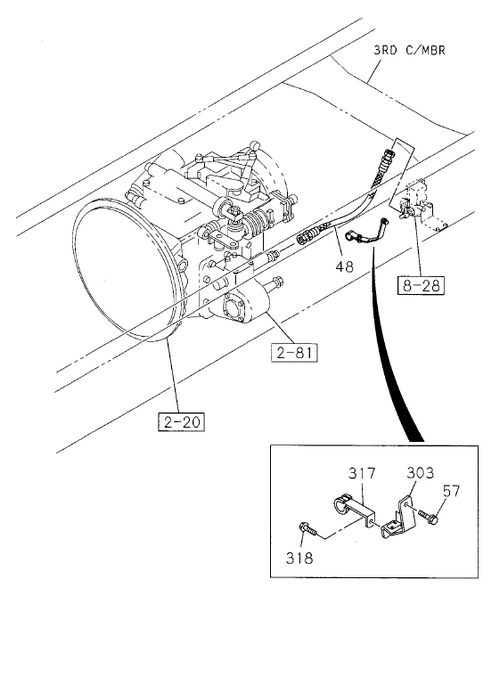

2-85 | POWER TAKE OFF CONTROL
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 317 | I1-09701 215-1 | CLIP; NYLON TUBE | 1 | 1111- | A | PTO CONTROL<SV6> (A) ID=15 L=22 H=30 | ||
| 48 | I1-09363 970-0 | HOSE; FLEX,PTO | 1 | 1111- | A | PTO CONTROL<SV6> L=720 | ||
| 57 | I0-28651 025-0 | BOLT; BRKT | 1 | 1111- | A | PTO CONTROL<SV6> M10X2 5 FLANGE IDN | ||
| 303 | I8-98136 973-0 | BRACKET; CLIP | 1 | 1111- | A | PTO CONTROL<SV6> | ||
| 318 | I0-28650 820-0 | BOLT; CLIP | 2 | 1111- | A | PTO CONTROL<SV6> M8X2 0 FLANGE IDN | ||
| 153 | I0-91180 108-0 | NUT; CLIP | 1 | 1111- | A | PTO CONTROL<SV6> M8 FLANGE | ||
| 317 | I1-09700 097-1 | CLIP; NYLON TUBE | 1 | 1111- | A | PTO CONTROL<SV6> (B) ID=12 L=70 |
