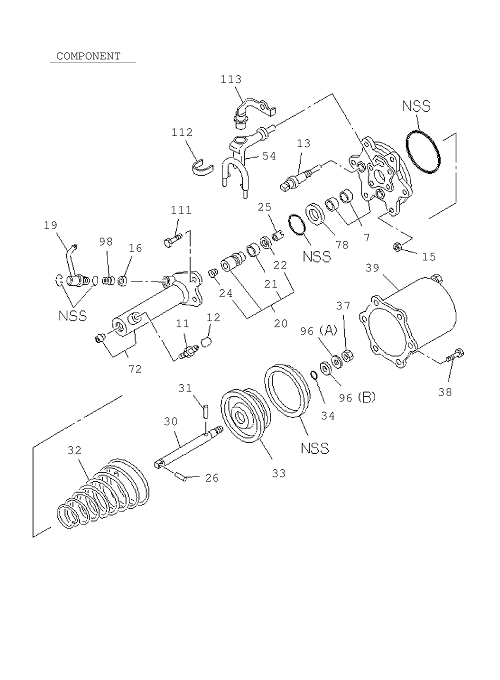

| 96 |
I1-47829 032-0 |
|
WASHER |
1 |
1111- |
|
(A) |
|
| 33 |
I1-47812 025-0 |
|
PLATE; PISTON,SHELL,AIR MASTER |
1 |
1111- |
|
|
|
| 22 |
I9-83325 077-0 |
|
RING; PISTON,HYDRAULIC |
1 |
1111- |
|
|
|
| 78 |
I1-47819 232-0 |
|
COLLAR; AIR MASTER |
1 |
1111- |
|
|
|
| 98 |
I1-47824 039-0 |
|
SPRING; VALVE |
1 |
1111- |
|
|
|

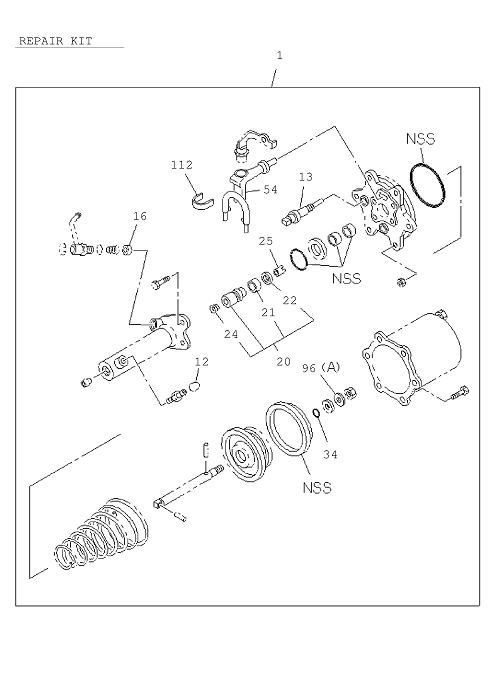

| 1 |
I1-85576 208-0 |
|
REPAIR KIT; AIR MASTER |
1 |
1111- |
|
1 YEAR |
|
| 15 |
I8-97096 430-0 |
|
NUT; END PLATE TO SHELL,AIR MASTER |
7 |
1111- |
|
M10 FLANGE |
|
| 111 |
I1-47819 234-0 |
|
BOLT; CYL,AIR MASTER |
3 |
1111- |
|
|
|
| 37 |
I0-91111 512-0 |
|
NUT; PUSH ROD,SHELL,AIR MASTER |
1 |
1111- |
|
M12 |
|
| 78 |
I1-47819 232-0 |
|
COLLAR; AIR MASTER |
1 |
1111- |
|
|
|
| 13 |
I1-47819 236-0 |
|
SWITCH; WARNING,AIR MASTER |
1 |
1111- |
|
|
|
| 30 |
I1-47829 124-0 |
|
ROD; PUSH,AIR MASTER |
1 |
1111- |
|
|
|
| 72 |
I1-47811 150-0 |
|
CYLINDER; AIR MASTER |
1 |
1111- |
|
|
|
| 30 |
I1-47829 124-0 |
|
ROD; PUSH,AIR MASTER |
1 |
1111- |
|
|
|
| 7 |
I1-47829 127-0 |
|
PLATE; END,AIR MASTER |
1 |
1111- |
|
|
|
| 7 |
I1-47829 127-0 |
|
PLATE; END,AIR MASTER |
1 |
1111- |
|
|
|
| 26 |
I1-47829 039-0 |
|
PIN; HYD PISTON,AIR MASTER |
1 |
1111- |
|
|
|
| 113 |
I1-47819 237-0 |
|
HOLDER; EXH COVER,AIR MASTER |
1 |
1111- |
|
|
|
| 32 |
I1-47824 037-0 |
|
SPRING; CYL SHELL,AIR MASTER |
1 |
1111- |
|
|
|
| 19 |
I1-47819 235-0 |
|
CONNECTOR; END PLATE,AIR MASTER |
1 |
1111- |
|
|
|
| 33 |
I1-47812 025-0 |
|
PLATE; PISTON,SHELL,AIR MASTER |
1 |
1111- |
|
|
|
| 24 |
I1-47829 132-0 |
|
SPRING; HYD PISTON,AIR MASTER |
1 |
1111- |
|
|
|
| 21 |
I1-47821 041-0 |
|
GASKET; CUP |
1 |
1111- |
|
|
|
| 112 |
I1-47819 188-0 |
|
CLAMP; EXH COVER,AIR MASTER |
1 |
1111- |
|
|
|
| 34 |
I9-09561 111-0 |
|
GASKET |
1 |
1111- |
|
ID=11.0 |
|
| 31 |
I1-47829 126-0 |
|
PIN; STRAIGHT |
1 |
1111- |
|
|
|
| 113 |
I1-47819 237-0 |
|
HOLDER; EXH COVER,AIR MASTER |
1 |
1111- |
|
|
|
| 11 |
I9-83331 704-0 |
|
PLUG; CAP,AIR MASTER |
1 |
1111- |
|
|
|
| 39 |
I1-47811 148-0 |
|
SHELL; CYL,AIR MASTER |
1 |
1111- |
|
|
|
| 24 |
I1-47829 132-0 |
|
SPRING; HYD PISTON,AIR MASTER |
1 |
1111- |
|
|
|
| 111 |
I1-47819 234-0 |
|
BOLT; CYL,AIR MASTER |
3 |
1111- |
|
|
|
| 16 |
I1-47812 024-0 |
|
VALVE ASM |
1 |
1111- |
|
|
|
| 98 |
I1-47824 039-0 |
|
SPRING; VALVE |
1 |
1111- |
|
|
|
| 13 |
I1-47819 236-0 |
|
SWITCH; WARNING,AIR MASTER |
1 |
1111- |
|
|
|
| 37 |
I0-91111 512-0 |
|
NUT; PUSH ROD,SHELL,AIR MASTER |
1 |
1111- |
|
M12 |
|
| 72 |
I1-47811 150-0 |
|
CYLINDER; AIR MASTER |
1 |
1111- |
|
|
|
| 31 |
I1-47829 126-0 |
|
PIN; STRAIGHT |
1 |
1111- |
|
|
|
| 19 |
I1-47819 235-0 |
|
CONNECTOR; END PLATE,AIR MASTER |
1 |
1111- |
|
|
|
| 54 |
I1-47819 187-0 |
|
COVER; EXH,END PLATE,AIR MASTER |
1 |
1111- |
|
|
|
| 32 |
I1-47824 037-0 |
|
SPRING; CYL SHELL,AIR MASTER |
1 |
1111- |
|
|
|
| 12 |
I9-83335 044-0 |
|
PROTECTOR; CAP,AIR MASTER |
1 |
1111- |
|
|
|
| 25 |
I1-47812 023-0 |
|
SEAL; VALVE |
1 |
1111- |
|
|
|
| 96 |
I1-47829 053-0 |
|
WASHER |
1 |
1111- |
|
(B) |
|
| 39 |
I1-47811 148-0 |
|
SHELL; CYL,AIR MASTER |
1 |
1111- |
|
|
|
| 20 |
I1-47812 022-0 |
|
PISTON ASM; HYDRAULIC |
1 |
1111- |
|
|
|
| 38 |
I9-83315 078-0 |
|
BOLT; END PLATE TO SHELL,AIR MASTER |
6 |
1111- |
|
|
|
