| 2 |

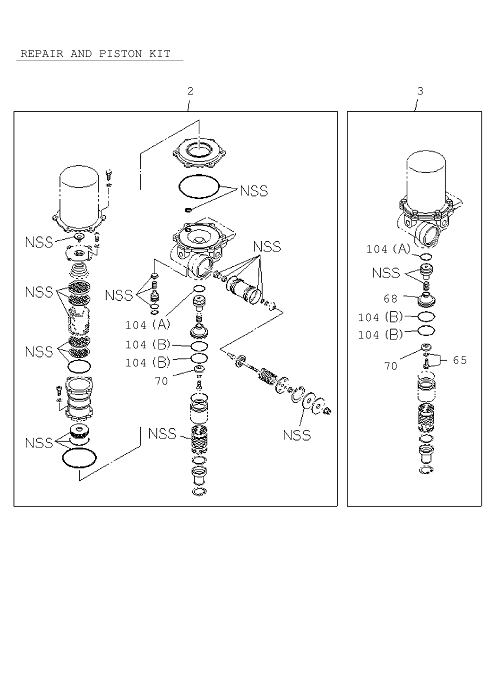

I8-98226 323-0 |
|
REPAIR KIT; AIR DRYER |
1 |
1210- |
|
A |
|
| 9 |
I0-92134 315-0 |
|
CONNECTOR; PIPE,AIR DRYER |
1 |
1111- |
|
A |
M22 & PT1/2 ELBOW |
| 65 |
I1-48199 517-0 |
|
BOLT; PURGE VLV |
1 |
1111- |
|
A |
|
| 84 |
I1-48199 425-0 |
|
SPRING; AIR DRYER |
1 |
1111- |
|
A |
(A) |
| 8 |
I1-09660 960-0 |
|
CONNECTOR; OUT,AIR DRYER |
1 |
1111- |
|
A |
DIN12 & R1/2 ELBOW |
| 7 |
I1-48199 529-0 |
|
RING; SNAP,AIR DRYER |
1 |
1111- |
|
A |
(B) |
| 7 |
I1-48199 520-0 |
|
RING; SNAP,AIR DRYER |
2 |
1111- |
|
A |
(C) |
| 1 |

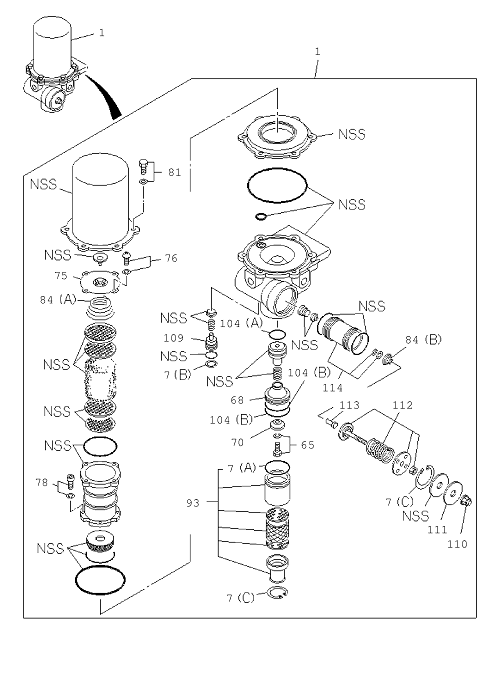

I8-98225 286-0 |
|
DRYER; AIR |
1 |
1111- |
|
A |
|
| 11 |

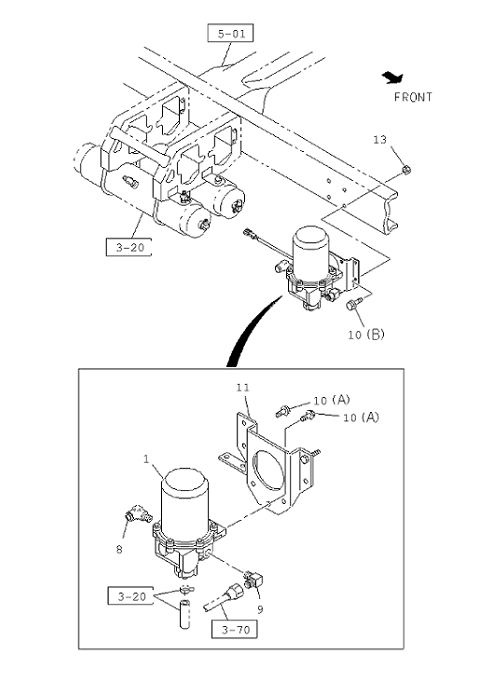

I8-98180 369-A |
|
BRACKET; AIR DRYER |
1 |
1111- |
|
A |
|
| 111 |
I1-48199 526-0 |
|
PLATE; GOVERNOR |
1 |
1111- |
|
A |
|
| 70 |
I1-48199 504-0 |
|
VALVE; AIR DRYER |
1 |
1111- |
|
A |
|
| 81 |
I1-48199 436-0 |
|
BOLT; CASE,AIR DRYER |
6 |
1111- |
|
A |
|
| 110 |
I1-48199 527-0 |
|
NUT; CAP |
1 |
1111- |
|
A |
|
| 113 |
I1-48199 522-0 |
|
STEM; EXHAUST |
1 |
1111- |
|
A |
|
| 3 |
I8-98226 322-0 |
|
PISTON KIT; AIR DRYER |
1 |
1210- |
|
A |
|
| 10 |
I0-28651 035-0 |
|
BOLT; AIR DRYER |
3 |
1111- |
|
A |
(B) M10X35 FLANGE IDN |
| 13 |
I7-05110 010-A |
|
NUT; AIR DRYER |
2 |
1111- |
|
A |
|
| 75 |
I1-48199 427-0 |
|
COVER; CASE,AIR DRYER |
1 |
1111- |
|
A |
|
| 13 |
I7-05110 010-A |
C |
NUT; AIR DRYER |
2 |
1111- |
|
A |
|
| 114 |
I1-48199 521-0 |
|
PISTON ASM; GOVERNOR |
1 |
1111- |
|
A |
|
| 109 |
I1-48199 539-0 |
|
STOPPER; CHECK VALVE |
1 |
1111- |
|
A |
|
| 7 |
I1-48199 579-0 |
|
RING; SNAP,AIR DRYER |
1 |
1111- |
|
A |
(A) |
| 11 |
I8-98180 369-A |
A |
BRACKET; AIR DRYER |
1 |
1111- |
|
A |
|
| 84 |
I1-48199 523-0 |
|
SPRING; AIR DRYER |
1 |
1111- |
|
A |
(B) |
| 3 |
I1-85576 383-0 |
|
PISTON KIT; AIR DRYER |
1 |
1111- |
|
A |
|
| 104 |
I8-98226 321-0 |
|
GASKET |
1 |
1210- |
|
A |
(A) |
| 104 |
I1-48199 495-0 |
|
GASKET |
1 |
1111- |
|
A |
(A) |
| 2 |
I8-98226 323-0 |
|
REPAIR KIT; AIR DRYER |
1 |
1111- |
|
A |
|
| 10 |
I0-28051 025-0 |
|
BOLT; AIR DRYER |
3 |
1111- |
|
A |
(A) M10X25 FLANGE |
| 78 |
I1-48199 417-0 |
|
BOLT; OIL FILTER,AIR DRYER |
4 |
1111- |
|
A |
|
| 93 |
I1-48199 619-0 |
|
SILENCER; AIR DRYER |
1 |
1111- |
|
A |
|
| 1 |
I8-98225 286-0 |
C |
DRYER; AIR |
1 |
1111- |
|
A |
|
| 112 |
I1-48199 524-0 |
|
SCREW & SPRING ASM; AIR DRYER |
1 |
1111- |
|
A |
|
| 104 |
I1-48199 496-0 |
|
GASKET |
2 |
1111- |
|
A |
(B) |
| 76 |
I1-48199 412-0 |
|
BOLT; COVER,AIR DRYER |
4 |
1111- |
|
A |
|
| 68 |
I1-48199 515-0 |
|
BODY; VALVE |
1 |
1111- |
|
A |
|
