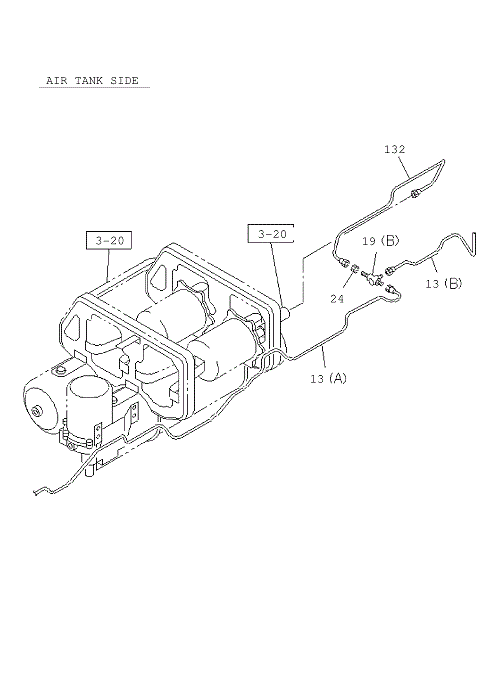

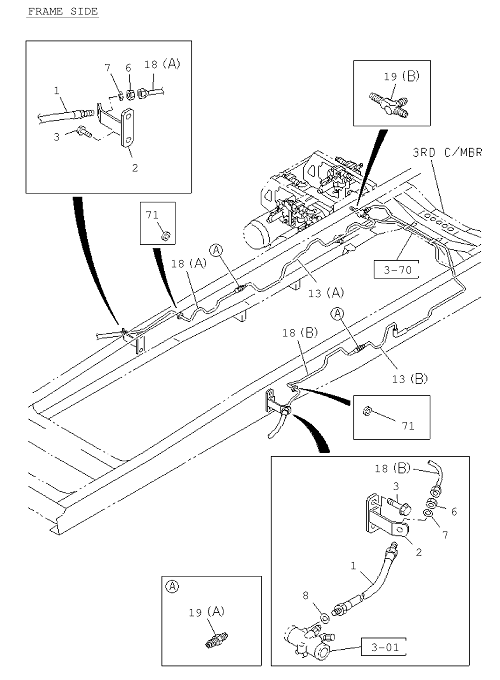

3-52 | BRAKE PIPING; OIL,FRONT
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 13 | I1-47428 730-0 | PIPE; OIL,UNION TO UNION | 1 | 1111- | A | (A) L=921 SERVICED BY L=1000 | ||
| 132 | I8-98183 131-A | PIPE; OIL,BRK,HYD UNIT | 1 | 1112- | L=895 SERV | |||
| 132 | I1-47428 729-0 | PIPE; OIL,BRK,HYD UNIT | 1 | 1111- | A | L=895 SERVICED BY L=900 | ||
| 2 | I8-98180 131-0 | BRACKET; FLEX HOSE,FRT BRK | 2 | 1111- | A | |||
| 6 | I9-09840 280-0 | NUT; FLEX HOSE,FRT BRK | 2 | 1111- | A | M12 | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1111- | A | ID=2 4 OD=3 0 T=17 | ||
| 18 | I7-86005 314-A | PIPE ASM;FRT BRAKE FTR-TH | 1 | 1405- | A | TRACTOR HEAD | ||
| 7 | I0-91510 512-0 | WASHER; LK,FLEX HOSE,FRT BRK | 2 | 1111- | A | ID=12.2 | ||
| 3 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,FRT BRK | 4 | 1111- | A | M8X2 5 FLANGE IDN | ||
| 8 | I9-09920 472-0 | GASKET; FLEX HOSE,FRT BRK | 2 | 1111- | A | ID=9 OD=17 | ||
| 71 | I9-09956 092-A | GROMMET; OIL PIPE | 2 | 1111- | A | ID=2 4 OD=3 0 T=17 | ||
| 24 | I9-09840 280-0 | NUT; UNION,OIL PIPE | 1 | 1111- | A | M12 | ||
| 19 | I0-92138 906-0 | UNION; OIL PIPE | 1 | 1111- | A | (B) M12 3WAY | ||
| 1 | I0-05212 610-0 | HOSE; FLEX,FRT BRK | 2 | 1111- | A | L=610 | ||
| 13 | I1-47428 546-0 | PIPE; OIL,UNION TO UNION | 1 | 1111- | A | (B) L=2547 SERVICED BY L=2650 | ||
| 19 | I0-92113 006-0 | UNION; OIL PIPE | 2 | 1111- | A | (A) M12 L=40 | ||
| 18 | I1-47428 728-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1111- | A | (B) L=745 SERVICED BY L=800 | ||
| 18 | I1-47428 726-0 | PIPE; OIL,UNION TO FRT FLEX HOSE | 1 | 1111- | A | (A) L=643 SERVICED BY L=650 | ||
| 13 | I1-47428 546-0 | PIPE; OIL,UNION TO UNION | 1 | 1111- | A | (B) L=2547 SERVICED BY L=2650 |
