3-58 | FIXING PARTS; OIL PIPING
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

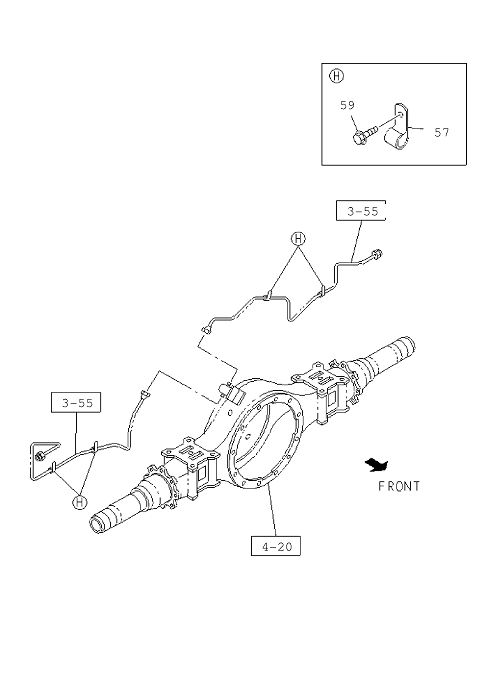

| 59 | I0-28050 810-0 | BOLT; BRK PIPE,RR AXLE | 4 | 1111- | A | M8X10 FLANGE | ||
| 82 | I9-09524 625-0 | CLIP; OIL PIPE | 1 | 1111- | A | (B) ID=7 L=16 | ||
| 9 | I0-28650 830-0 | BOLT; BRKT | 1 | 1111- | A | M8X3 0 FLANGE | ||
| 82 | I9-09524 625-0 | CLIP; OIL PIPE | 1 | 1111- | A | (B) ID=7 L=16 | ||
| 67 | I0-91180 108-0 | NUT; BRKT | 1 | 1111- | A | M8 FLANGE | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 5 | 1111- | A | WHEEL BASE 5000MM(50W) ID=6.35 | ||
| 58 | I1-09701 247-1 | CLIP; OIL PIPE | 6 | 1111- | A | ID=6.35 | ||
| 56 | I0-28650 820-0 | BOLT; CLIP | 1 | 1111- | A | M8X2 0 FLANGE IDN | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 7 | 1111- | A | WHEEL BASE 6000MM(60W) ID=6.35 | ||
| 1 | I8-98012 254-1 | CLIP; OIL PIPE TO BODY | 4 | 1111- | A | (B) | ||
| 57 | I0-95234 635-0 | CLIP; BRK PIPE,RR AXLE | 4 | 1111- | A | ID=7 L=20 | ||
| 1 | I1-09701 247-1 | CLIP; OIL PIPE TO BODY | 6 | 1111- | A | (A) ID=6.35 | ||
| 112 | I1-09701 247-1 | CLIP; OIL PIPE | 3 | 1111- | A | WHEEL BASE 4200MM(42W) ID=6.35 | ||
| 82 | I1-09709 273-1 | CLIP; OIL PIPE | 1 | 1111- | A | (A) ID=6.35 & 6.35 | ||
| 68 | I1-47475 519-0 | BRACKET; CLIP | 1 | 1111- | A |
