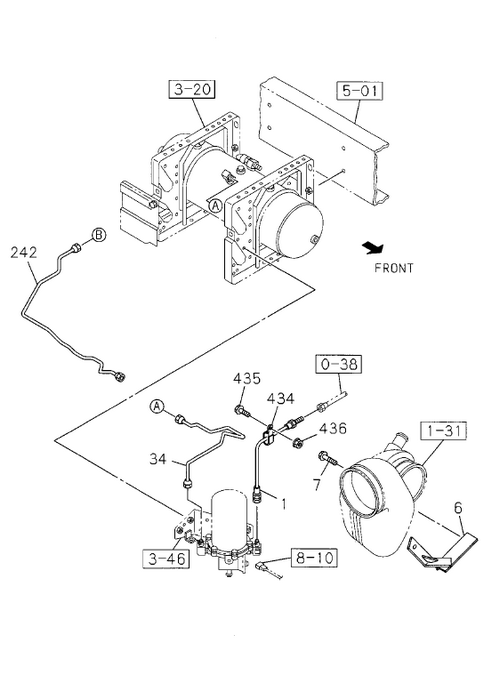

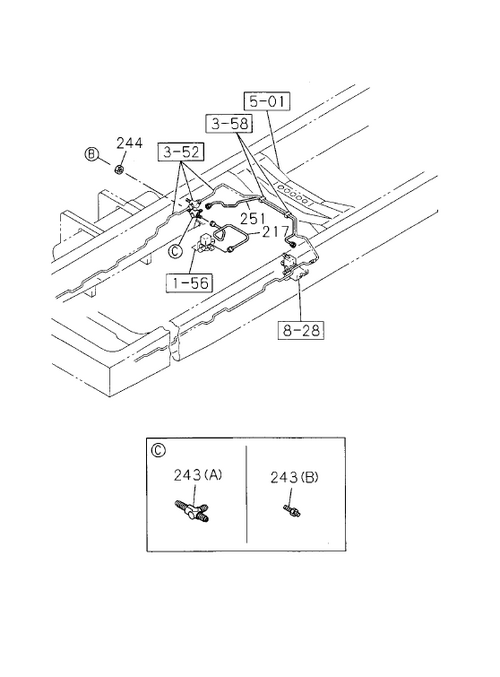

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | 1 | 1111- | A | SERVICED BY L=2000 ID=10 | ||
| 374 | I8-98179 708-0 | CONNECTOR | 1 | 1111- | A | EXC. PTO CONTROL<SV6> | ||
| 316 | I0-91110 522-0 | NUT; FLEX HOSE | 1 | 1111- | A | M2 2 | ||
| 450 | I1-47475 530-0 | BRACKET; CLIP | 1 | 1111- | A | (A) L=90 B=25 | ||
| 8 | I0-91180 108-0 | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 1111- | A | M8 FLANGE | ||
| 229 | I1-09660 873-0 | ADAPTER; NYLON TUBE | 1 | 1111- | A | DIN8 & M12 STRAIGHT | ||
| 377 | I0-28650 825-0 | BOLT; BRKT FIX | 1 | 1111- | A | (A) M8X2 5 FLANGE IDN | ||
| 12 | I0-91111 512-0 | NUT; UNION | 1 | 1111- | A | EXC. PTO CONTROL<SV6> M12 | ||
| 35 | I0-91180 108-0 | NUT; BRKT | 2 | 1111- | A | EXC. PTO CONTROL<SV6> M8 FLANGE | ||
| 7 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 1111- | A | M8X3 0 FLANGE | ||
| 436 | I0-91180 108-0 | NUT; CLIP | 4 | 1111- | A | M8 FLANGE | ||
| 435 | I0-28650 820-0 | BOLT; CLIP | 4 | 1111- | A | M8X2 0 FLANGE IDN | ||
| 434 | I1-09700 606-0 | CLIP | 1 | 1111- | A | (B) ID=15 H=24 L=2 0 | ||
| 377 | I0-28650 830-0 | BOLT; BRKT FIX | 1 | 1111- | A | (B) M8X3 0 FLANGE | ||
| 297 | I1-87411 006-0 | TUBE; NYLON | 1 | 1111- | A | SERVICED BY L=2000 OD=8 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | 1 | 1111- | A | SERVICED BY L=2000 OD=12 | ||
| 450 | I1-47479 064-0 | BRACKET; CLIP | 1 | 1111- | A | (B) L=65 | ||
| 305 | I8-98120 049-0 | UNION ASM; NYLON TUBE | 1 | 1111- | A | EXC. PTO CONTROL<SV6> | ||
| 428 | I0-91180 108-0 | NUT; BRKT | 1 | 1111- | A | M8 FLANGE | ||
| 465 | I9-99204 513-0 | PLUG | 1 | 1111- | A | EXC. PTO CONTROL<SV6 > PT1/4 | ||
| 221 | I0-28650 835-0 | BOLT; BRKT | 2 | 1111- | A | EXC. PTO CONTROL<SV6> M8X3 5 FLANGE | ||
| 123 | I8-98118 545-0 | BRACKET; UNION | 1 | 1111- | A | EXC. PTO CONTROL<SV6> | ||
| 21 | I8-98188 203-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1111- | A | L=2450 | ||
| 434 | I0-95235 536-0 | CLIP | 3 | 1111- | A | (A) ID=16 L=20 | ||
| 6 | I8-98188 707-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 1111- | A | |||
| 21 | I8-98188 203-A | PIPE; AIR,UNION TO AIR DRYER | 1 | 1111- | A | L=2450 | ||
| 450 | I1-47479 064-1 | BRACKET; CLIP FTR90 | 1 | 1111- | A | (B) L=65 | ||
| 1 | I1-09363 913-0 | HOSE; FLEX,AIR TANK | 1 | 1111- | A |
