3-78 | FIXING PARTS; AIR PIPING
GIGA
GIGA FTR

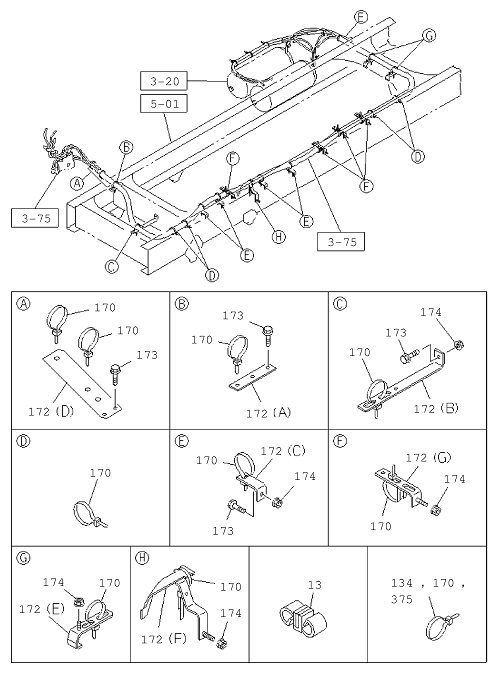

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 375 | I1-09707 183-0 | CLIP; AIR PIPE | 2 | 1111- | A | L=350 | ||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 1111- | A | L=350 | ||
| 172 | I8-98177 873-0 | BRACKET; TUBE CLIP | 4 | 1111- | A | (G) | ||
| 172 | I8-98031 420-2 | BRACKET; TUBE CLIP | 1 | 1111- | A | (D) | ||
| 172 | I8-98047 730-0 | BRACKET; TUBE CLIP | 2 | 1111- | A | (E) | ||
| 172 | I1-47477 716-1 | BRACKET; TUBE CLIP | 5 | 1111- | A | (C) L=45 B=2 0 | ||
| 172 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 1111- | A | (B) L=225 | ||
| 173 | I0-28650 820-0 | BOLT; CLIP BRKT | 2 | 1111- | A | M8X2 0 FLANGE IDN | ||
| 170 | I1-09707 183-0 | CLIP; NYLON TUBE | 25 | 1111- | A | L=350 | ||
| 173 | I0-28650 825-0 | BOLT; CLIP BRKT | 2 | 1111- | A | M8X2 5 FLANGE IDN | ||
| 172 | I8-98166 032-0 | BRACKET; TUBE CLIP | 1 | 1111- | A | (F) | ||
| 174 | I0-91180 108-0 | NUT; CLIP BRKT | 13 | 1111- | A | M8 FLANGE | ||

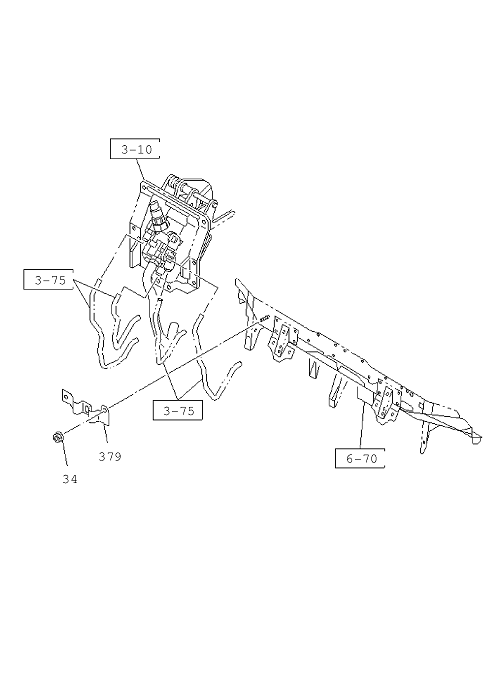

| 34 | I0-91180 106-0 | NUT; BRKT | 2 | 1111- | A | M6 FLANGE | ||
| 173 | I0-28650 830-0 | BOLT; CLIP BRKT | 5 | 1111- | A | M8X3 0 FLANGE | ||
| 13 | I1-09709 273-1 | CLIP; AIR PIPE | 1 | 1111- | A | ID=6.35 & 6.35 | ||
| 172 | I1-47479 575-0 | BRACKET; TUBE CLIP | 1 | 1111- | A | (A) | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 1111- | A |
