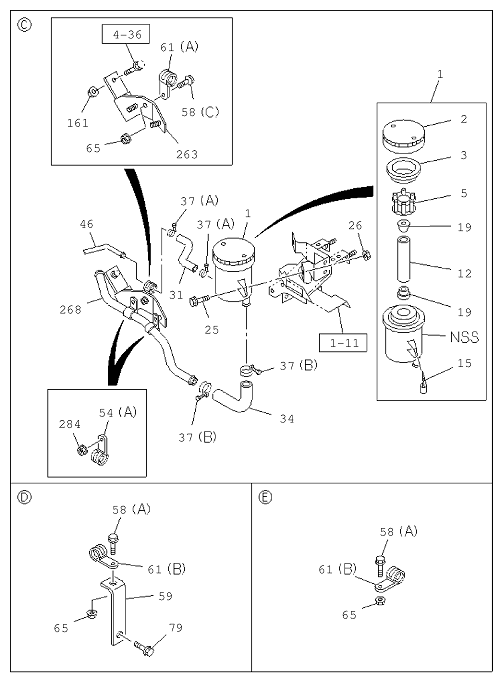

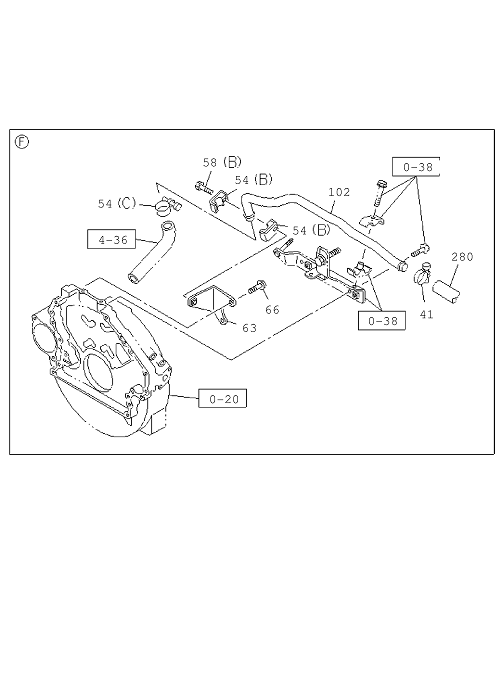

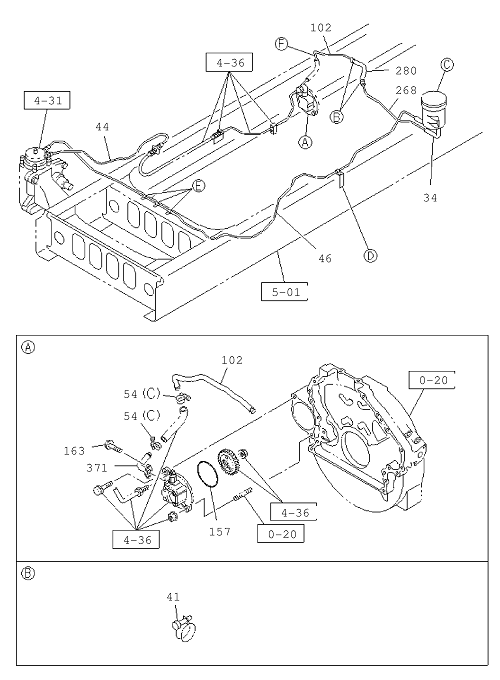

4-35 | POWER STEERING CONTROL; CHASSIS SIDE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 46 | I8-98183 562-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 1111- | A | L=3000 | ||
| 37 | I1-09704 082-0 | CLIP; HOSE,P/S | 2 | 1111- | A | (A) ID=26 | ||
| 66 | I0-28050 816-0 | BOLT; BRKT,OIL PIPE | 2 | 1111- | A | M8X16 FLANGE | ||
| 44 | I8-98188 211-A | PIPE; OIL,P/S UNIT TO NIPPLE | 1 | 1111- | A | |||
| 3 | I1-21249 003-1 | GASKET; OIL TANK,P/S | 1 | 1111- | A | |||
| 54 | I0-95235 836-0 | CLIP; OIL PIPE | 2 | 1111- | A | (A) ID=19 L=2 0 | ||
| 26 | I0-91180 108-0 | NUT; OIL TANK TO BRKT | 2 | 1111- | A | M8 FLANGE | ||
| 163 | I0-28050 816-0 | BOLT; OIL PIPE | 2 | 1111- | A | M8X16 FLANGE | ||
| 25 | I0-28650 825-0 | BOLT; OIL TANK BRKT | 2 | 1111- | A | M8X25 FLANGE IDN | ||
| 61 | I0-95235 536-0 | CLIP; OIL PIPE | 4 | 1111- | A | (B) ID=16 L=2 0 | ||
| 44 | I8-98188 211-A | PIPE; OIL,P/S UNIT TO NIPPLE | 1 | 1111- | A | |||
| 61 | I0-95235 286-0 | CLIP; OIL PIPE | 1 | 1111- | A | (A) ID=13 L=50 | ||
| 58 | I0-28050 845-0 | BOLT; CLIP | 2 | 1111- | A | (B) M8X45 FLANGE | ||
| 5 | I1-21235 007-1 | STRAINER; OIL TANK,P/S | 1 | 1111- | A | |||
| 63 | I8-97375 107-0 | BRACKET; CLIP,P/S | 1 | 1111- | A | |||
| 2 | I8-98166 876-0 | CAP; OIL TANK,P/S | 1 | 1111- | A | |||
| 58 | I0-28650 820-0 | BOLT; CLIP | 4 | 1111- | A | (A) M8X2 0 FLANGE IDN | ||
| 19 | I1-21249 004-0 | SEAT; OIL TANK | 2 | 1111- | A | |||
| 79 | I0-28650 825-0 | BOLT; BRKT | 1 | 1111- | A | M8X25 FLANGE IDN | ||
| 54 | I9-09915 005-1 | CLIP; OIL PIPE | 2 | 1111- | A | (C) ID=32 | ||
| 12 | I1-21235 011-0 | FILTER; MICROBON,OIL TANK,P/S | 1 | 1111- | A | |||
| 41 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1111- | A | ID=32 | ||
| 371 | I8-98072 089-1 | PIPE; OIL,INLET | 1 | 1111- | A | |||
| 268 | I8-98194 491-A | PIPE; OIL,FLEX HOSE TO FLEX HOSE | 1 | 1111- | A | |||
| 263 | I8-98188 572-A | BRACKET; P/S PIPE | 1 | 1111- | A | |||
| 37 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1111- | A | (B) ID=32 | ||
| 280 | I8-98179 991-0 | HOSE; P/S OIL PUMP,INL | 1 | 1111- | A | |||
| 1 | I8-98166 928-0 | TANK ASM; OIL,P/S | 1 | 1111- | A | |||
| 46 | I8-98183 562-A | PIPE; OIL,P/S UNIT TO OIL TANK | 1 | 1111- | A | L=3000 | ||
| 65 | I0-91180 108-0 | NUT; BRKT | 4 | 1111- | A | M8 FLANGE | ||
| 59 | I1-82699 085-0 | BRACKET; CLIP,OIL PIPE | 1 | 1111- | A | L=95 | ||
| 263 | I8-98188 572-A | BRACKET; P/S PIPE | 1 | 1111- | A | |||
| 268 | I8-98194 491-A | PIPE; OIL,FLEX HOSE TO FLEX HOSE | 1 | 1111- | A | |||
| 54 | I9-09915 005-1 | CLIP; OIL PIPE | 2 | 1111- | A | (C) ID=32 | ||
| 58 | I0-28650 830-0 | BOLT; CLIP | 1 | 1111- | A | (C) M8X3 0 FLANGE | ||
| 102 | I8-98080 186-2 | PIPE; SUCTION,P/S | 1 | 1111- | A | |||
| 284 | I0-91180 108-0 | NUT; PIPE | 2 | 1111- | A | M8 FLANGE | ||
| 34 | I8-98194 565-0 | HOSE; P/S OIL TANK,OUTLET | 1 | 1111- | A | |||
| 157 | I8-97386 295-0 | GASKET; P/S PUMP | 1 | 1111- | A | ID=105.6 | ||
| 161 | I0-91180 108-0 | NUT; P/S PIPE | 1 | 1111- | A | M8 FLANGE | ||
| 31 | I8-98196 261-0 | HOSE; P/S OIL TANK,INL | 1 | 1111- | A | |||
| 37 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1111- | A | (B) ID=32 | ||
| 54 | I1-09701 284-0 | CLIP; OIL PIPE | 4 | 1111- | A | (B) | ||
| 41 | I9-09915 005-1 | CLIP; HOSE,P/S | 2 | 1111- | A | ID=32 | ||
| 15 | I1-21249 016-0 | PLATE; FILTER,OIL TANK | 2 | 1111- | A |
