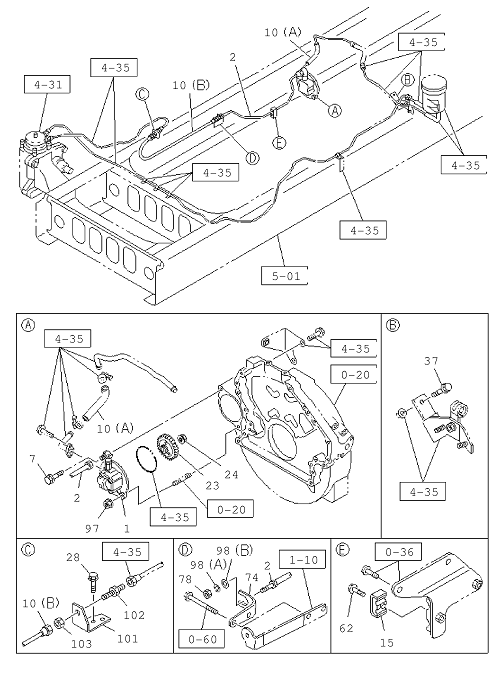

4-36 | POWER STEERING CONTROL; ENGINE SIDE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 7 | I0-28751 030-0 | BOLT; OIL PUMP,P/S | 1 | 1111- | A | M10X3 0 FLANGE | ||
| 97 | I0-91180 110-0 | NUT; OIL PUMP,P/S | 1 | 1111- | A | M10 FLANGE | ||
| 74 | I8-98060 044-1 | BRACKET; PIPE | 1 | 1111- | A | |||
| 62 | I0-28650 630-0 | BOLT; CLIP | 1 | 1111- | A | M6X3 0 FLANGE | ||
| 98 | I0-91610 520-0 | WASHER; LK,BRKT | 1 | 1111- | A | (B) ID=21 | ||
| 15 | I1-09701 212-2 | CLIP; OIL PIPE SUCTION | 1 | 1111- | A | ID=9 & 9 L=25 | ||
| 2 | I8-98086 746-A | PIPE ASM; OIL,SUCTION | 1 | 1111- | A | |||
| 2 | I8-98086 746-A | PIPE ASM; OIL,SUCTION | 1 | 1111- | A | |||
| 103 | I0-91111 522-0 | NUT; UNION | 1 | 1111- | A | M2 2 | ||
| 1 | I8-98190 459-0 | PUMP ASM; OIL,P/S | 1 | 1111- | A | |||
| 24 | I0-91180 112-0 | NUT; GEAR,P/S PUMP | 1 | 1111- | A | M12 FLANGE IDN | ||
| 10 | I1-09365 026-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 1111- | A | (B) L=460 | ||
| 28 | I0-28650 825-0 | BOLT; BRKT,FLEX HOSE,P/S | 2 | 1111- | A | M8X2 5 FLANGE IDN | ||
| 37 | I0-28650 825-0 | BOLT; P/S PUMP | 1 | 1111- | A | M8X2 5 FLANGE IDN | ||
| 23 | I8-94390 842-1 | GEAR; OIL PUMP | 1 | 1111- | A | Z=30 | ||
| 101 | I8-98183 677-0 | BRACKET; UNION | 1 | 1111- | A | |||
| 98 | I0-91510 620-0 | WASHER; LK,BRKT | 1 | 1111- | A | (A) ID=2 0.2 | ||
| 10 | I1-21115 205-0 | HOSE; FLEX,P/S OIL PUMP,INL | 1 | 1111- | A | (A) | ||
| 78 | I0-91111 520-0 | NUT; BRKT | 1 | 1111- | A | M2 0 | ||
| 102 | I1-09654 167-1 | UNION | 1 | 1111- | A | M2 0 & M2 2 STRAIGHT |
