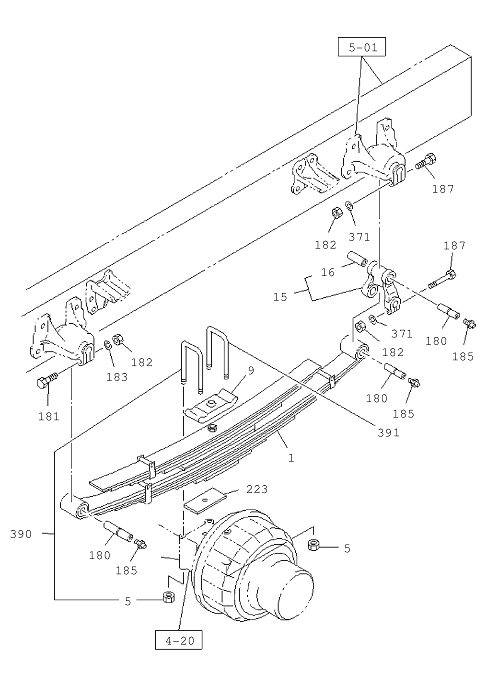

4-60 | REAR SUSPENSION
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 5 | I0-91112 824-0 | NUT; U-BOLT,RR SPR | 8 | 1111- | A | |||
| 181 | I0-10811 465-0 | BOLT; SPR & SHACKLE | 2 | 1111- | A | M14X65 | ||
| 371 | I0-91510 514-0 | WASHER; LK,SHACKLE | 4 | 1111- | A | ID=14.2 | ||
| 16 | I8-98081 830-0 | BUSHING; SHACKLE,RR SPR | 2 | 1111- | A | |||
| 180 | I1-51361 015-0 | PIN; RR SPR | 6 | 1111- | A | DO=28 L=131 PT1/8 | ||
| 9 | I1-51372 048-1 | PAD; U BOLT,RR SPR | 2 | 1111- | A | |||
| 187 | I0-10811 465-0 | BOLT; SPR & SHACKLE | 4 | 1111- | A | M14X65 | ||
| 223 | I1-51377 166-0 | SPACER; U BOLT,RR SPR | 2 | 1111- | A | WB 3200; 4200; 5000; 6000 MM | ||
| 182 | I7-05014 012-A | NUT; PIN,RR SPR | 2 | 1111- | A | M14 | ||
| 180 | I6-51361 015-0 | PIN; RR SPR | 6 | 1111- | A | (IADG) DO=28 L=131 PT1/8 | ||
| 15 | I1-51362 049-2 | SHACKLE; RR SPR | 2 | 1111- | A | |||
| 185 | I0-90301 410-0 | NIPPLE; GREASE,PIN,RR SPR | 4 | 1111- | A | PT1/8 STRAIGHT | ||
| 223 | I1-51377 372-0 | SPACER; U BOLT,RR SPR | 2 | 1512- | A | WB 6500MM | ||
| 391 | I1-51371 141-A | U-BOLT; RR SPRING | 4 | 1201- | A | L=455; W/O NUT | ||
| 183 | I0-91510 514-0 | WASHER; LK,PIN,RR SPR | 2 | 1111- | A | ID=14.2 | ||
| 390 | I1-87870 268-1 | U-BOLT SET; RR SPRING | 4 | 1111- | A | L=455 | ||
| 1 | I7-66020 319-A | SPRING ASM; LEAF,RR | 2 | 1111- | A |
