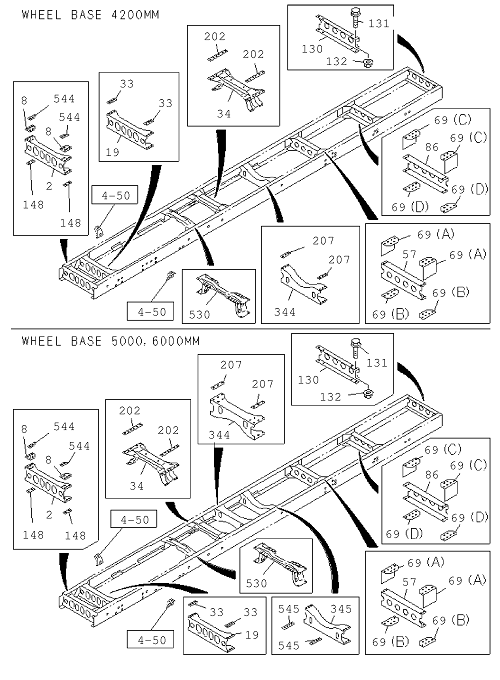

5-01 | FRAME AND OTHER PARTS
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 34 | I8-97610 854-2 | MEMBER; CROSS,3RD | 1 | 1111- | ABC | |||
| 26 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 1111- | ABC | (B) M16 | ||
| 69 | I8-97695 029-A | GUSSET; RR SUSP,UPR | 1 | 1111- | ABC | (C) | ||
| 25 | I8-98010 627-1 | WASHER; PL,BRKT | 28 | 1111- | ABC | (A) ID=15 | ||
| 82 | I7-05014 012-A | NUT; BRKT | 20 | 1111- | ABC | M14 | ||
| 105 | I1-53353 072-1 | BRACKET; RR SPR,RR | 2 | 1111- | ABC | |||
| 23 | I0-20951 450-0 | BOLT; BRKT,SPR | 6 | 1111- | ABC | (A) | ||
| 8 | I8-97611 027-0 | GUSSET; 1ST C/MBR | 2 | 1111- | ABC | |||
| 530 | I8-97695 023-A | MEMBER; CROSS,T/M UPR | 1 | 13105- | ABC | (A) UPPER | ||
| 106 | I0-20951 450-0 | BOLT; BRKT | 20 | 1111- | ABC | M14X50 | ||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1111- | ABC | |||
| 57 | I8-97695 019-A | MEMBER; CROSS,RR SUSP FRT | 1 | 1111- | ABC | |||
| 138 | I0-91510 814-0 | WASHER; LK,BRKT | 20 | 1111- | ABC | ID=14.2 | ||
| 132 | I0-91110 512-0 | NUT; END C/MBR | 4 | 1111- | ABC | M12 | ||
| 530 | I8-97638 949-0 | MEMBER; CROSS,T/M | 1 | 1111- | ABC | IDN | ||
| 11 | I8-97639 386-1 | BRACKET; ENG MTG | 1 | 1111- | ABC | |||
| 98 | I0-91510 814-0 | WASHER; LK,STOPPER | 16 | 1111- | ABC | ID=14.2 | ||
| 103 | I1-53357 029-1 | STOPPER; SUB SPR | 2 | 1111- | ABC | (B) | ||
| 118 | I7-05014 012-A | NUT; STOPPER | 16 | 1111- | ABC | M14 | ||
| 530 | I8-97695 024-A | MEMBER; CROSS,T/M LWR | 2 | 13105- | ABC | (B) LOWER | ||
| 23 | I0-20951 660-0 | BOLT; BRKT,SPR | 4 | 1111- | ABC | (B) | ||
| 86 | I8-97695 019-A | MEMBER; CROSS,RR SUSP RR | 1 | 1111- | ABC | |||
| 118 | I7-05014 012-A | NUT; STOPPER | 16 | 1111- | ABC | M14 | ||
| 1 | I8-97521 505-A | FRAME; ASM | 1 | 1111- | B | FTR90-P (5050) | ||
| 132 | I7-05012 010-A | NUT; END C/MBR | 4 | 1111- | ABC | M12 | ||
| 130 | I8-97695 020-A | MEMBER; CROSS,END | 1 | 1111- | ABC | |||
| 26 | I7-05014 012-A | NUT; BRKT,SPR | 14 | 1111- | ABC | (A) M14 | ||
| 24 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 1111- | ABC | |||
| 544 | I8-97611 030-0 | PLATE; CAB FRT MTG | 2 | 1111- | C | |||
| 86 | I8-97695 019-A | MEMBER; CROSS,RR SUSP RR | 1 | 1111- | ABC | |||
| 24 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 1111- | ABC | |||
| 69 | I8-97695 025-A | GUSSET; RR SUSP,UPR | 2 | 13105- | ABC | (B) | ||
| 101 | I1-53353 072-1 | BRACKET RR SPR,FTR | 2 | 1312- | A | |||
| 103 | I1-53356 038-1 | STOPPER; SUB SPR | 2 | 1111- | ABC | (A) | ||
| 69 | I8-97695 030-A | GUSSET; RR SUSP,UPR | 1 | 13105- | ABC | (C ) | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 1111- | BC | |||
| 69 | I8-97612 265-1 | GUSSET; RR SUSP,UPR | 1 | 1111- | ABC | (A) | ||
| 69 | I8-97695 030-A | GUSSET; RR SUSP,UPR | 1 | 1111- | ABC | (C) | ||
| 103 | I1-53357 029-1 | STOPPER SUB SPR,FTR | 2 | 1405- | A | |||
| 82 | I7-05014 012-A | NUT; BRKT | 20 | 1111- | ABC | M14 | ||
| 39 | I8-98043 649-0 | BRACKET; FRT SPR,RR | 1 | 1111- | ABC | |||
| 117 | I0-20951 450-0 | BOLT; STOPPER | 16 | 1111- | ABC | M14X50 | ||
| 69 | I8-97612 264-0 | GUSSET; RR SUSP,UPR | 1 | 1111- | ABC | (A) | ||
| 26 | I7-05014 012-A | NUT; BRKT,SPR | 14 | 1111- | ABC | (A) M14 | ||
| 69 | I8-97695 026-A | GUSSET; RR SUSP,UPR | 2 | 13105- | ABC | (D) | ||
| 24 | I8-98018 841-0 | BRACKET; FRT SPR,FRT | 1 | 1111- | ABC | |||
| 148 | I8-97611 039-0 | SPACER; C/MBR | 2 | 1111- | ABC | |||
| 19 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1111- | ABC | |||
| 39 | I8-98043 648-0 | BRACKET; FRT SPR,RR | 1 | 1111- | ABC | |||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1111- | ABC | |||
| 1 | I8-97521 605-A | FRAME; ASM | 1 | 1111- | C | FTR90-S (6050) | ||
| 69 | I8-97695 025-A | GUSSET; RR SUSP,UPR | 2 | 1111- | ABC | (B) | ||
| 131 | I0-50541 230-0 | BOLT; END C/MBR | 4 | 1111- | ABC | M12X3 0 W/LK WASHER | ||
| 13 | I0-28661 235-0 | BOLT; BRKT,ENG MTG | 12 | 1111- | ABC | M12X35 FLANGE | ||
| 24 | I8-98018 840-0 | BRACKET; FRT SPR,FRT | 1 | 1111- | ABC | |||
| 57 | I8-97695 019-A | MEMBER; CROSS,RR SUSP FRT | 1 | 1111- | ABC | |||
| 101 | I1-53353 072-1 | BRACKET; RR SPR,FRT | 2 | 1111- | ABC | |||
| 344 | I8-97695 004-A | MEMBER; CROSS,4TH | 1 | 1111- | ABC | |||
| 2 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1111- | ABC | |||
| 207 | I8-97611 244-0 | SPACER; 4TH C/MBR | 2 | 1111- | ABC | |||
| 545 | I8-97611 245-0 | SPACER; 5TH C/MBR | 2 | 1111- | BC | |||
| 19 | I8-97695 002-A | MEMBER; CROSS,2ND | 1 | 1111- | ABC | |||
| 1 | I8-97521 425-A | FRAME; ASM | 1 | 1111- | A | FTR90-L (4250) | ||
| 345 | I8-97695 004-A | MEMBER; CROSS,5TH | 1 | 1111- | BC | |||
| 69 | I8-97695 026-A | GUSSET; RR SUSP,UPR | 2 | 1111- | ABC | (D) | ||
| 33 | I8-97611 040-0 | SPACER; 2ND C/MBR,UPR | 2 | 1111- | ABC | |||
| 46 | I0-20951 450-0 | BOLT; BRKT FIX | 8 | 1111- | ABC | M14X50 | ||
| 25 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 1111- | ABC | (B) ID=16.2 | ||
| 2 | I8-97695 001-A | MEMBER; CROSS,1ST | 1 | 1111- | ABC | |||
| 544 | I8-97617 891-0 | PLATE; CAB FRT MTG | 2 | 1111- | AB | |||
| 18 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 12 | 1111- | ABC | M12 FLANGE | ||
| 202 | I8-97610 872-0 | SPACER; 3RD C/MBR | 2 | 1111- | ABC | |||
| 69 | I8-97695 029-A | GUSSET; RR SUSP,UPR | 1 | 13105- | ABC | (C ) | ||
| 103 | I1-53356 038-1 | STOPPER SUB SPR,FTR | 2 | 1312- | A | |||
| 11 | I8-97639 385-1 | BRACKET; ENG MTG | 1 | 1111- | ABC |
