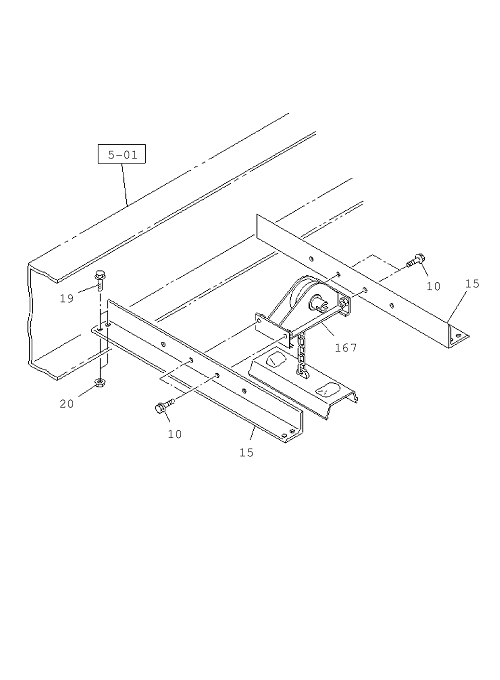

5-30 | SPARE TIRE CARRIER AND COVER
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 19 | I0-28051 025-0 | BOLT; C/MBR | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10X2 5 FLANGE | ||
| 20 | I7-05110 010-A | NUT; C/MBR | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10 FLANGE | ||
| 20 | I7-05110 010-A | C | NUT; C/MBR | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M10 FLANGE | |
| 167 | I1-53630 208-4 | HANGER; TIRE | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) | ||
| 15 | I1-53631 394-0 | MEMBER; CROSS,SPARE TIRE | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) | ||
| 10 | I0-28651 230-0 | BOLT; TIRE HANGER | 2 | 1111- | A | SPARE WHEEL CARRIER FRAME REAR(P10) M12X3 0 FLANGE |
