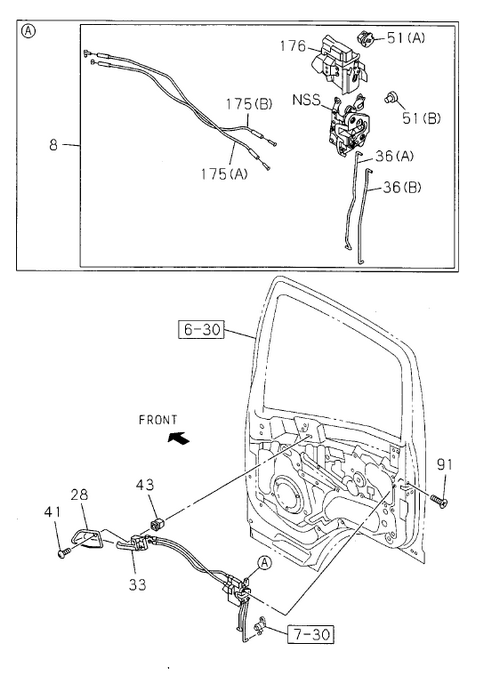

6-32 | FRONT DOOR LOCK AND HANDLE
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 36 | I8-98058 532-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1111- | A | (A) IDN | ||
| 33 | I8-97405 309-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1111- | A | DARK GRAY IDN | ||
| 41 | I0-72380 516-0 | SCREW; INSIDE HANDLE | 2 | 1111- | A | M5X16 HEX SOCKET IDN | ||
| 51 | I8-98058 227-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1111- | A | (A) | ||
| 175 | I8-98058 537-0 | CABLE ASM; LOCK CONTROL | 1 | 1111- | A | (A) IDN | ||
| 51 | I8-98058 228-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1111- | A | (B) IDN | ||
| 1 | I8-98037 101-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1111- | A | IDN | ||
| 28 | I8-97405 312-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1111- | A | DARK GRAY | ||
| 36 | I8-98058 535-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1111- | A | (B) IDN | ||
| 176 | I8-98058 239-0 | COVER; DOOR LOCK | 1 | 1111- | A | |||
| 1 | I8-98037 100-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 1111- | A | IDN | ||
| 51 | I8-98058 229-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 1111- | A | (B) IDN | ||
| 14 | I8-98029 173-2 | STRIKER; FRT DOOR | 2 | 1111- | A | |||
| 43 | I8-94279 078-A | GROMMET; SCREW,INSIDE LEVER,DOOR | 2 | 1111- | A | D=8.6X7.7 L=7.5 IDN | ||
| 175 | I8-98058 538-0 | CABLE ASM; LOCK CONTROL | 1 | 1111- | A | (A) IDN | ||
| 176 | I8-98058 238-0 | COVER; DOOR LOCK | 1 | 1111- | A | |||
| 139 | I8-98095 813-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1111- | A | BLACK IDN | ||
| 89 | I0-28050 610-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 1111- | A | M6X10 FLANGE IDN | ||
| 139 | I8-97333 303-0 | HOLDER; ROD,DOOR HANDLE | 1 | 1111- | A | WHITE IDN | ||
| 33 | I8-97405 310-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 1111- | A | DARK GRAY IDN | ||
| 43 | I8-94279 078-A | GROMMET; SCREW,INSIDE LEVER,DOOR | 2 | 1111- | A | D=8.6X7.7 L=7.5 IDN | ||
| 124 | I8-97422 055-1 | COVER; DOOR PULL | 1 | 1111- | A | IDN | ||
| 18 | I8-98004 343-2 | SCREW; DOOR STRIKER | 4 | 1111- | A | M8X2 0 CK-HEAD | ||
| 8 | I8-98029 053-A | LOCK; DOOR,FRT DOOR | 1 | 1111- | A | IDN | ||
| 28 | I8-97405 311-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 1111- | A | DARK GRAY | ||
| 91 | I8-98004 342-0 | BOLT; DOOR LOCK | 6 | 1111- | A | M6X14.5 | ||
| 36 | I8-98058 536-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1111- | A | (B) IDN | ||
| 51 | I8-98058 226-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 1111- | A | (A) | ||
| 175 | I8-98058 539-0 | CABLE ASM; LOCK CONTROL | 2 | 1111- | A | (B) IDN | ||
| 8 | I8-98029 052-A | LOCK; DOOR,FRT DOOR | 1 | 1111- | A | IDN | ||
| 124 | I8-97422 056-1 | COVER; DOOR PULL | 1 | 1111- | A | IDN | ||
| 36 | I8-98058 531-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 1111- | A | (A) IDN |
