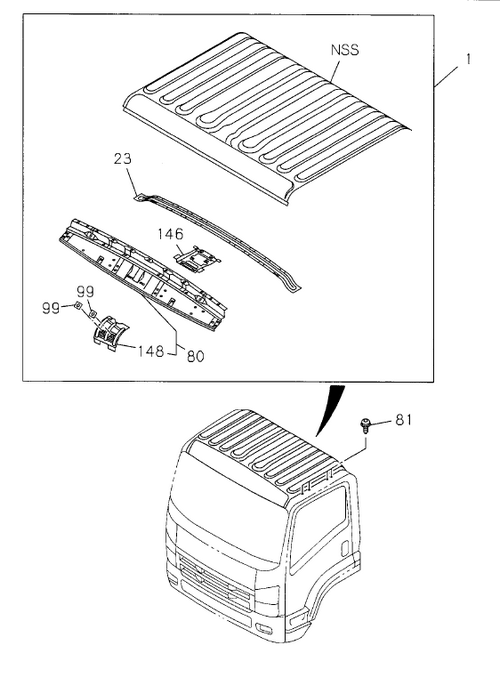

6-60 | ROOF PANEL
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 79 | I8-97584 200-1 | REINFORCEMENT; ROOF PANEL,RR | 1 | 1111- | A | |||
| 1 | I8-98246 477-0 | PANEL; ROOF | 1 | 1111- | A | IDN | ||
| 23 | I8-98019 316-0 | REINFORCEMENT; ROOF PANEL,FRT | 1 | 1111- | A | |||
| 81 | I8-98141 874-0 | BOLT; ROOF | 8 | 1111- | A | M8X15.5 HEX SOCKET IDN | ||
| 148 | I8-97411 015-1 | REINFORCEMENT; MIRROR | 1 | 1111- | A | |||
| 80 | I8-98196 921-0 | PANEL; HEADER,ROOF | 1 | 1111- | A | |||
| 99 | I1-61281 380-2 | SEAL; BODY,METAL | 2 | 1111- | A | 30X30 ID=20 T=0.7 | ||
| 146 | I8-98075 827-0 | REINFORCEMENT; ROOM LAMP | 1 | 1111- | A | IDN | ||
| 80 | I8-98196 921-0 | PANEL; HEADER,ROOF | 1 | 1111- | A | |||
| 1 | I8-98246 477-0 | PANEL; ROOF | 1 | 1111- | A | IDN |
