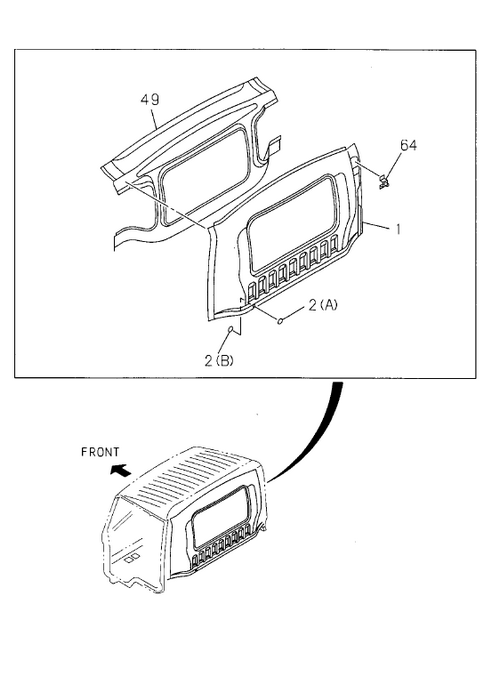

6-80 | BACK PANEL
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 1 | I8-97584 602-3 | PANEL; BACK OUTER | 1 | 1111- | A | |||
| 64 | I8-97584 611-1 | BRACKET; AIR INTAKE DUCT | 1 | 1111- | A | IDN | ||
| 2 | I1-76798 029-0 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 1111- | A | (A) OD=2 5 BLACK | ||
| 2 | I5-76777 035-0 | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 1111- | A | (B) OD=36 T=0.05 BLACK IDN | ||
| 2 | I1-76798 029-0 | C | GROMMET; LOCATION HOLE,BACK PANEL | 2 | 1111- | A | (A) OD=2 5 BLACK | |
| 49 | I8-97584 610-3 | PANEL; BACK INNER | 1 | 1111- | A |
