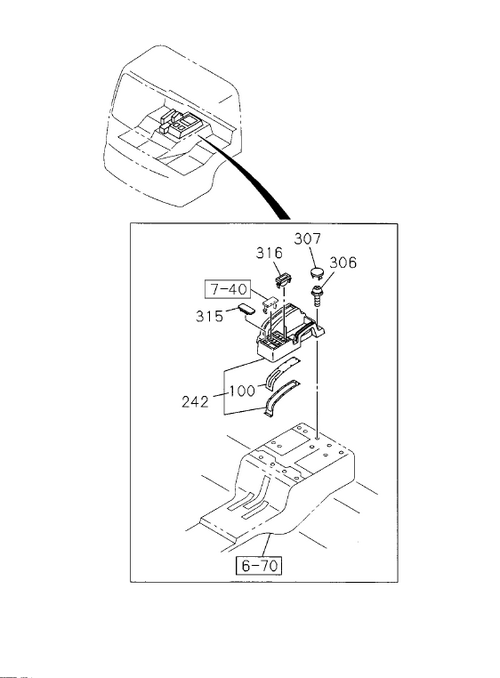

7-45 | CONSOLE BOX
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 315 | I8-97409 339-0 | COVER; HOLE,SW | 1 | 1111- | A | GRAY | ||
| 306 | I0-38050 616-0 | SCREW; TRAY | 4 | 1111- | A | M6X16 IDN | ||
| 100 | I1-72538 161-3 | RUBBER; CONSOLE,FRT | 1 | 1111- | A | |||
| 242 | I8-97407 950-2 | TRAY ASM; CTR CONSOLE | 1 | 1111- | A | GRAY | ||
| 307 | I8-97407 951-0 | COVER; HOLE,CTR CONSOLE | 4 | 1111- | A | GRAY | ||
| 316 | I8-94482 280-2 | BOX; COIN | 2 | 1111- | A | |||
| 43 | I8-94279 201-0 | SCREW; BRKT,PARCEL BOX | 2 | 1111- | A | M6X19.5 W/LK&PL WASHER | ||
| 190 | I8-98059 836-0 | BRACKET; PARCEL BOX,SEAT SIDE | 1 | 1111- | A |
