8-15 | FIXING PARTS; WIRING HARNESS
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 208 | I5-09707 030-1 | CLIP; HARNESS,MAG VLV | 1 | 1111- | A | L=250 IDN | ||
| 206 | I5-09707 030-1 | CLIP; FUEL TANK HARNESS | 2 | 1111- | A | L=250 IDN | ||
| 483 | I8-94224 891-1 | CLIP; ENG HARNESS | 2 | 1111- | A | (F) L=36 | ||

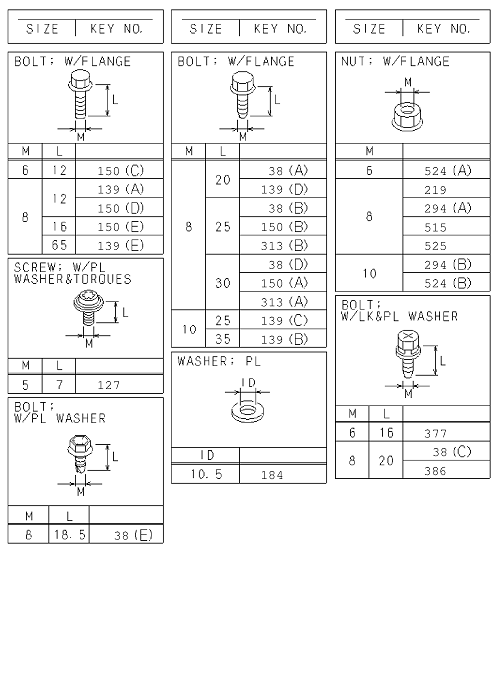

| 139 | I0-28651 035-0 | BOLT; BRKT | 1 | 1111- | A | (B) M10X35 FLANGE | ||

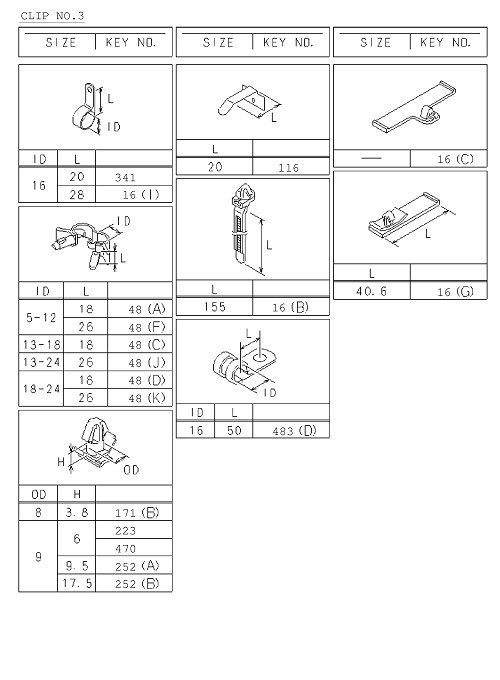

| 16 | I0-95235 556-0 | CLIP; HARNESS | 2 | 1111- | A | (I) ID=16 L=28 | ||
| 48 | I1-09709 293-0 | CLIP; FRAME HARNESS | 2 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (J) ID=13-18 L=26 | ||
| 150 | I0-28050 612-0 | BOLT; CLIP | 2 | 1111- | A | (C) M6X12 FLANGE | ||
| 48 | I1-09707 183-0 | CLIP; FRAME HARNESS | 1 | 1111- | A | (B) L=350 | ||
| 219 | I0-91180 108-0 | NUT | 2 | 1111- | A | M8 FLANGE | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 1111- | A | (E) ID=12 B=13 ID=6.5 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 11 | 1111- | A | 180X40 | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 1111- | A | L=250 IDN | ||
| 48 | I1-09701 214-0 | CLIP; FRAME HARNESS | 1 | 1111- | A | (E) ID=35 L=50 | ||
| 38 | I8-97086 825-0 | BOLT; CLIP,HARNESS | 3 | 1111-1202 | A | (C) M8X2 0 W/LK&PL WASHER | ||
| 213 | I9-09917 427-0 | CLIP; END CROSS HARNESS | 3 | 1111- | A | ID=14 L=44 | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1111- | A | M8 FLANGE | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1111- | A | (A) M8X3 0 FLANGE | ||
| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1111- | A | (A) ID=16 IDN | ||

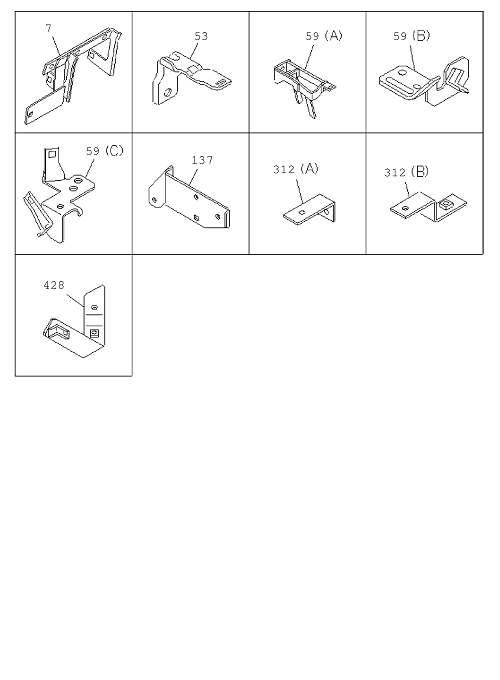

| 53 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 1111- | A | IDN | ||

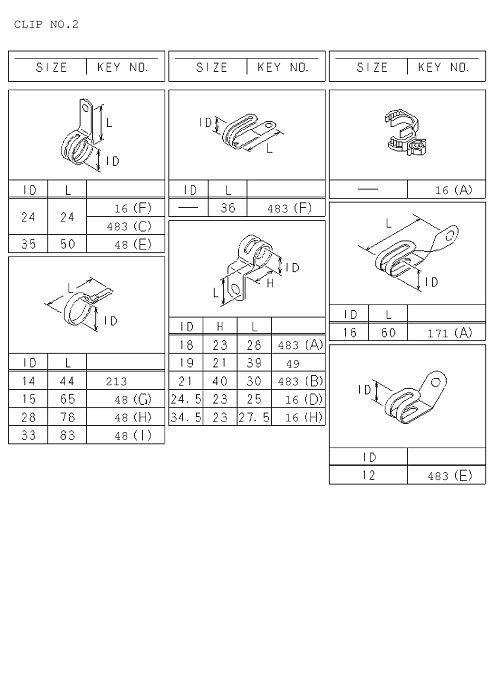

| 483 | I1-09701 001-1 | CLIP; ENG HARNESS | 1 | 1111- | A | (C) ID=24 L=24 | ||
| 16 | I8-94472 578-0 | CLIP; HARNESS | 1 | 1111- | A | (A) ID=16 IDN | ||
| 294 | I0-91180 108-0 | NUT | 1 | 1111- | A | (A) M8 FLANGE | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1111- | A | OD=2 5 BLACK | ||
| 483 | I8-98019 191-0 | CLIP; ENG HARNESS | 1 | 1212- | A | (G) ID=21 L=24 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 1111- | A | LAMPS TWO ROOF MARKER<TEC> L=20 | ||
| 294 | I0-91180 108-0 | NUT | 3 | 1111- | A | (A) M8 FLANGE | ||
| 313 | I0-28650 825-0 | BOLT; BRKT | 1 | 1111- | A | (B) M8X2 5 FLANGE IDN | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 1111- | A | OD=9 H=6 | ||
| 48 | I1-09709 296-0 | CLIP; FRAME HARNESS | 2 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (K) ID=18-24 L=26 | ||
| 171 | I1-09709 309-0 | CLIP; STARTER HARNESS | 1 | 1111- | A | (B) OD=8 H=3.8 | ||
| 48 | I1-09709 294-0 | CLIP; FRAME HARNESS | 2 | 1111- | A | WHEEL BASE 42 0 0MM(42W),WHEEL BASE 5000MM(50W) (D) ID=18-24 L=18 | ||
| 178 | I1-09332 011-1 | GROMMET; HARNESS | 1 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (A) ID=28 OD=35 T=25 | ||
| 294 | I7-05110 010-A | NUT | 2 | 1111- | A | (B) M10 FLANGE | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 1 | 1111- | A | (B) ID=28 OD=35 T=17 | ||
| 59 | I8-98168 184-0 | BRACKET; FRAME HARNESS | 1 | 1111- | A | (C) | ||
| 16 | I1-09701 001-1 | CLIP; HARNESS | 1 | 1111- | A | (F) ID=24 L=24 | ||
| 219 | I0-91180 108-0 | NUT | 1 | 1111- | A | M8 FLANGE | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 1111- | A | OD=2 5 BLACK | ||
| 483 | I1-09700 991-1 | CLIP; ENG HARNESS | 1 | 1111- | A | (B) ID=21 L=30 H=40 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 3 | 1111- | A | EXC. LAMPS TWO ROOF MARKER<TEC> L=20 | ||
| 38 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 3 | 1203- | A | (E) M8X18.5 W/PL WASHER | ||
| 312 | I8-97609 110-1 | BRACKET; CLIP HARNESS | 1 | 1111- | A | (B) | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 4 | 1111- | A | (A) M6 FLANGE | ||
| 428 | I8-97620 514-0 | BRACKET | 1 | 1111- | A | |||
| 150 | I0-28650 825-0 | BOLT; CLIP | 1 | 1111- | A | (B) M8X2 5 FLANGE | ||
| 49 | I1-09700 972-1 | CLIP; GEN HARNESS | 1 | 1111- | A | ID=19 L=39 H=21 | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 13 | 1111- | A | WHEEL BASE 4200MM(42W) (G) ID=15 L=65 | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 4 | 1111- | A | WHEEL BASE 42 0 0MM(42W),WHEEL BASE 5000MM(50W) (B) ID=28 OD=35 T=17 | ||
| 16 | I5-09707 030-1 | CLIP; HARNESS | 3 | 1111- | A | (E) L=250 IDN | ||
| 305 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 1111- | A | (B) L=140 IDN | ||
| 223 | I1-09709 178-0 | CLIP; AIR TANK HARNESS | 1 | 1111- | A | OD=9 H=6 | ||
| 59 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 1111- | A | (A) | ||
| 48 | I1-09701 291-0 | CLIP; FRAME HARNESS | 4 | 1111- | A | (I) ID=33 L=83 | ||
| 22 | I5-09707 031-1 | CLIP; ENG HARNESS | 2 | 1111- | A | L=140 IDN | ||
| 294 | I7-05110 010-A | NUT | 2 | 1111- | A | (B) M10 FLANGE | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1111- | A | (A) M8X3 0 FLANGE | ||
| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 2 | 1201- | A | (A) ID=18 H=23 L=28 | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 1 | 1111- | A | ID=10.5 | ||
| 16 | I8-97173 307-0 | CLIP; HARNESS | 18 | 1111- | A | (B) L=155 IDN | ||
| 48 | I1-09709 289-0 | CLIP; FRAME HARNESS | 4 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (F) ID=5-12 L=26 | ||
| 137 | I8-98193 417-0 | BRACKET; HARNESS CLAMP | 1 | 1111- | A | |||
| 252 | I1-09709 181-0 | CLIP; CONNECTOR FIX | 1 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (B) OD=9 H=17.5 | ||
| 139 | I0-28651 025-0 | BOLT; BRKT | 2 | 1111- | A | (C) M10X25 FLANGE IDN | ||
| 341 | I0-95235 535-0 | CLIP; BAND,STARTER RELAY | 1 | 1111- | A | ID=16 L=20 | ||
| 294 | I0-91180 108-0 | NUT | 1 | 1111- | A | (A) M8 FLANGE | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 21 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (G) ID=15 L=65 | ||
| 139 | I1-09044 072-1 | BOLT; BRKT | 1 | 1111- | A | (E) M8X65 FLANGE | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 1111- | A | (A) M8X12 FLANGE | ||
| 150 | I0-28050 816-0 | BOLT; CLIP | 1 | 1111- | A | (E) M8X16 FLANGE | ||
| 38 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 1 | 1111- | A | (B) M8X2 5 FLANGE IDN | ||

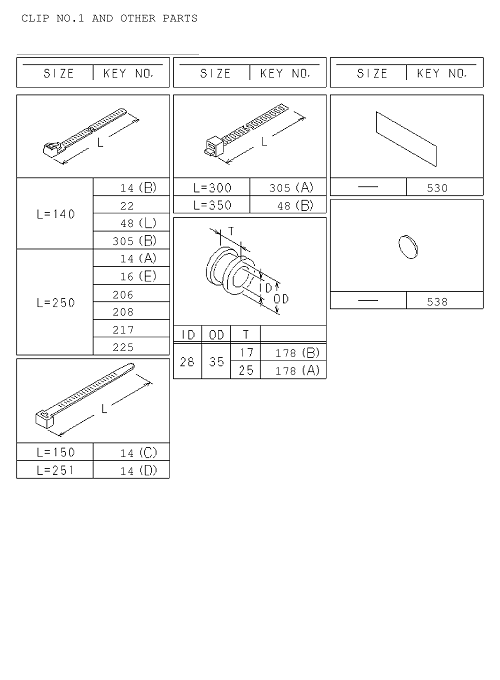

| 14 | I5-09707 030-1 | CLIP; BAND,HARNE S S | 2 | 1111- | A | (A) L=250 IDN | ||
| 16 | I1-09700 862-0 | CLIP; HARNESS | 1 | 1111- | A | (D) ID=24.5 H=23 L=25 | ||
| 14 | I5-09707 031-1 | CLIP; BAND,HARNE S S | 6 | 1111- | A | (B) L=140 IDN | ||
| 524 | I0-91180 110-0 | NUT; HARNESS | 1 | 1111- | A | (B) M10 FLANGE | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 1111- | A | (E) ID=12 B=13 ID=6.5 | ||
| 14 | I5-09707 031-1 | CLIP; BAND,HARNE S S | 2 | 1111- | A | (B) L=140 IDN | ||
| 178 | I1-09332 011-1 | GROMMET; HARNESS | 3 | 1111- | A | WHEEL BASE 6 00 0MM(60W) (A) ID=28 OD=35 T=25 | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 1111- | A | (D) M8X12 FLANGE | ||
| 59 | I8-97616 305-0 | BRACKET; FRAME HARNESS | 1 | 1111- | A | (B) | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 1111- | A | M5X7 W/PL WASHER&TORQUES | ||
| 386 | I8-97086 825-0 | BOLT; GRAND HARNESS | 2 | 1111- | A | M8X2 0 W/LK&PL WASHER IDN | ||
| 150 | I0-28650 830-0 | BOLT; CLIP | 1 | 1111- | A | (A) M8X3 0 FLANGE | ||
| 7 | I8-98049 798-1 | BRACKET; CONNECTOR | 1 | 1111- | A | |||
| 48 | I5-09707 031-1 | CLIP; FRAME HARNESS | 2 | 1111- | A | (L) L=140 | ||
| 305 | I1-09707 001-1 | CLIP; ENG HARNESS | 1 | 1111- | A | (A) L=300 | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1111- | A | M8 FLANGE | ||
| 312 | I1-47475 304-0 | BRACKET; CLIP HARNESS | 1 | 1111- | A | (A) L=55 | ||
| 515 | I0-91180 108-0 | NUT; BRKT | 1 | 1111- | A | M8 FLANGE | ||
| 313 | I0-28650 830-0 | BOLT; BRKT | 1 | 1111- | A | (A) M8X3 0 FLANGE | ||
| 252 | I1-09709 179-0 | CLIP; CONNECTOR FIX | 1 | 1111- | A | WHEEL BASE 42 0 0MM(42W),WHEEL BASE 5000MM(50W) (A) OD=9 H=9.5 | ||
| 14 | I8-97355 273-0 | CLIP; BAND,HARNE S S | 1 | 1111- | A | (C) L=150 | ||
| 48 | I1-09709 287-0 | CLIP; FRAME HARNESS | 4 | 1111- | A | WHEEL BASE 42 0 0MM(42W),WHEEL BASE 5000MM(50W) (A) ID=5-12 L=18 | ||
| 38 | I0-28650 830-0 | BOLT; CLIP,HARNESS | 2 | 1111- | A | (D) M8X3 0 FLANGE | ||
| 48 | I1-09700 858-0 | CLIP; FRAME HARNESS | 2 | 1111- | A | (H) ID=28 L=78 | ||
| 16 | I8-97229 357-0 | CLIP; HARNESS | 2 | 1111- | A | (G) L=40.6 | ||
| 171 | I8-97101 436-0 | CLIP; STARTER HARNESS | 1 | 1111- | A | (A) | ||
| 16 | I8-98052 679-0 | CLIP; HARNESS | 2 | 1111- | A | (C) | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 1 | 1111- | A | (G) ID=15 L=65 | ||
| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 1 | 1111-1112 | A | (A) ID=18 H=23 L=28 | ||
| 14 | I8-97619 917-0 | CLIP; BAND,HARNE S S | 1 | 1111- | A | (D) L=251 | ||
| 48 | I1-09700 466-0 | CLIP; FRAME HARNESS | 16 | 1111- | A | WHEEL BASE 5000MM(50W) (G) ID=15 L=65 | ||
| 225 | I5-09707 030-1 | CLIP; AIR TANK HARNESS | 2 | 1111- | A | L=250 IDN | ||
| 38 | I0-28650 825-0 | BOLT; CLIP,HARNESS | 1 | 1111- | A | (B) M8X25 FLANGE IDN | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 1111- | A | M6X16 W/LK&PL WASHER | ||
| 16 | I1-09700 905-0 | CLIP; HARNESS | 4 | 1111- | A | (H) ID=34.5 H=23 L=27.5 | ||
| 38 | I0-28650 820-0 | BOLT; CLIP,HARNESS | 2 | 1111- | A | (A) M8X2 0 FLANGE IDN | ||
| 48 | I1-09709 291-0 | CLIP; FRAME HARNESS | 2 | 1111- | A | WHEEL BASE 42 0 0MM(42W),WHEEL BASE 5000MM(50W) (C) ID=13-18 L=18 | ||
| 483 | I1-09701 158-0 | CLIP; ENG HARNESS | 1 | 1111- | A | (D) ID=16 L=50 | ||
| 139 | I0-28650 820-0 | BOLT; BRKT | 1 | 1111- | A | (D) M8X2 0 FLANGE |
