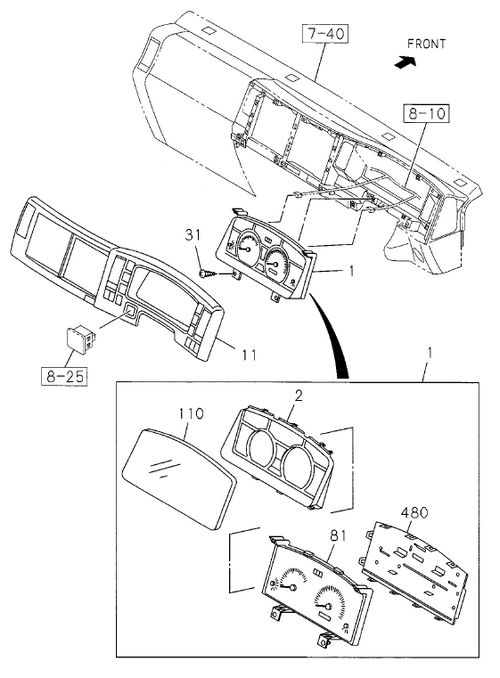

8-21 | METER ASM
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 2 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 1111- | A | |||
| 81 | I8-98079 673-0 | METER SUB ASM | 1 | 1111- | A | |||
| 31 | I0-72180 516-0 | SCREW; METER,INST PANEL | 4 | 1111- | A | M5X16 TAPPING | ||
| 2 | I8-98054 638-0 | PANEL; CLUSTER | 1 | 1111- | A | |||
| 1 | I8-98064 903-7 | METER COMPL; CLUSTER | 1 | 1111- | A | |||
| 480 | I8-98054 433-0 | COVER; METER | 1 | 1111- | A | |||
| 11 | I8-97405 350-6 | CLUSTER ASM; METER | 1 | 1111- | A | DARK GRAY IDN | ||
| 110 | I8-98054 431-0 | GLASS; CLUSTER METER | 1 | 1111- | A |
