8-28 | CHASSIS ELECTRICAL
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

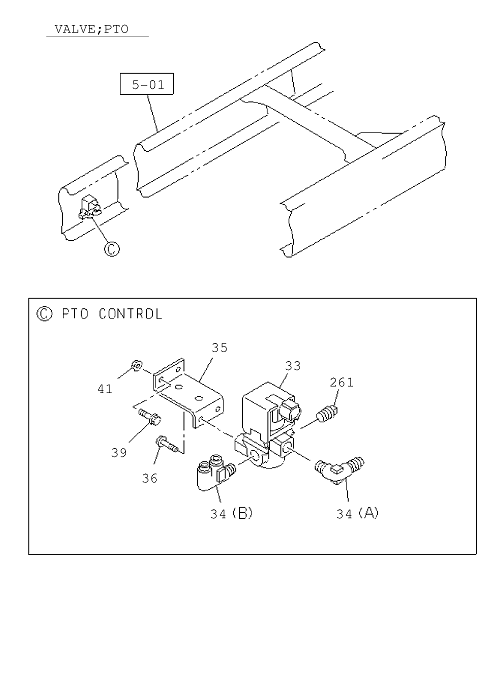

| 34 | I8-98179 708-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1111- | A | PTO CONTROL<SV6> (B) | ||
| 34 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 1111- | A | PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW | ||

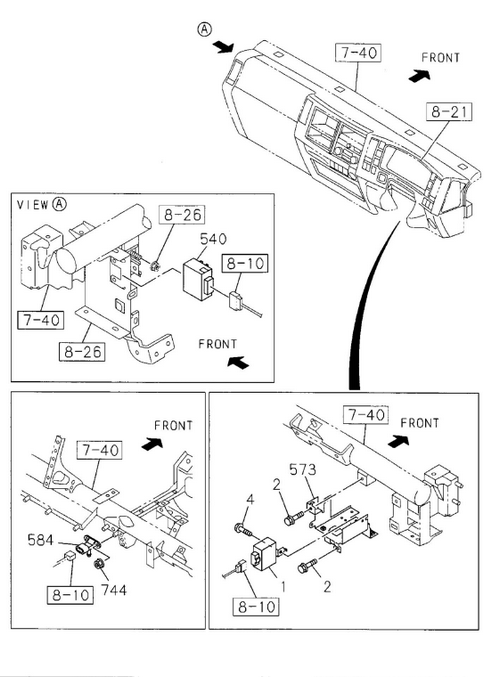

| 573 | I8-98231 462-0 | C | BRACKET; FLASHER UNIT | 1 | 1111- | A | ||
| 36 | I0-28650 820-0 | BOLT; MAG VLV,PTO CONT | 2 | 1111- | A | PTO CONTROL<SV6> M8X2 0 FLANGE IDN | ||

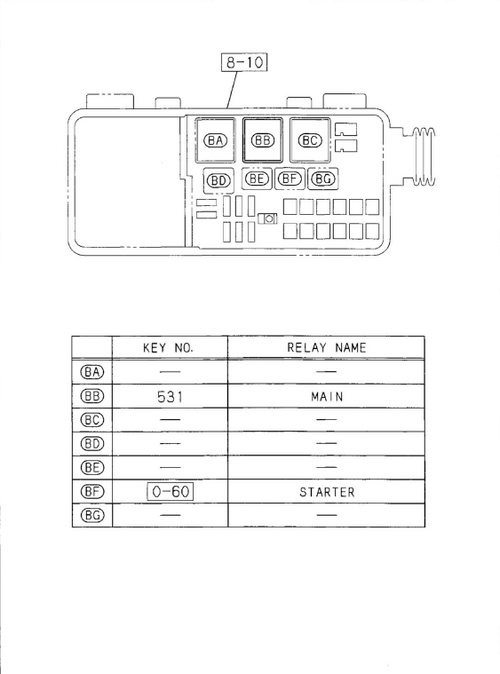

| 531 | I8-98259 779-0 | C | RELAY; MAIN | 1 | 1111- | A | 24V 30A JIDECO | |
| 50 | I8-97613 300-2 | BRACKET; HORN | 1 | 1111- | A | |||
| 2 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 1111- | A | M6X16 FLANGE | ||
| 35 | I1-47471 374-1 | C | BRACKET; MAG VLV,PTO CONT | 1 | 1111- | A | PTO CONTROL<SV6> | |
| 45 | I7-43600 341-A | HORN; LOW NOTE | 1 | 1111- | A | IDN | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1111- | A | |||
| 1 | I8-98025 533-A | UNIT; FLASHER | 1 | 1111- | A | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 1309- | A | |||
| 45 | I7-43600 341-A | C | HORN; LOW NOTE | 1 | 1111- | A | IDN | |
| 41 | I0-91180 108-0 | NUT; BRKT,MAG VLV | 2 | 1111- | A | PTO CONTROL<SV6> M8 FLANGE | ||
| 39 | I0-28650 835-0 | BOLT; BRKT, MAG VLV | 2 | 1111- | A | PTO CONTROL<SV6> M8X3 5 FLANGE | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 1111- | A | |||

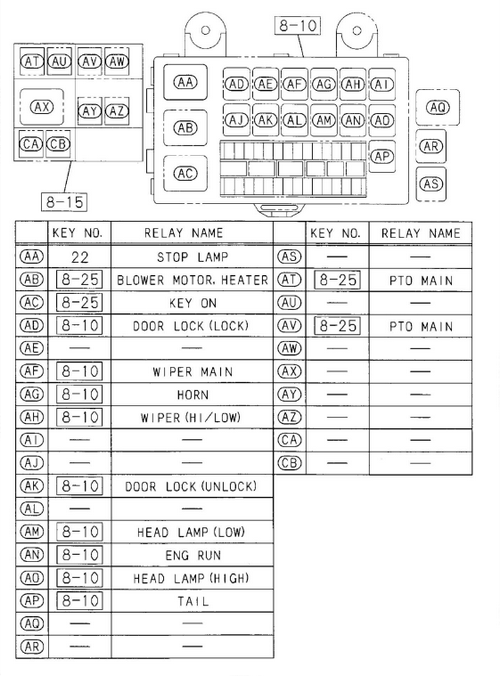

| 22 | I8-97262 933-0 | RELAY; STOP LAMP | 1 | 1111- | A | 24V 12.5A MATSUSHITA | ||
| 33 | I1-82563 871-2 | VALVE; MAG,PTO CONT | 1 | 1111- | A | PTO CONTROL<SV6> | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 1111- | A | M6 FLANGE | ||
| 35 | I1-47471 374-1 | BRACKET; MAG VLV,PTO CONT | 1 | 1111- | A | PTO CONTROL<SV6> | ||
| 531 | I8-98259 779-0 | RELAY; MAIN | 1 | 1111- | A | 24V 30A JIDECO | ||
| 4 | I0-28650 616-0 | SCREW; FLASHER UNIT | 1 | 1111- | A | BOLT M6X16 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 1111- | A | PTO CONTROL<SV6> PT1/4 | ||
| 51 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 1111- | A | M8X2 0 W/LK&PL WASHER IDN | ||
| 573 | I8-98231 462-0 | BRACKET; FLASHER UNIT | 1 | 1111- | A |
