8-50 | AIR CONDITIONING SYSTEM; FRONT
GIGA
GIGA FTR
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

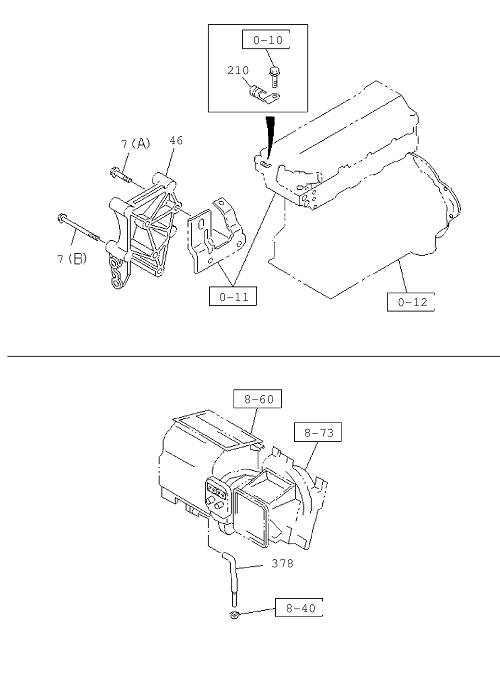

| 7 | I0-28151 080-0 | BOLT; BRKT | 2 | 1111- | A | (B) M10X8 0 FLANGE | ||
| 378 | I8-98041 428-0 | HOSE; DRAIN,EVAPORATOR | 1 | 1111- | A | VENTILATOR & DEFROSTER WO/HEATER<SAZ> | ||
| 46 | I8-98101 364-0 | BRACKET; CMPR | 1 | 1111- | A | |||

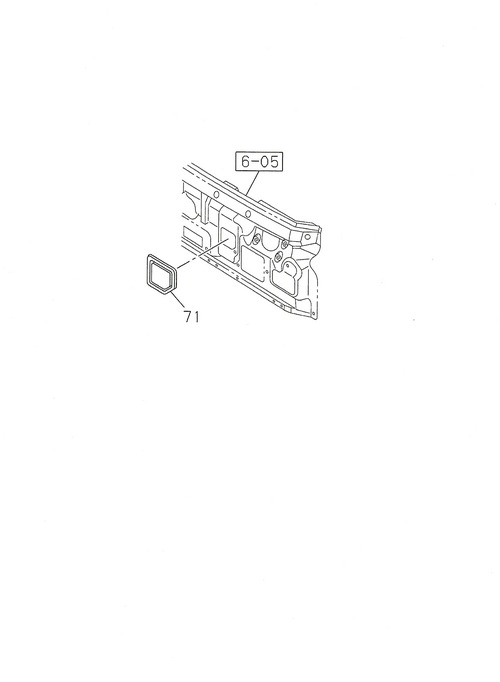

| 71 | I8-98017 234-1 | COVER; EVAP,A/C | 1 | 1304- | A | IDN | ||
| 7 | I0-28051 045-0 | BOLT; BRKT | 2 | 1111- | A | (A) M10X45 FLANGE | ||
| 210 | I8-97367 984-1 | CLIP; HARNESS | 1 | 1111- | A | ID=12 IDN | ||
| 7 | I0-28051 045-0 | BOLT; BRKT | 2 | 1111- | A | (A) M10X45 FLANGE |
