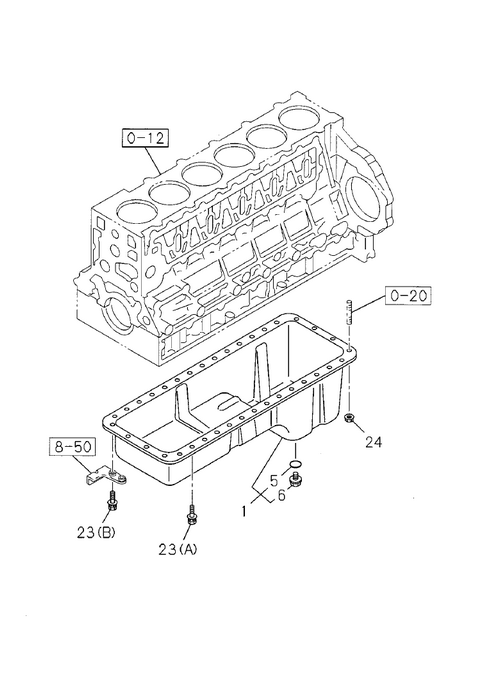

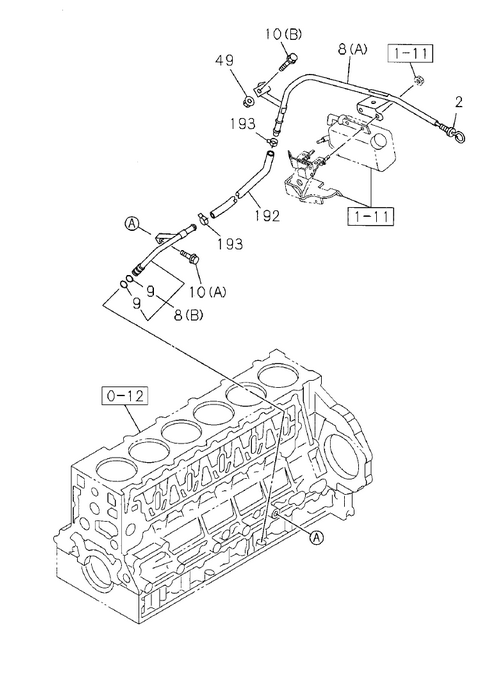

0-13 | OIL PAN AND LEVEL GAUGE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 6 | I9-09662 012-0 | PLUG; OIL DRAIN | 1 | 1108- | A | |||
| 192 | I8-98054 844-A | HOSE; GUIDE TUBE | 1 | 1108- | A | L=463 | ||
| 2 | I8-98092 600-0 | GAUGE; OIL LEVEL | 1 | 1108-1902 | A | |||
| 8 | I8-98084 773-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1108- | A | (A) | ||
| 24 | I0-91180 108-0 | NUT; OIL PAN | 4 | 1108- | A | M8 FLANGE | ||
| 49 | I0-91180 108-0 | NUT; GUIDE TUBE | 1 | 1108- | A | M8 FLANGE | ||
| 2 | I8-97519 383-0 | GAUGE; OIL LEVEL | 1 | 1902- | A | |||
| 23 | I8-97329 626-0 | BOLT; OIL PAN | 2 | 1108- | A | (B) M8X2 8 FLANGE | ||
| 193 | I1-09707 158-0 | CLIP; HOSE,GUIDE TUBE | 2 | 1108- | A | ID=17 | ||
| 5 | I1-09623 057-0 | GASKET; PLUG,OIL DRAIN | 1 | 1108- | A | ID=24.4 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 8 | I8-98063 554-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 1108- | A | (B) | ||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1108- | A | ID=11 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 1 | I8-98179 005-0 | PAN ASM; OIL | 1 | 1108- | A | |||
| 10 | I0-28650 820-0 | BOLT; GUIDE TUBE | 1 | 1108- | A | (B) M8X2 0 FLANGE IDN | ||
| 10 | I0-28151 035-0 | BOLT; GUIDE TUBE | 1 | 1108- | A | (A) M10X3 5 FLANGE | ||
| 192 | I8-98054 844-A | HOSE; GUIDE TUBE | 1 | 1108- | A | L=463 | ||
| 9 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 1108- | A | ID=11 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 23 | I0-28080 818-0 | BOLT; OIL PAN | 28 | 1108- | A | (A) M8X18 FLANGE |
