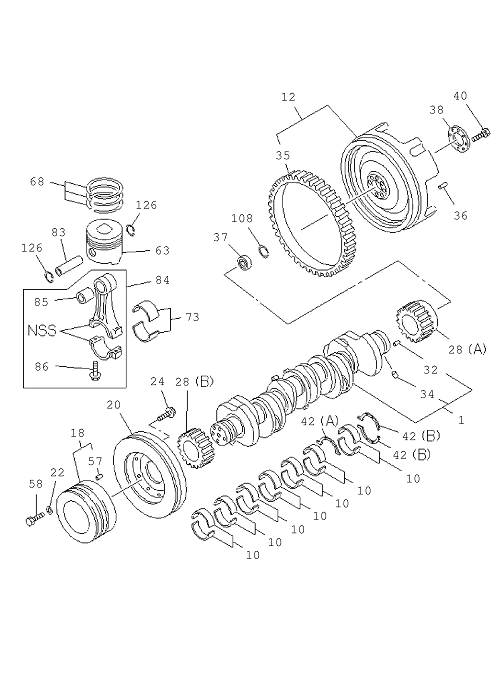

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 24 | I0-28151 016-0 | BOLT; DAMPER | 6 | 1108- | A | M10X16 FLANGE | ||
| 85 | I8-94391 794-1 | BUSHING; CONNROD | 6 | 1108- | A | |||
| 42 | I8-97386 549-0 | WASHER; THRUST,CR/SHF | 2 | 1108- | A | (B) | ||
| 84 | I8-98018 425-3 | ROD ASM; CONN | 6 | 1108- | A | |||
| 36 | I9-08151 020-0 | PIN; FLYWHEEL | 2 | 1108- | A | OD=10 L=22 | ||
| 40 | I8-94393 070-2 | BOLT; FLYWHEEL | 8 | 1108- | A | M16X62 | ||
| 34 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 1108- | A | OD=5 L=6 | ||
| 68 | I 8-9804 25-A | RING SET; PISTON,STANDARD | 6 | 1108- | A | |||
| 84 | I8-98018 425-3 | ROD ASM; CONN | 6 | 1108- | A | |||
| 20 | I8-97613 696-1 | DAMPER; CR/SHF | 1 | 1108- | A | |||
| 28 | I8-94396 954-2 | GEAR; CR/SHF | 1 | 1108- | A | (B) Z=41 | ||
| 7 | I1-87310 741-0 | METAL KIT; CRANKSHAFT,STANDARD | 1 | 1108- | A | |||
| 10 | I8-97372 076-1 | METAL SET; CRANKSHAFT,STANDARD | 7 | 1108- | A | BLUE | ||
| 28 | I8-94392 255-1 | GEAR; CR/SHF | 1 | 1108- | A | (A) Z=42 | ||
| 22 | I9-09851 935-0 | PLATE; PULLEY | 4 | 1108- | A | ID=17 OD=3 0 | ||
| 63 | I8-98041 141-2 | PISTON | 6 | 1108- | A | NON GRADE | ||
| 36 | I9-08151 020-0 | PIN; FLYWHEEL | 2 | 1108- | A | OD=10 L=22 | ||
| 57 | I8-94391 156-0 | PIN; PULLEY | 1 | 1108- | A | OD=8 L=16 | ||
| 83 | I8-98018 863-1 | PIN; PISTON | 6 | 1108- | A | |||
| 73 | I8-97616 359-0 | METAL SET; CONN ROD,STANDARD | 6 | 1108- | A | YELLOW | ||
| 7 | I1-87310 742-0 | METAL KIT; CRANKSHAFT,STANDARD | 1 | 1108- | A | |||
| 18 | I8-97606 944-0 | PULLEY; CR/SHF | 1 | 1108- | A | 3-GROOVE | ||
| 35 | I8-94396 784-A | GEAR; RING | 1 | 1108- | A | Z=140 | ||
| 58 | I0-20951 650-0 | BOLT; CR/SHF PULLEY | 4 | 1108- | A | M16X50 | ||
| 35 | I8-94396 784-A | GEAR; RING | 1 | 1108- | A | Z=140 | ||
| 37 | I8-94392 288-0 | BEARING; PILOT,TOP GEAR SHAFT | 1 | 1108- | A | |||
| 1 | I8-97603 004-0 | CRANKSHAFT | 1 | 1108- | A | |||
| 63 | I8-98041 141-2 | PISTON | 6 | 1108- | A | NON GRADE | ||
| 32 | I9-08150 816-0 | PIN; FLYWHEEL | 2 | 1108- | A | OD=8 L=16 | ||
| 12 | I8-97520 862-A | FLYWHEEL | 1 | 1108- | A | |||
| 86 | I8-98091 141-0 | BOLT; CONNROD | 12 | 1108- | A | M13X5 7 FLANGE | ||
| 10 | I8-97372 077-1 | METAL SET; CRANKSHAFT,STANDARD | 7 | 1108- | A | BLACK | ||
| 68 | I8-98040 125-0 | RING SET; PISTON,STANDARD | 6 | 1108- | A | |||
| 126 | I8-98006 828-0 | RING; SNAP,PISTON PIN | 12 | 1108- | A | OD=43.7 | ||
| 38 | I8-94397 496-A | WASHER; FLYWHEEL | 1 | 1108- | A | ID=55 OD=110 | ||
| 10 | I8-97372 078-1 | METAL SET; CRANKSHAFT,STANDARD | 7 | 1108- | A | BROWN | ||
| 42 | I8-97386 548-0 | WASHER; THRUST,CR/SHF | 1 | 1108- | A | (A) | ||
| 73 | I8-97616 358-0 | METAL SET; CONN ROD,STANDARD | 6 | 1108- | A | GREEN | ||
| 12 | I8-97520 862-A | FLYWHEEL | 1 | 1108- | A | |||
| 7 | I1-87310 743-0 | METAL KIT; CRANKSHAFT,STANDARD | 1 | 1108- | A | |||
| 108 | I9-09180 155-0 | RING; SNAP,BRG SET | 1 | 1108- | A | OD=5 9.2 |
