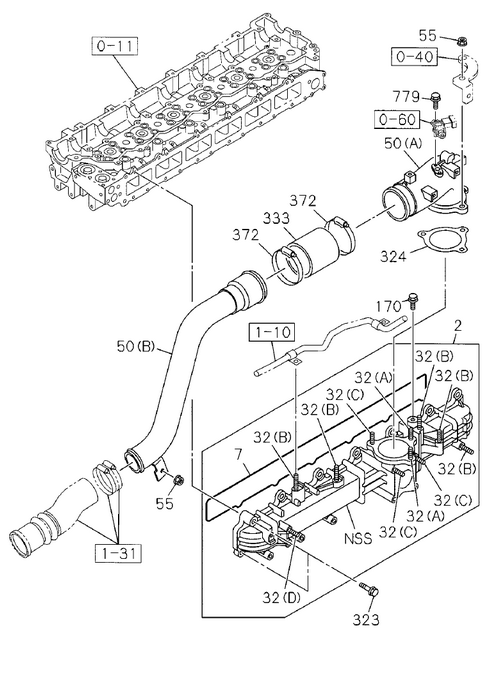

0-25 | INLET MANIFOLD
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 32 | I0-41010 630-0 | STUD; INL PIPE | 5 | 1108- | A | (B) M6X30 L=38 | ||
| 333 | I8-97611 306-0 | HOSE; RUBBER,INL PIPE | 1 | 1108- | A | |||
| 324 | I8-97601 777-0 | GASKET; INL PIPE TO INL CVR | 1 | 1108- | A | |||
| 779 | I8-97316 615-0 | BOLT; SENSOR | 2 | 1108- | A | M4X10 W/PL WASHER | ||
| 50 | I8-98061 804-1 | PIPE; INL | 1 | 1108- | A | (A) | ||
| 323 | I0-28650 825-0 | BOLT; DUCT | 6 | 1108- | A | M8X2 5 FLANGE IDN | ||
| 7 | I8-94390 775-0 | GASKET; INL MANIF TO HD | 1 | 1108- | A | |||
| 32 | I0-41010 828-0 | STUD; INL PIPE | 3 | 1108- | A | (C) M8X28 L=40 | ||
| 323 | I0-28050 850-0 | BOLT; DUCT | 6 | 1108- | A | M8X5 0 FLANGE | ||
| 32 | I0-44011 030-0 | STUD; INL PIPE | 1 | 1108- | A | (D) M10X30 L=45 | ||
| 32 | I0-41010 840-0 | STUD; INL PIPE | 2 | 1108- | A | (A) M8X40 L=52 | ||
| 55 | I0-91180 108-0 | NUT; INL PIPE | 4 | 1108- | A | M8 FLANGE | ||
| 2 | I8-98061 091-0 | COVER; INL | 1 | 1108- | A | |||
| 170 | I0-28050 835-0 | BOLT; BRKT | 1 | 1108- | A | M8X3 5 FLANGE | ||
| 372 | I1-09707 141-0 | CLIP; HOSE | 2 | 1108- | A | ID=77-99 | ||
| 50 | I8-97607 412-2 | PIPE; INL | 1 | 1108- | A | (B) | ||
| 323 | I8-97229 317-1 | BOLT; DUCT | 2 | 1108- | A | M8X4 8 FLANGE |
