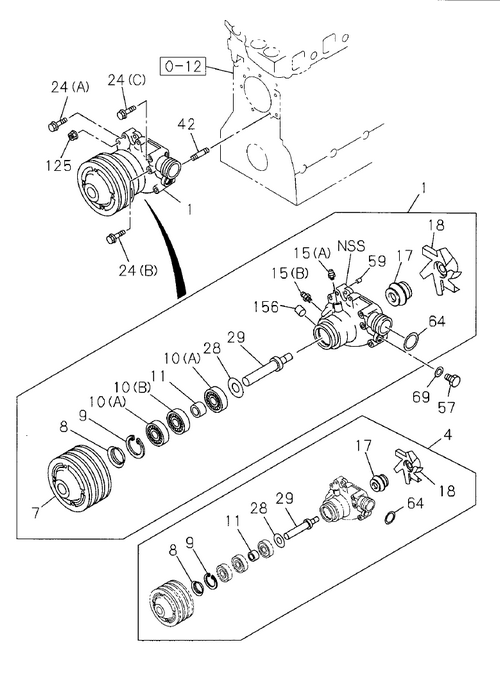

0-30 | WATER PUMP AND CORROSION RESISTOR
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 15 | I1-09380 002-0 | NIPPLE; GREASE,WATER PUMP | 1 | 1108- | A | (A) PT1/8 STRAIGHT | ||
| 1 | I1-87310 974-0 | PUMP ASM; WATER,W/GASKET | 1 | 1208- | A | |||
| 4 | I1-87814 607-0 | REPAIR KIT; WATER PUMP | 1 | 1108- | A | |||
| 29 | I8-94396 130-1 | SHAFT; WATER PUMP | 1 | 1108- | A | |||
| 28 | I8-94397 097-0 | WASHER; WATER PUMP | 1 | 1108- | A | ID=25.5 OD=50 | ||
| 17 | I8-98221 159-0 | SEAL UNIT; WATER PUMP | 1 | 1208- | A | |||
| 1 | I1-87310 974-0 | PUMP ASM; WATER,W/GASKET | 1 | 1108- | A | |||
| 17 | I8-94392 090-0 | SEAL UNIT; WATER PUMP | 1 | 1108- | A | |||
| 57 | I9-99202 320-0 | PLUG; HTR,WATER PUMP | 1 | 1108- | A | M2 0 | ||
| 125 | I0-91180 108-0 | NUT; WATER PUMP | 4 | 1108- | A | M8 FLANGE | ||
| 69 | I9-09571 420-0 | GASKET; PLUG,HTR | 1 | 1108- | A | ID=20 . 5 OD=28.0 | ||
| 1 | I1-87310 974-0 | PUMP ASM; WATER,W/GASKET | 1 | 1208- | A | |||
| 24 | I8-94397 359-1 | BOLT; WATER PUMP | 1 | 1108- | A | (C) M10X85 FLANGE | ||
| 4 | I1-87814 607-0 | REPAIR KIT; WATER PUMP | 1 | 1208- | A | |||
| 42 | I0-40110 830-0 | STUD; WATER PUMP | 1 | 1108- | A | M8X30 L=46 | ||
| 59 | I1-13119 003-0 | DOWEL; WATER PUMP | 2 | 1108- | A | OD=12 L=9 | ||
| 10 | I8-94391 298-0 | BEARING; WATER PUMP | 2 | 1108- | A | (A) | ||
| 7 | I8-97616 657-0 | PULLEY; WATER PUMP | 1 | 1108- | A | |||
| 9 | I9-09180 162-0 | RING; SNAP,WATER PUMP | 1 | 1108- | A | ID=57.9 | ||
| 4 | I1-87814 607-0 | REPAIR KIT; WATER PUMP | 1 | 1208- | A | |||
| 24 | I8-94130 055-1 | BOLT; WATER PUMP | 3 | 1108- | A | (A) M8X58 FLANGE | ||
| 1 | I1-87310 974-0 | PUMP ASM; WATER,W/GASKET | 1 | 1108- | A | |||
| 8 | I8-94399 457-0 | THROWER; DUST,WATER PUMP | 1 | 1108- | A | |||
| 11 | I1-13634 040-0 | SPACER; BRG,WATER PUMP | 1 | 1108- | A | |||
| 24 | I0-28050 880-0 | BOLT; WATER PUMP | 1 | 1108- | A | (B) M8X80 FLANGE | ||
| 18 | I8-94392 922-0 | IMPELLER; WATER PUMP | 1 | 1108- | A | |||
| 15 | I0-90301 410-0 | NIPPLE; GREASE,WATER PUMP | 1 | 1108- | A | (B) PT1/8 STRAIGHT | ||
| 4 | I1-87814 607-0 | REPAIR KIT; WATER PUMP | 1 | 1108- | A | |||
| 10 | I8-94391 299-0 | BEARING; WATER PUMP | 1 | 1108- | A | (B) | ||
| 156 | I1-09600 016-0 | CUP; SEALING | 1 | 1108- | A | OD=25 | ||
| 64 | I1-09623 383-0 | GASKET; WATER PUMP TO DUCT | 1 | 1108- | A | ID=44.7 |
