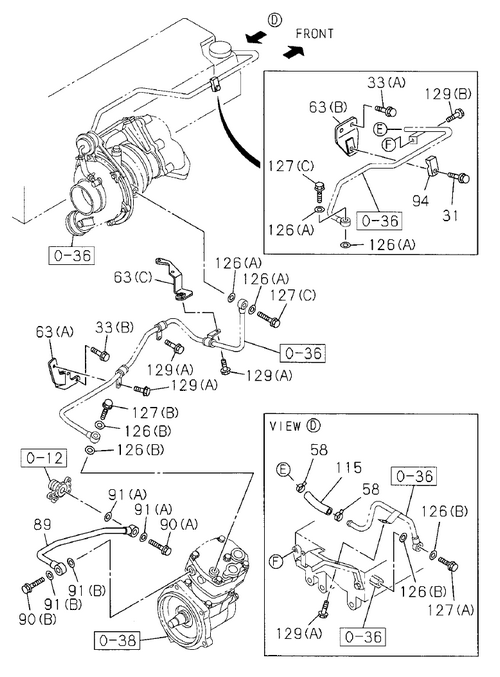

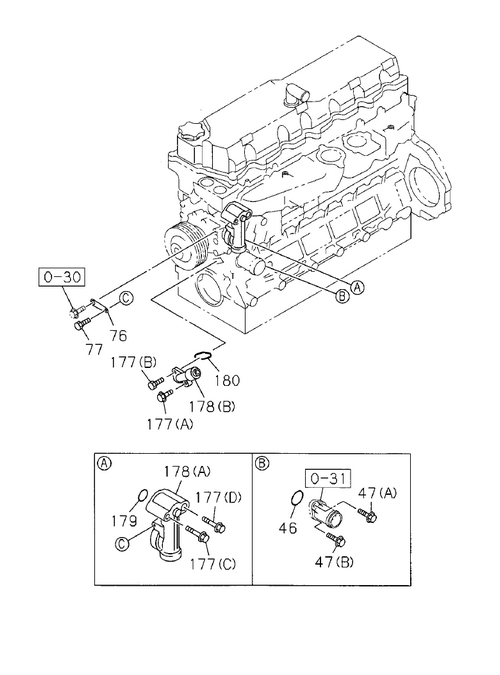

0-32 | WATER PIPING; ENGINE
GIGA
GIGA FVM
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 179 | I8-94396 679-0 | GASKET; WATER DUCT | 1 | 1108- | A | ID=31.2 | ||
| 90 | I8-94383 489-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1108- | A | (B) M16X28 | ||
| 177 | I8-94397 360-1 | BOLT; WATER DUCT | 1 | 1108- | A | (D) M16X75 FLANGE | ||
| 129 | I0-28151 220-0 | BOLT; WATER PIPE TO BRKT | 1 | 1108- | A | (B) M12X2 0 FLANGE | ||
| 126 | I1-09630 086-0 | GASKET; CAP NUT | 4 | 1108- | A | (B) ID=16.2 | ||
| 91 | I1-09630 085-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1108- | A | (A) ID=14 . 2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 127 | I1-09675 193-0 | BOLT; EYE | 2 | 1108- | A | (C) M14X2 7 EYE-BOLT | ||
| 178 | I8-94390 644-0 | DUCT; WATER,BYPASS | 1 | 1108- | A | (B) | ||
| 63 | I8-98074 253-0 | BRACKET; WATER PIPE | 1 | 1108- | A | (A) | ||
| 127 | I8-94383 489-0 | BOLT; EYE | 1 | 1108- | A | (B) M16X28 | ||
| 180 | I8-94396 720-1 | GASKET; WATER DUCT | 1 | 1108- | A | ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 63 | I8-94392 951-0 | BRACKET; WATER PIPE | 1 | 1108- | A | (B) | ||
| 177 | I0-28050 880-0 | BOLT; WATER DUCT | 1 | 1108- | A | (C) M8X80 FLANGE | ||
| 47 | I0-28050 845-0 | BOLT; DUCT,TO OIL COOLER | 1 | 1108- | A | (A) M8X45 FLANGE | ||
| 115 | I0-03561 300-0 | HOSE; RUBBER | 1 | 1108- | A | L=6 0 SERVICED BY L=3000 | ||
| 31 | I0-28650 635-0 | BOLT; CLIP | 1 | 1108- | A | M6X35 FLANGE | ||
| 89 | I8-97611 095-0 | PIPE; WATER,AIR CMPR,IN | 1 | 1108- | A | |||
| 63 | I8-98074 252-0 | BRACKET; WATER PIPE | 1 | 1108- | A | (C) | ||
| 76 | I8-94394 784-0 | BRACKET; WATER DUCT,PUMP | 1 | 1108- | A | |||
| 90 | I1-09675 193-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 1 | 1108- | A | (A) M14X2 7 EYE-BOLT | ||
| 33 | I0-28050 816-0 | BOLT; BRKT | 2 | 1108- | A | (A) M8X16 FLANGE | ||
| 178 | I8-94396 627-3 | DUCT; WATER,BYPASS | 1 | 1108- | A | (A) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) | ||
| 126 | I1-09630 085-0 | GASKET; CAP NUT | 4 | 1108- | A | (A) ID=14 . 2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 177 | I1-09044 072-1 | BOLT; WATER DUCT | 1 | 1108- | A | (A) M8X65 FLANGE | ||
| 127 | I5-09675 028-2 | BOLT; EYE | 1 | 1108- | A | (A) M16X25 | ||
| 129 | I0-28050 816-0 | BOLT; WATER PIPE TO BRKT | 5 | 1108- | A | (A) M8X16 FLANGE | ||
| 94 | I8-94396 860-0 | CLIP; WATER PIPE | 1 | 1108- | A | |||
| 47 | I0-28650 825-0 | BOLT; DUCT,TO OIL COOLER | 1 | 1108- | A | (B) M8X25 FLANGE IDN | ||
| 46 | I8-94396 680-2 | GASKET; WATER DUCT,TO OIL COOLER | 1 | 1108- | A | ID=48.5 OD=53.3 | ||
| 58 | I8-94392 924-0 | CLIP; RUBBER HOSE | 2 | 1108- | A | ID=16 | ||
| 177 | I0-28650 825-0 | BOLT; WATER DUCT | 1 | 1108- | A | (B) M8X25 FLANGE IDN | ||
| 91 | I1-09630 086-0 | GASKET; WATER PIPE,AIR CMPR | 2 | 1108- | A | (B) ID=16.2 | ||
| 33 | I0-28050 820-0 | BOLT; BRKT | 2 | 1108- | A | (B) M8X2 0 FLANGE ALSO INCLUDED IN GASKET SET(ENGINE). | ||
| 77 | I0-28050 850-0 | BOLT; BRKT,WATER DUCT | 1 | 1108- | A | M8X50 FLANGE |
